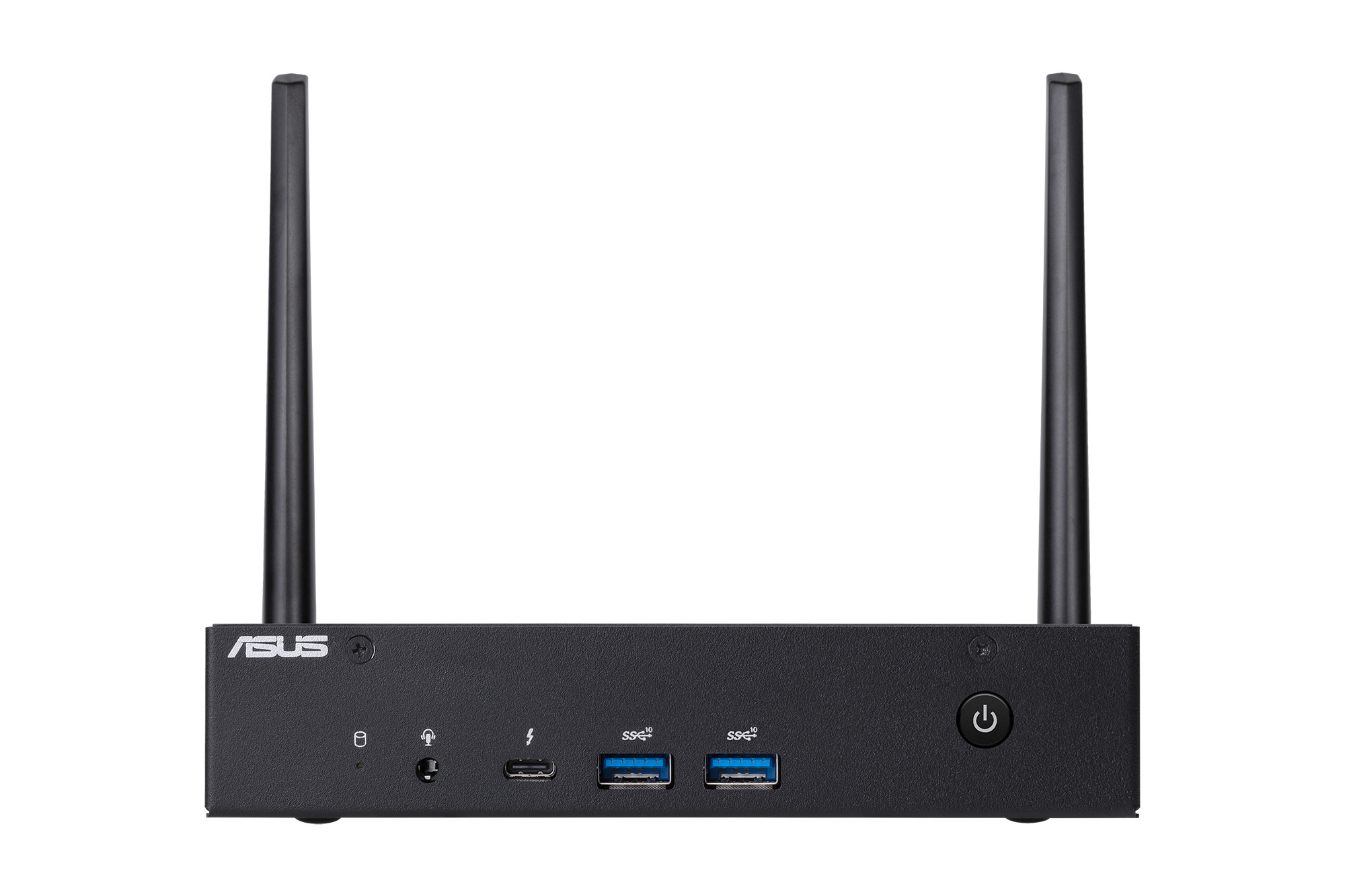

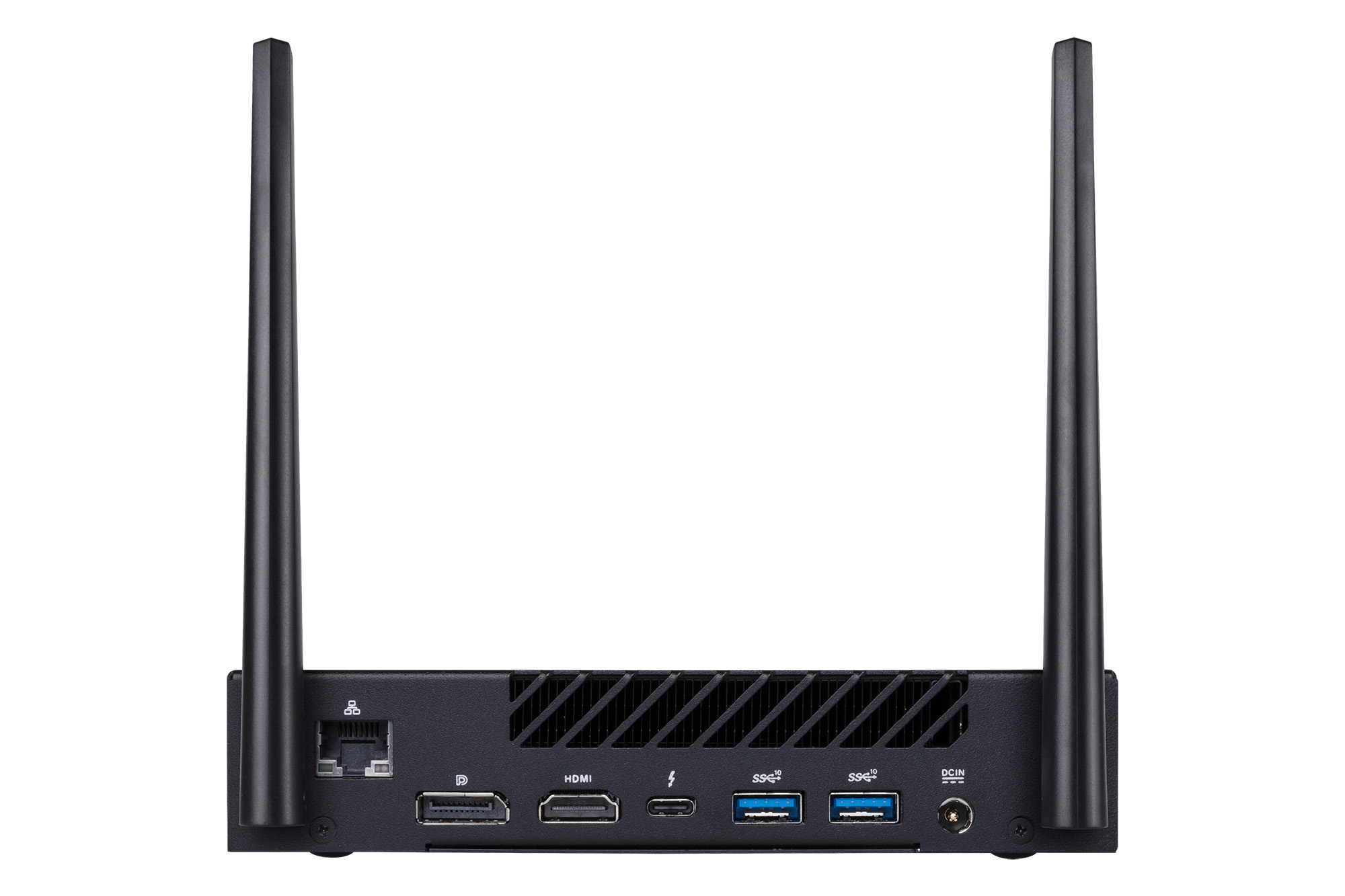

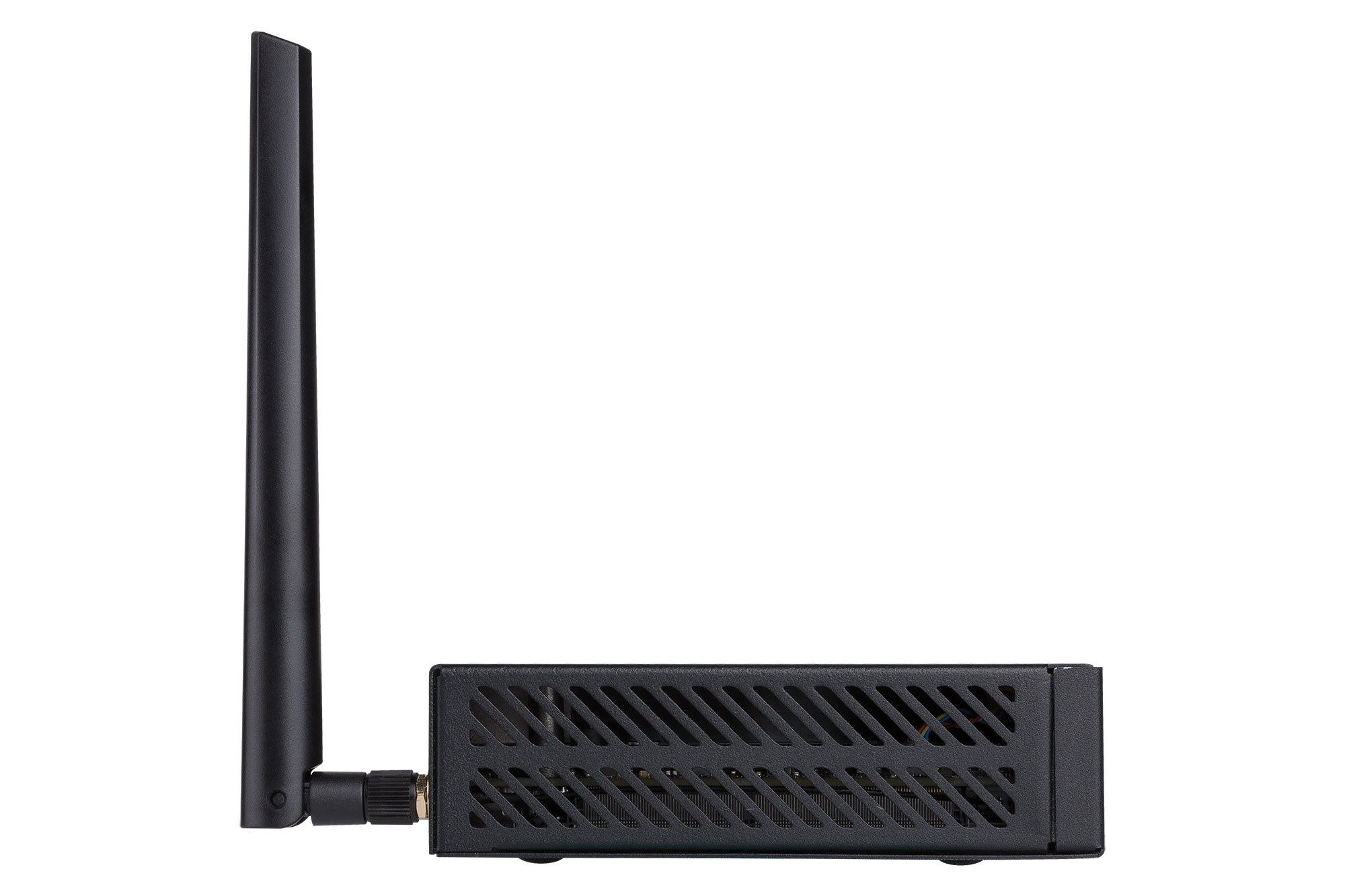

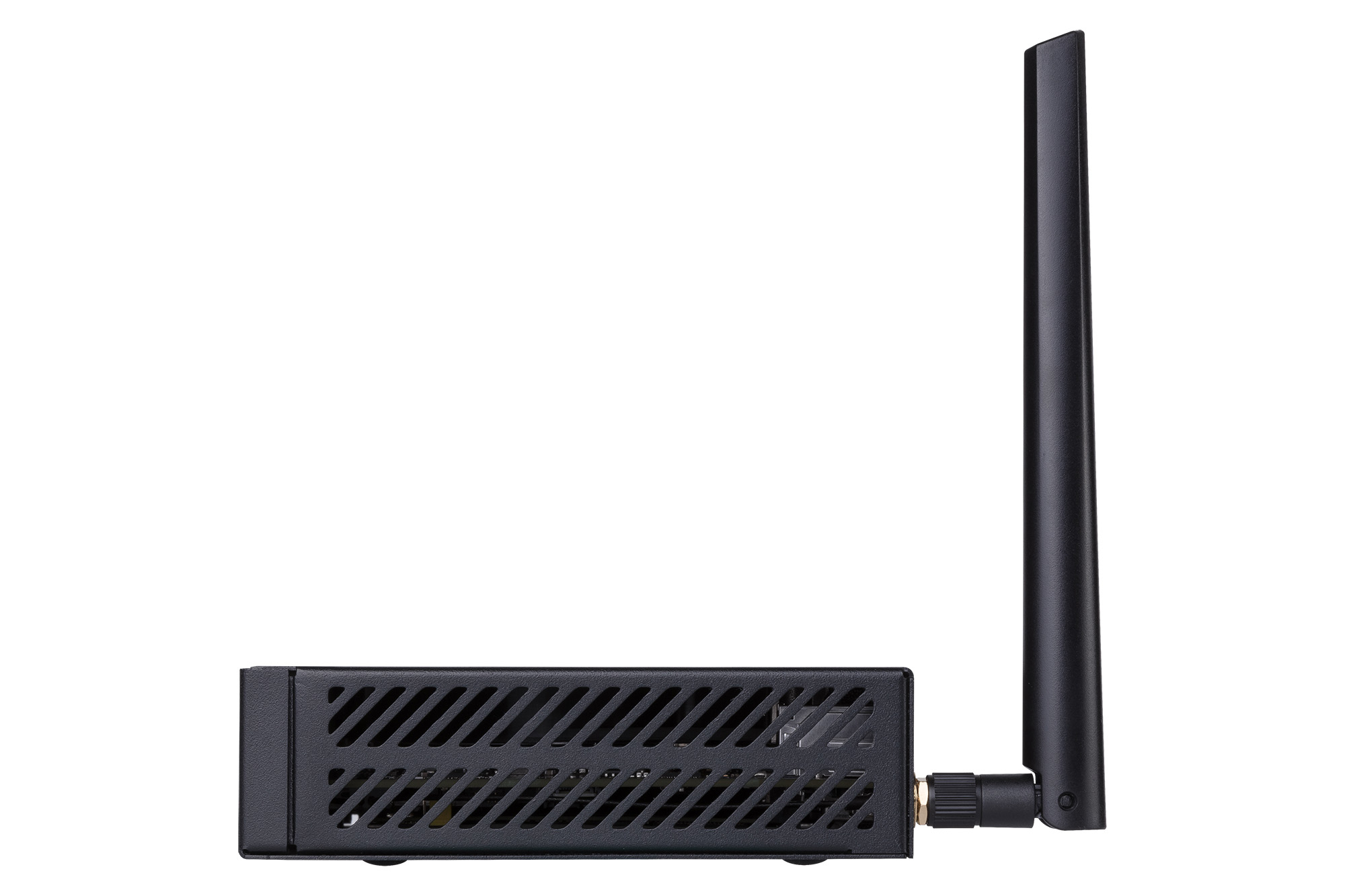

PL63-BB30000XT PC/workstation barebone Black i3-1115G4
Model PL63-BB30000XTEAN 195553554923
57 specifications
- ProcessorIntel® Core™ i3
- SpeedWi-Fi 6 (802.11ax)
- TypeMini PC barebone
- Weight700 g
- ColourBlack
- Built-in processorYes
Overview
- Processor
- Intel® Core™ i3
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- Mini PC barebone
- Weight
- 700 g
- Colour
- Black
- Built-in processor
- Yes
- Brand
- ASUS
- Category
- PC/Workstation Barebones
- Model
- PL63-BB30000XT
- Part number
- PL63-BB30000XT
- EAN / UPC
- 195553554923
- Also known as
- ASUS PL63-BB30000XT PC/workstation barebone Black i3-1115G4
Specifications
57 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i3 |
| Processor generation | 11th gen Intel® Core™ i3 |
| Processor model | i3-1115G4 |
| Processor cores | 2 |
| Processor boost frequency | 4.1 GHz |
| Processor cache | 6 MB |
| CPU configuration (max) | 1 |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory | 64 GB |
| Supported memory types | DDR4-SDRAM |
Storage
| Specification | Value |
|---|---|
| Supported storage drive types | SSD |
| Storage drive sizes supported | M.2 |
| Storage drive interface | PCI Express |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® UHD Graphics |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6 AX201 |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| LAN controller | Intel WGI225V |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| VGA (D-Sub) ports quantity | 0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Combo headphone/mic port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Thunderbolt 4 ports quantity | 2 |
| DC-in jack | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Passive |
| On/off switch | Yes |
| Product type | Mini PC barebone |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Idle States | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI |
Power
| Specification | Value |
|---|---|
| AC adapter output current | 4.74 A |
| AC adapter output voltage | 19 V |
| Power supply | 90 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 166.2 mm |
| Depth | 119.7 mm |
| Height | 33.9 mm |
| Weight | 700 g |
