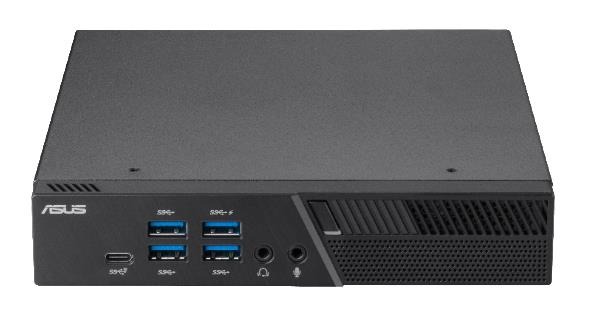

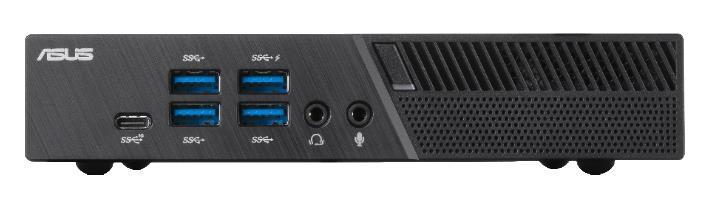

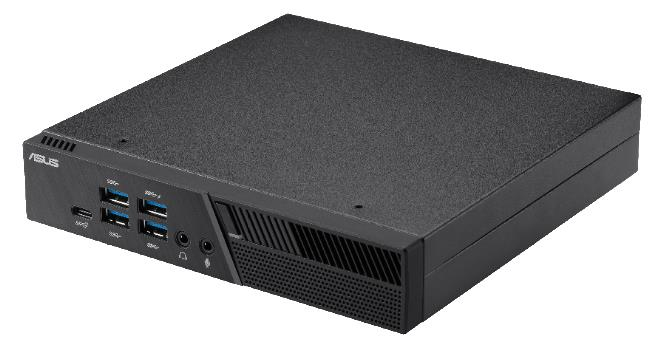

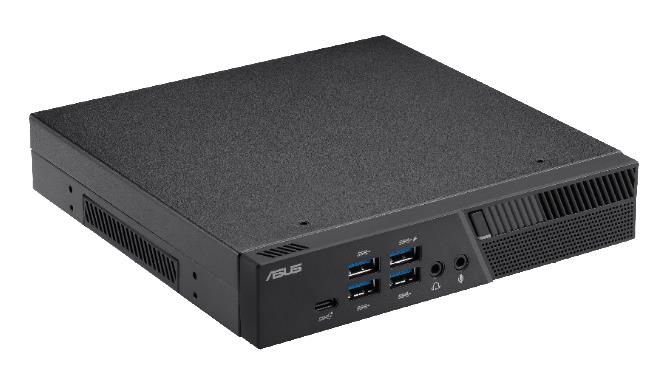

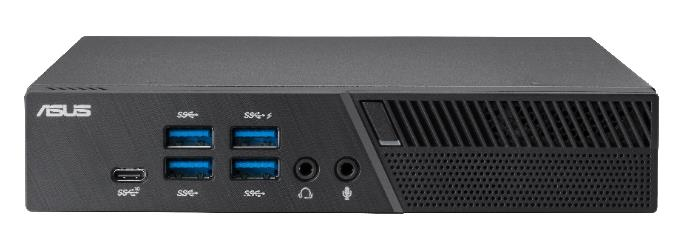

PB50-BBR009MD PC/workstation barebone Mini PC Black 3750H
2.3 GHz
Model PB50-BBR009MDEAN 192876436097
54 specifications
- ProcessorAMD Ryzen™ 7
- GraphicsNot available
- SpeedWi-Fi 5 (802.11ac)
- TypeMini PC
- Weight1.18 kg
- ColourBlack
Overview
- Processor
- AMD Ryzen™ 7
- Graphics
- Not available
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- Mini PC
- Weight
- 1.18 kg
- Colour
- Black
- Brand
- ASUS
- Category
- PC/Workstation Barebones
- Model
- PB50-BBR009MD
- Part number
- PB50-BBR009MD
- EAN / UPC
- 192876436097
- Also known as
- ASUS PB50-BBR009MD PC/workstation barebone Mini PC Black 3750H 2.3 GHz
Specifications
54 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen™ 7 |
| Processor model | 3750H |
| Processor cores | 4 |
| Processor boost frequency | 4 GHz |
| Processor frequency | 2.3 GHz |
| Processor cache | 4 MB |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 32 GB |
Storage
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5,M.2 |
| Storage drive interface | PCI Express, Serial ATA III |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | AMD Radeon RX Vega 10 |
| Discrete graphics card model | Not available |
Performance
| Specification | Value |
|---|---|
| Optical drive type | No |
| Trusted Platform Module (TPM) | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11g, Wi-Fi 5 (802.11ac), 802.11b, Wi-Fi 4 (802.11n) |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
| LAN controller | Intel WGI211AT |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Thunderbolt 3 ports quantity | 0 |
| DC-in jack | Yes |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini PC |
| Product colour | Black |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product type | Mini PC |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Certificates
| Specification | Value |
|---|---|
| Certification | BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI |
Power
| Specification | Value |
|---|---|
| Power supply type | External AC adapter |
| AC adapter output current | 4.74 A |
| AC adapter output voltage | 19 V |
| Power supply | 90 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 175 mm |
| Depth | 175 mm |
| Height | 34.2 mm |
| Weight | 1.18 kg |
Packaging content
| Specification | Value |
|---|---|
| Display included | No |
