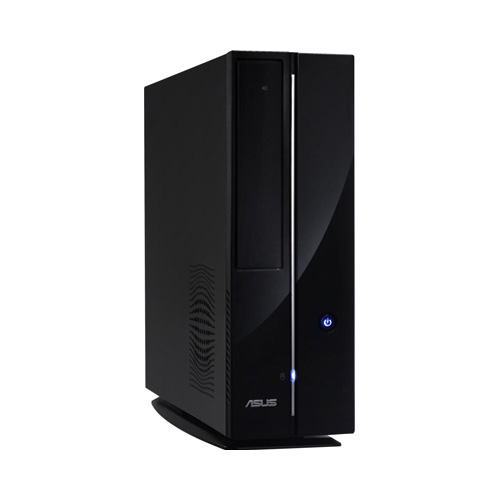

Booksize P4-P5G41 Black Intel® G41 Express LGA 775 (Socket T)
Model P4-P5G41Part no. 90PBBMAD10000AGCEZEAN 4719543675007
35 specifications
- ProcessorIntel
- ColourBlack
- Memory slots typeDIMM
- Number of storage drives supported2
- On-board graphics cardYes
- Motherboard chipsetIntel® G41 Express
Overview
- Processor
- Intel
- Colour
- Black
- Memory slots type
- DIMM
- Number of storage drives supported
- 2
- On-board graphics card
- Yes
- Motherboard chipset
- Intel® G41 Express
- Brand
- ASUS
- Category
- PC/Workstation Barebones
- Model
- P4-P5G41
- Part numbers
- 90PBBMAD10000AGCEZ, 90PBBMAD100000AGCE, 90PBBMAD100000AGCEZ, P4-P5G41
- EAN / UPC
- 4719543675007
- Also known as
- ASUS Booksize P4-P5G41 Black Intel® G41 Express LGA 775 (Socket T)
Specifications
35 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel |
Memory
| Specification | Value |
|---|---|
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 8 GB |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 2 |
| Compatible memory cards | MMC, MS Pro, SD |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® GMA X4500 |
| Maximum graphics card memory | 512 MB |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® G41 Express |
| Processor socket | LGA 775 (Socket T) |
| Supported processor frequency (max) | 1.333 GHz |
| Audio output channels | 7.1 channels |
| Audio system | Realtek ALC1200 |
Network
| Specification | Value |
|---|---|
| Networking features | Realtek RTL8111C Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Firewire (IEEE 1394) ports | 1 |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | No |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows Vista, Windows XP |
Power
| Specification | Value |
|---|---|
| Power supply | 200 W |
Other features
| Specification | Value |
|---|---|
| Number of processors installed | 1 |
| Dimensions (WxDxH) | 91 x 357 x 275 mm |
| Number of SATA connectors | 2 |
| Processor system buses supported | 1066,1333 MHz |
| Drive bays | 1 x 3.5", 1 x 5.25" |
| Expansion slots | 2 x PCI-e x 1 |
