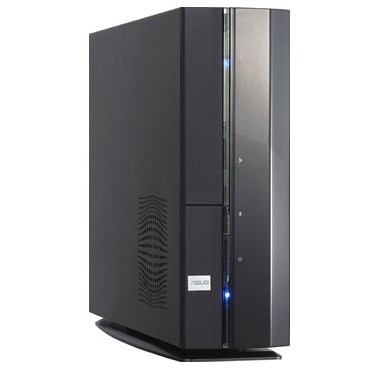

P2-P5945G Dark Blue
Model P2-P5945G Dark BluePart no. P2-P5945G DARKB
33 specifications
- Memory slots typeDIMM
- Compatible memory cardsCF, MMC
- On-board graphics cardYes
- Motherboard chipsetIntel 945G Express
- Networking featuresGigabit Ethernet
- USB 2.0 ports quantity6
Overview
- Memory slots type
- DIMM
- Compatible memory cards
- CF, MMC
- On-board graphics card
- Yes
- Motherboard chipset
- Intel 945G Express
- Networking features
- Gigabit Ethernet
- USB 2.0 ports quantity
- 6
- Brand
- ASUS
- Category
- PC/Workstation Barebones
- Model
- P2-P5945G Dark Blue
- Part number
- P2-P5945G DARKB
- Also known as
- ASUS P2-P5945G Dark Blue Low Profile (Slimline) Intel 945G Express LGA 775 (Socket T)
Specifications
33 specifications in 10 groups
Memory
| Specification | Value |
|---|---|
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 2 GB |
Storage
| Specification | Value |
|---|---|
| Compatible memory cards | CF, MMC |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® GMA 950 |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel 945G Express |
| Processor socket | LGA 775 (Socket T) |
| Supported processor frequency (max) | 3.8 GHz |
| Audio output channels | 7.1 channels |
| Audio system | ADI AD1988B |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Firewire (IEEE 1394) ports | 1 |
| PS/2 ports quantity | 2 |
| S/PDIF out port | Yes |
| Serial ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Low Profile (Slimline) |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 2000/XP/Vista |
Power
| Specification | Value |
|---|---|
| Power supply | 200 W |
Other features
| Specification | Value |
|---|---|
| Number of processors installed | 1 |
| Dimensions (WxDxH) | 91 x 275 x 357 mm |
| Number of Parallel ATA connectors | 1 |
| Number of SATA connectors | 1 |
| Special features | Q-fan Technology Recocery Pro CrashFree BIOS2 Ez Flash BIOS My Logo2 |
| Drive bays | 1x 3.5" / 1x 5.25" |
| Expansion slots | 2x PCI |
