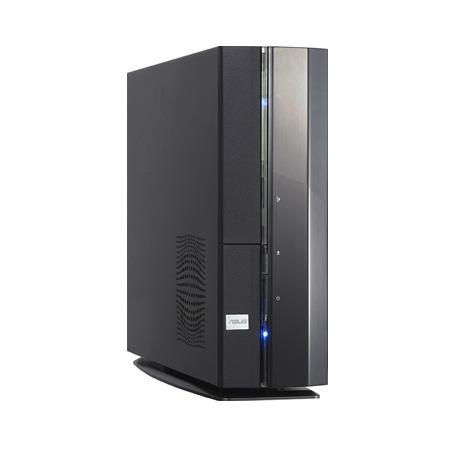

P2-M3A3200 Mini-Tower Black Socket AM2+
Model P2-M3A3200Part no. 90PB8YAD100000AGCEEAN 4719543988022
33 specifications
- ProcessorAMD
- ColourBlack
- Memory slots typeDIMM
- Compatible memory cardsMMC, MS Pro, SD
- On-board graphics cardYes
- Processor socketSocket AM2+
Overview
- Processor
- AMD
- Colour
- Black
- Memory slots type
- DIMM
- Compatible memory cards
- MMC, MS Pro, SD
- On-board graphics card
- Yes
- Processor socket
- Socket AM2+
- Brand
- ASUS
- Category
- PC/Workstation Barebones
- Model
- P2-M3A3200
- Part numbers
- 90PB8YAD100000AGCE, 90PB8YAD100020AGCEZ, P2-M3A3200/NERO, 90PB8YAD100000AGCEZ, P2-M3A3200 BLACK, 90PB8YAD100020AGCE
- EAN / UPC
- 4719543988022, 4719543994412, 5052178705879, 610839988020
- Also known as
- ASUS P2-M3A3200 Mini-Tower Black Socket AM2+
Specifications
33 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor family | AMD |
Memory
| Specification | Value |
|---|---|
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 4 GB |
Storage
| Specification | Value |
|---|---|
| Compatible memory cards | MMC, MS Pro, SD |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | AMD |
| On-board graphics card model | AMD Radeon HD 3200 |
| Maximum graphics card memory | 256 MB |
Performance
| Specification | Value |
|---|---|
| Processor socket | Socket AM2+ |
| Compatible processor series | AMD Phenom |
| Audio output channels | 7.1 channels |
| Audio system | Realtek ALC883 |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit LAN |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Firewire (IEEE 1394) ports | 1 |
| PS/2 ports quantity | 2 |
| S/PDIF out port | Yes |
| Serial ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini-Tower |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows Vista, Windows XP |
Power
| Specification | Value |
|---|---|
| Power supply | 200 W |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 91 x 357 x 275 mm |
| Number of Parallel ATA connectors | 1 |
| Number of SATA connectors | 2 |
| Drive bays | 1 x 3.5", 1 x 5.25" |
| Expansion slots | 2 x PCI-e x 1 |
