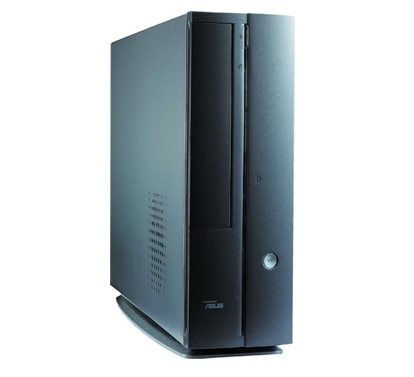

P1-P5945GCX Low Profile (Slimline) Black Intel® 945GC Express LGA 775 (Socket T)
Model P1-P5945GCXPart no. 90PB8VAD100010AGCEZEAN 610839956036
30 specifications
- ProcessorIntel
- ColourBlack
- Memory slots typeDIMM
- Compatible memory cardsCF, MMC, MS Pro, SD
- On-board graphics cardYes
- Motherboard chipsetIntel® 945GC Express
Overview
- Processor
- Intel
- Colour
- Black
- Memory slots type
- DIMM
- Compatible memory cards
- CF, MMC, MS Pro, SD
- On-board graphics card
- Yes
- Motherboard chipset
- Intel® 945GC Express
- Brand
- ASUS
- Category
- PC/Workstation Barebones
- Model
- P1-P5945GCX
- Part number
- 90PB8VAD100010AGCEZ
- EAN / UPC
- 610839956036, 4719543956038
- Also known as
- ASUS P1-P5945GCX Low Profile (Slimline) Black Intel® 945GC Express LGA 775 (Socket T)
Specifications
30 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel |
Memory
| Specification | Value |
|---|---|
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 4 GB |
Storage
| Specification | Value |
|---|---|
| Compatible memory cards | CF, MMC, MS Pro, SD |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® GMA 950 |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® 945GC Express |
| Processor socket | LGA 775 (Socket T) |
| Audio output channels | 7.1 channels |
| Audio system | ADI AD1988B |
Network
| Specification | Value |
|---|---|
| Networking features | 10/100 Mbps |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| DVI port | Yes |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Firewire (IEEE 1394) ports | 1 |
| PS/2 ports quantity | 2 |
| S/PDIF out port | Yes |
| Serial ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Low Profile (Slimline) |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows Vista Windows XP Windows 2000 |
Power
| Specification | Value |
|---|---|
| Power supply | 200 W |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 91 x 357 x 275 mm |
| Number of Parallel ATA connectors | 1 |
| Number of SATA connectors | 1 |
| Processor system buses supported | 800,1066,1333 MHz |
