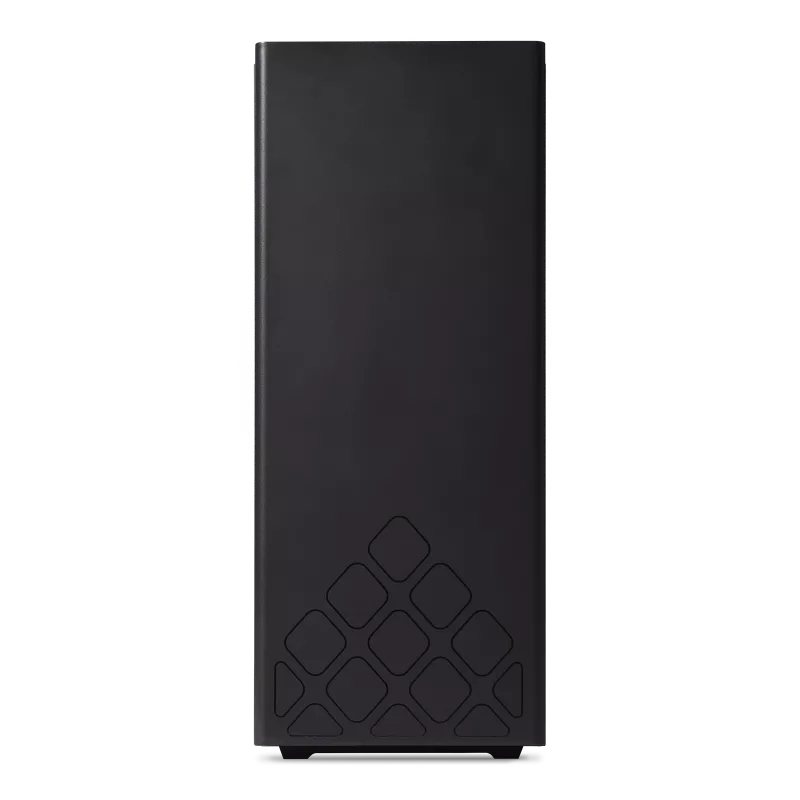

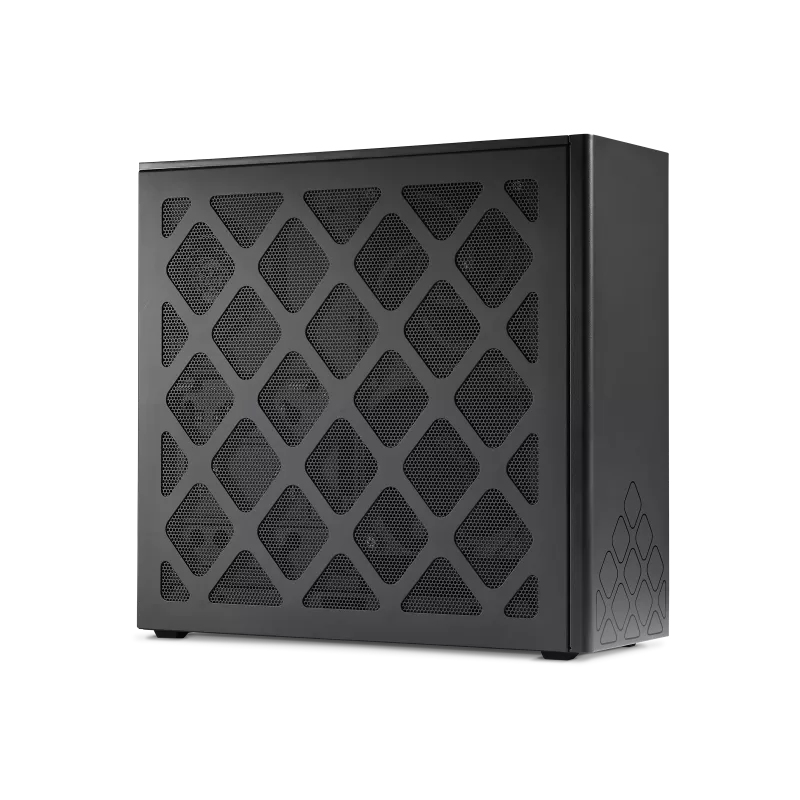

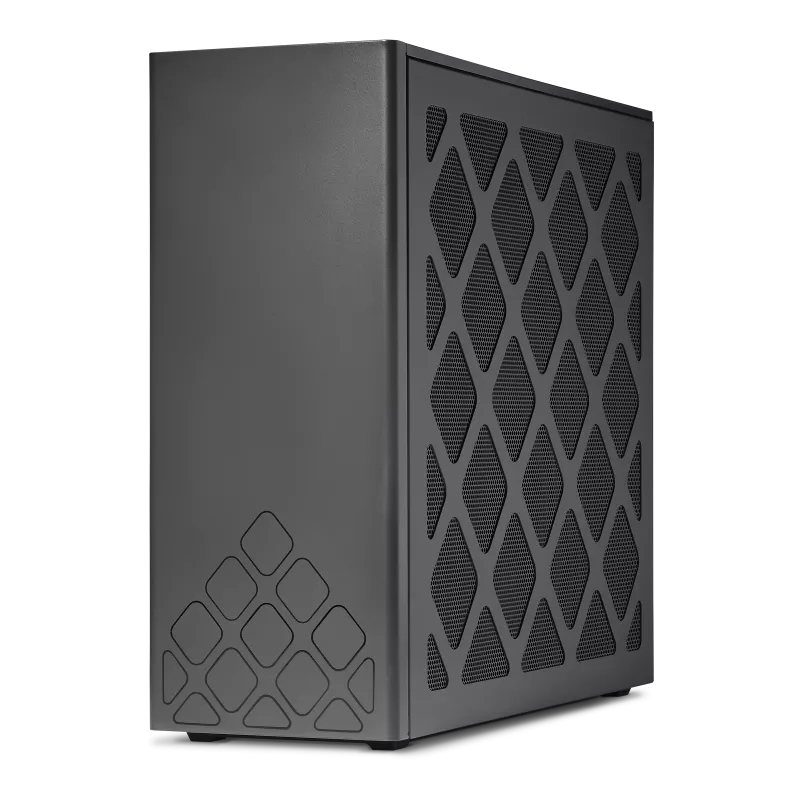

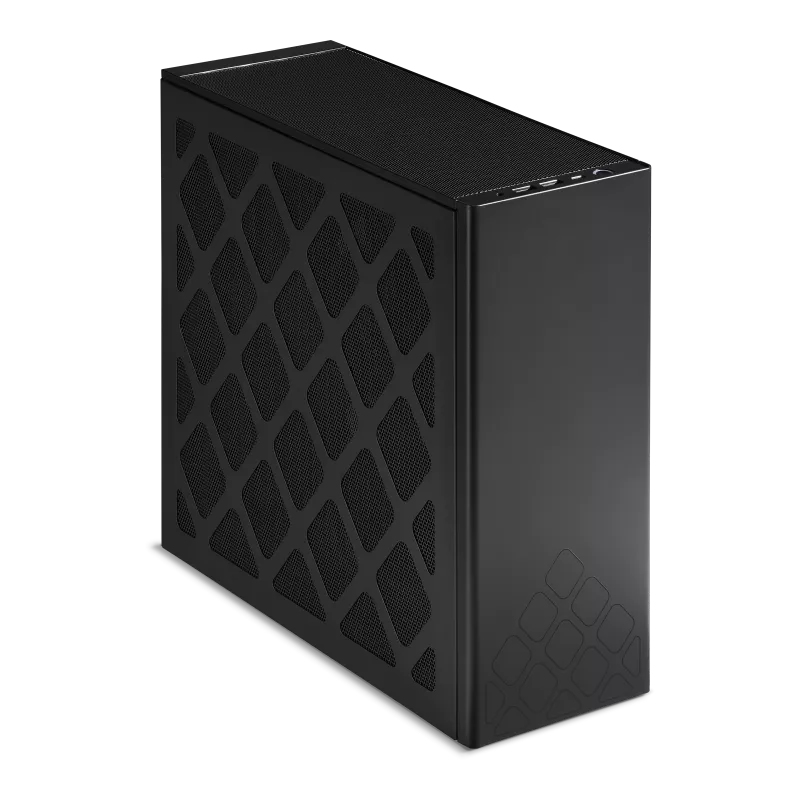

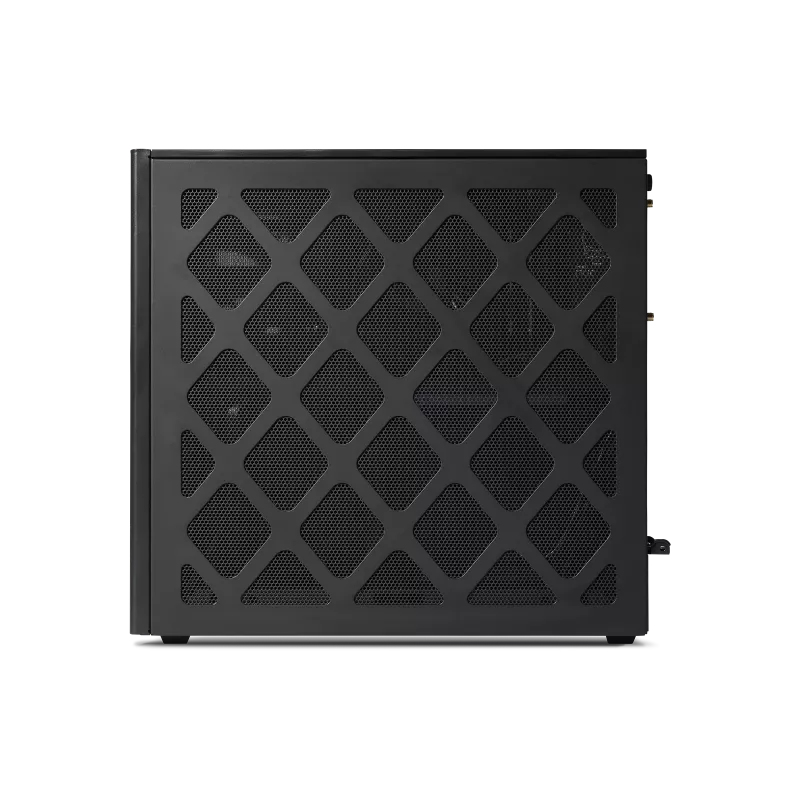

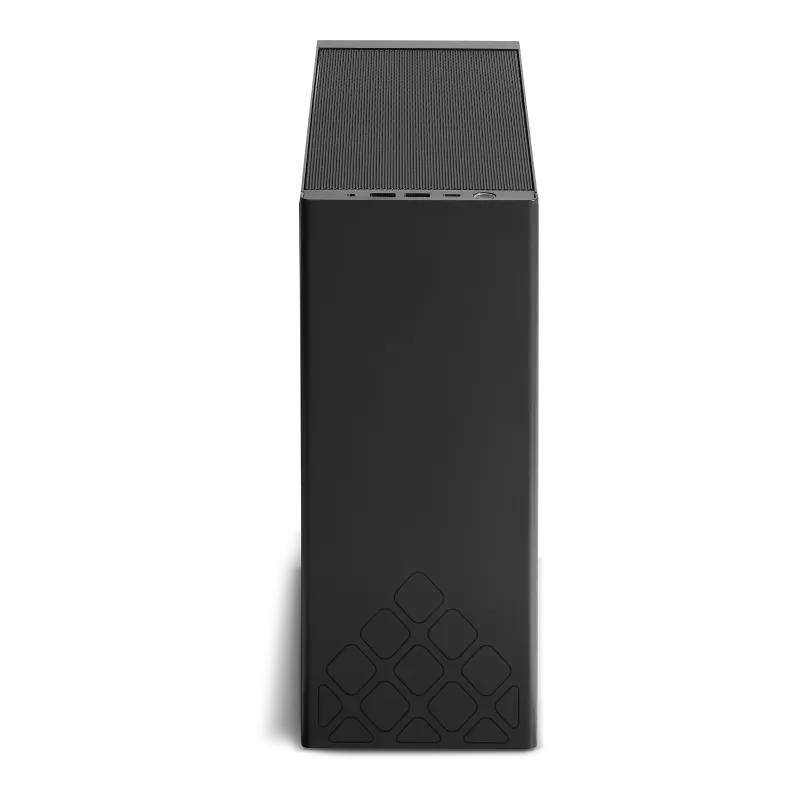

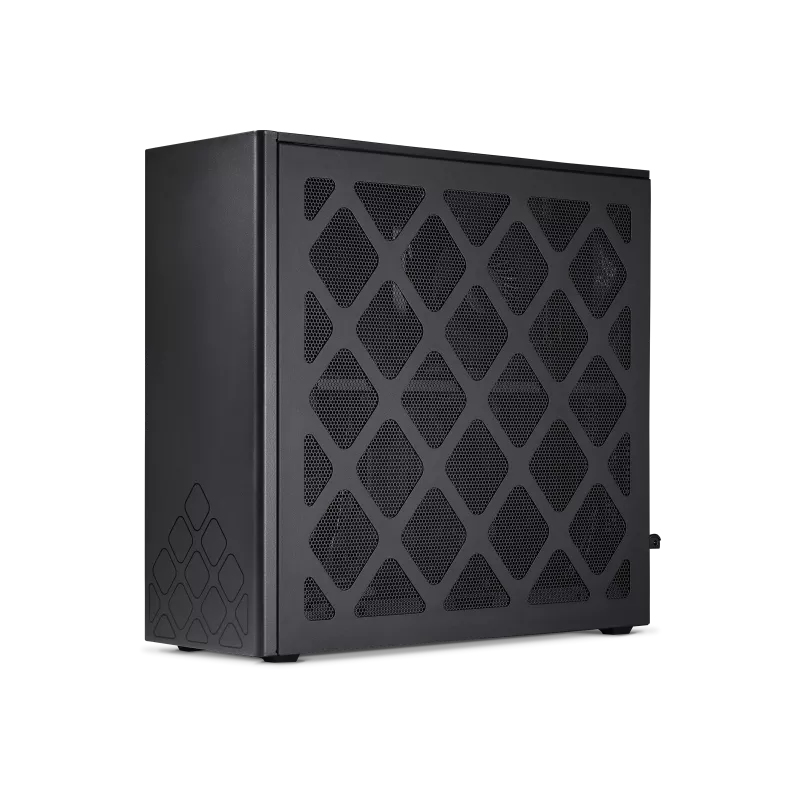

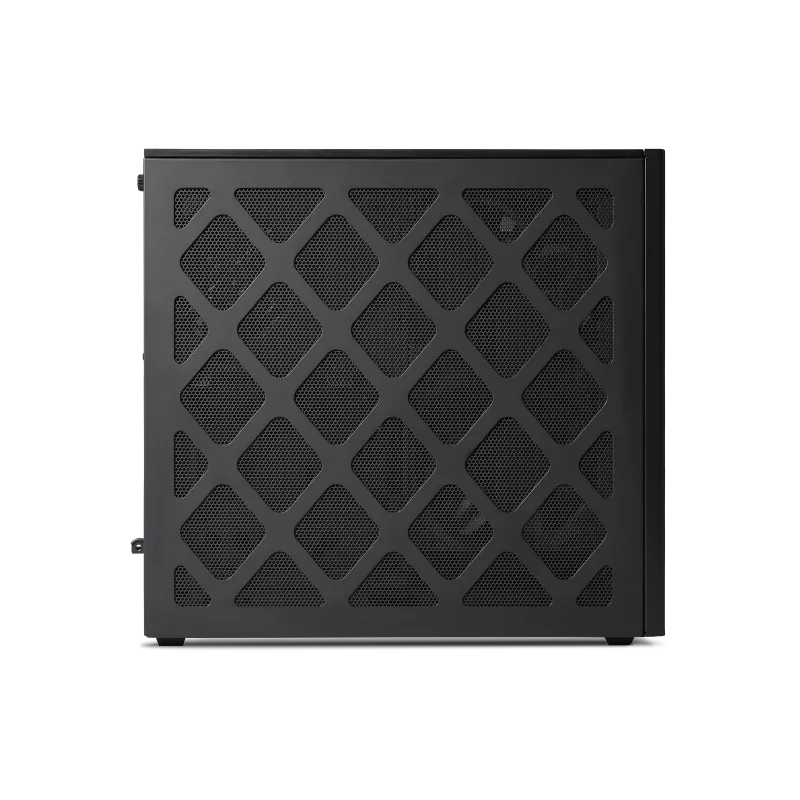

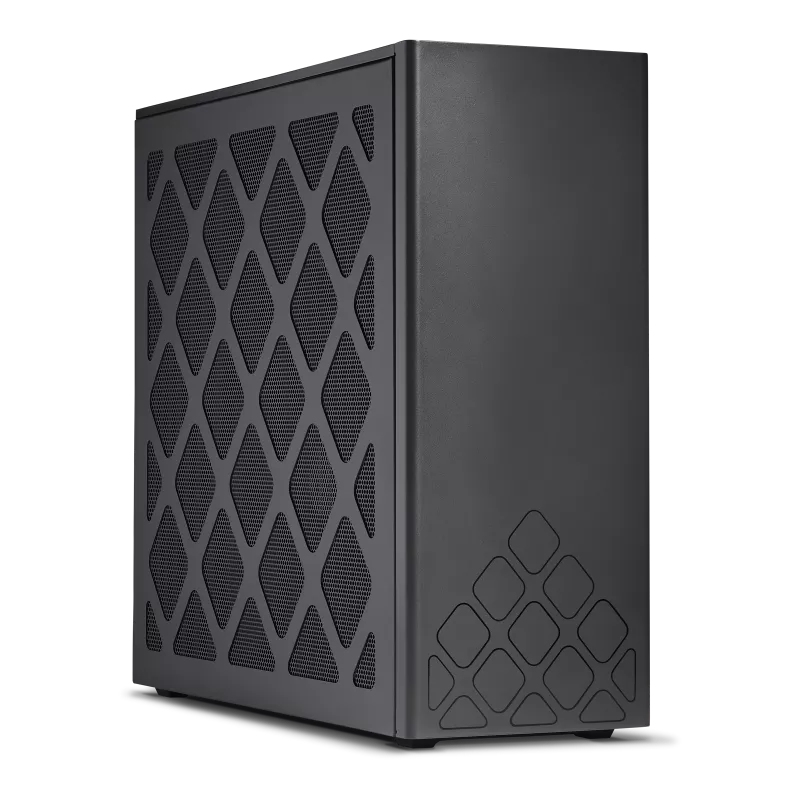

NUC 13 NUC13RNGi70003 Black i7-13700K Intel Z690
Model NUC13RNGi70003Part no. 90AB3RNG-MR8130EAN 5032037257084
70 specifications
- ProcessorIntel® Core™ i7
- SpeedWi-Fi 6E (802.11ax)
- TypePC barebone
- ColourBlack
- Built-in processorYes
- Internal memory installedNo
Overview
- Processor
- Intel® Core™ i7
- Speed
- Wi-Fi 6E (802.11ax)
- Type
- PC barebone
- Colour
- Black
- Built-in processor
- Yes
- Internal memory installed
- No
- Brand
- ASUS
- Category
- PC/Workstation Barebones
- Model
- NUC13RNGi70003
- Part number
- 90AB3RNG-MR8130
- EAN / UPC
- 5032037257084
- Also known as
- ASUS NUC 13 NUC13RNGi70003 Black i7-13700K Intel Z690
Specifications
70 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | 13th gen Intel® Core™ i7 |
| Processor model | i7-13700K |
| Processor cores | 16 |
| Processor threads | 24 |
| Processor boost frequency | 5.4 GHz |
| Performance cores | 8 |
| Efficient cores | 8 |
| Performance-core boost frequency | 5.3 GHz |
| Efficient-core boost frequency | 4.2 GHz |
| Processor cache | 30 MB |
| Thermal Design Power (TDP) | 125 W |
Memory
| Specification | Value |
|---|---|
| Internal memory installed | No |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 64 GB |
| Memory channels | Dual-channel |
| Supported memory types | DDR5-SDRAM |
| ECC | No |
Storage
| Specification | Value |
|---|---|
| Storage drives installed | No |
| Supported storage drive types | SSD |
| Storage drive sizes supported | M.2 |
| SSD form factor | M.2 |
| Storage drive interface | PCI Express |
| NVMe | Yes |
| Number of storage drives supported | 3 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel UHD Graphics 770 |
| Number of displays supported | 4 |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel Z690 |
| Number of processors supported | 1 |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX1690i |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| LAN controller | Intel I226-V |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 6 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| VGA (D-Sub) ports quantity | 0 |
| Combo headphone/mic port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Thunderbolt 4 ports quantity | 2 |
| DC-in jack | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 4.0, 5.0 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Product type | PC barebone |
Processor special features
| Specification | Value |
|---|---|
| Intel Rapid Storage Technology | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Optane™ Memory Ready | Yes |
| Intel® Platform Trust Technology (Intel® PTT) | Yes |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 11 x64 |
Power
| Specification | Value |
|---|---|
| Power supply type | Internal power supply unit |
| Number of power supply units | 1 |
| Power supply | 750 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 129 mm |
| Depth | 337 mm |
| Height | 318 mm |
