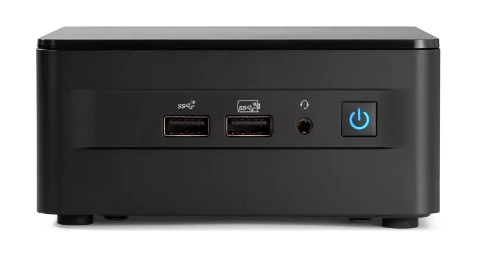

NUC 12 NUC12WSHI30002 UCFF Black i3-1220P
Model NUC12WSHI30002Part no. 90AB2WSH-MR4120EAN 5032037261036
67 specifications
- ProcessorIntel® Core™ i3
- SpeedWi-Fi 6E (802.11ax)
- TypeMini PC barebone
- ColourBlack
- Built-in processorYes
- Memory slots typeSO-DIMM
Overview
- Processor
- Intel® Core™ i3
- Speed
- Wi-Fi 6E (802.11ax)
- Type
- Mini PC barebone
- Colour
- Black
- Built-in processor
- Yes
- Memory slots type
- SO-DIMM
- Brand
- ASUS
- Category
- PC/Workstation Barebones
- Model
- NUC12WSHI30002
- Part number
- 90AB2WSH-MR4120
- EAN / UPC
- 5032037261036
- Also known as
- ASUS NUC 12 NUC12WSHI30002 UCFF Black i3-1220P
Specifications
67 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i3 |
| Processor generation | 12th gen Intel® Core™ i3 |
| Processor model | i3-1220P |
| Processor cores | 10 |
| Processor threads | 12 |
| Processor boost frequency | 4.4 GHz |
| Performance cores | 2 |
| Efficient cores | 8 |
| Performance-core boost frequency | 4.4 GHz |
| Efficient-core boost frequency | 3.3 GHz |
| Processor cache | 12 MB |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 64 GB |
| Memory voltage | 1.2 V |
| Supported memory clock speeds | 3200 MHz |
| Supported memory types | DDR4-SDRAM |
| ECC | No |
Storage
| Specification | Value |
|---|---|
| Supported storage drive types | SSD |
| Storage drive sizes supported | M.2 |
| SSD form factor | M.2 |
| NVMe | Yes |
| Number of storage drives supported | 2 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
| Graphics card family | Intel |
| On-board graphics card model | Intel® UHD Graphics |
| Number of displays supported | 4 |
Performance
| Specification | Value |
|---|---|
| Motherboard form factor | UCFF |
| Number of processors supported | 1 |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| LAN controller | Intel I225-V |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| VGA (D-Sub) ports quantity | 0 |
| Combo headphone/mic port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Serial port via internal header | No |
| Thunderbolt 4 ports quantity | 2 |
| DC-in jack | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 4.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | UCFF |
| Product colour | Black |
| Cooling type | Active |
| On/off switch | Yes |
| LED indicators | Yes |
| VESA mounting | Yes |
| Product type | Mini PC barebone |
Processor special features
| Specification | Value |
|---|---|
| Intel Virtualization Technology (VT-x) | Yes |
| Intel® Optane™ Memory Ready | No |
| Intel® Platform Trust Technology (Intel® PTT) | Yes |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 11 Home, Windows 11 Pro, Windows 10 Home, Windows 10 IoT Enterprise, Windows 10 Pro |
| Linux operating systems supported | Yes |
Power
| Specification | Value |
|---|---|
| Power supply type | External AC adapter |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 117 mm |
| Depth | 112 mm |
| Height | 54 mm |
