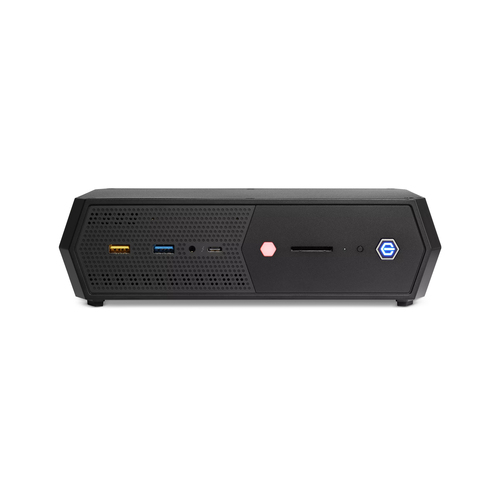

NUC12SNKi72002 Black i7-12700H
Model NUC12SNKi72002Part no. 90AB2SNK-MRA120
51 specifications
- ProcessorIntel® Core™ i7
- SpeedWi-Fi 6E (802.11ax)
- TypeMini PC barebone
- ColourBlack
- Built-in processorYes
- Memory slots typeSO-DIMM
Overview
- Processor
- Intel® Core™ i7
- Speed
- Wi-Fi 6E (802.11ax)
- Type
- Mini PC barebone
- Colour
- Black
- Built-in processor
- Yes
- Memory slots type
- SO-DIMM
- Brand
- ASUS
- Category
- PC/Workstation Barebones
- Model
- NUC12SNKi72002
- Part number
- 90AB2SNK-MRA120
- Also known as
- ASUS NUC12SNKi72002 Black i7-12700H
Specifications
51 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | 12th gen Intel® Core™ i7 |
| Processor model | i7-12700H |
| Processor cores | 14 |
| Processor threads | 20 |
| Performance cores | 6 |
| Efficient cores | 8 |
| Performance-core boost frequency | 4.7 GHz |
| Efficient-core boost frequency | 3.5 GHz |
| Processor cache | 24 MB |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 64 GB |
| Memory channels | Dual-channel |
| Memory voltage | 1.2 V |
| Supported memory clock speeds | 3200 MHz |
| Supported memory types | DDR4-SDRAM |
Storage
| Specification | Value |
|---|---|
| Supported storage drive types | SSD |
| Storage drive sizes supported | M.2 |
| SSD form factor | M.2 |
| Storage drive interface | M.2 |
| Number of storage drives supported | 3 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel Iris Xe Graphics |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Killer Wi-Fi 6E AX1690i |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| LAN controller | Intel I225-LM |

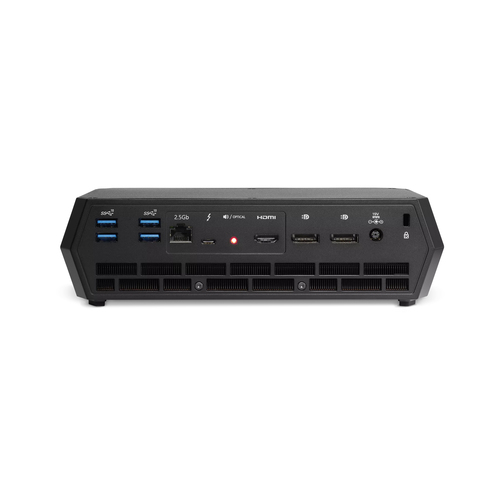

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 0 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Thunderbolt 4 ports quantity | 2 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Passive |
| On/off switch | Yes |
| Product type | Mini PC barebone |
Power
| Specification | Value |
|---|---|
| Power supply type | External AC adapter |
