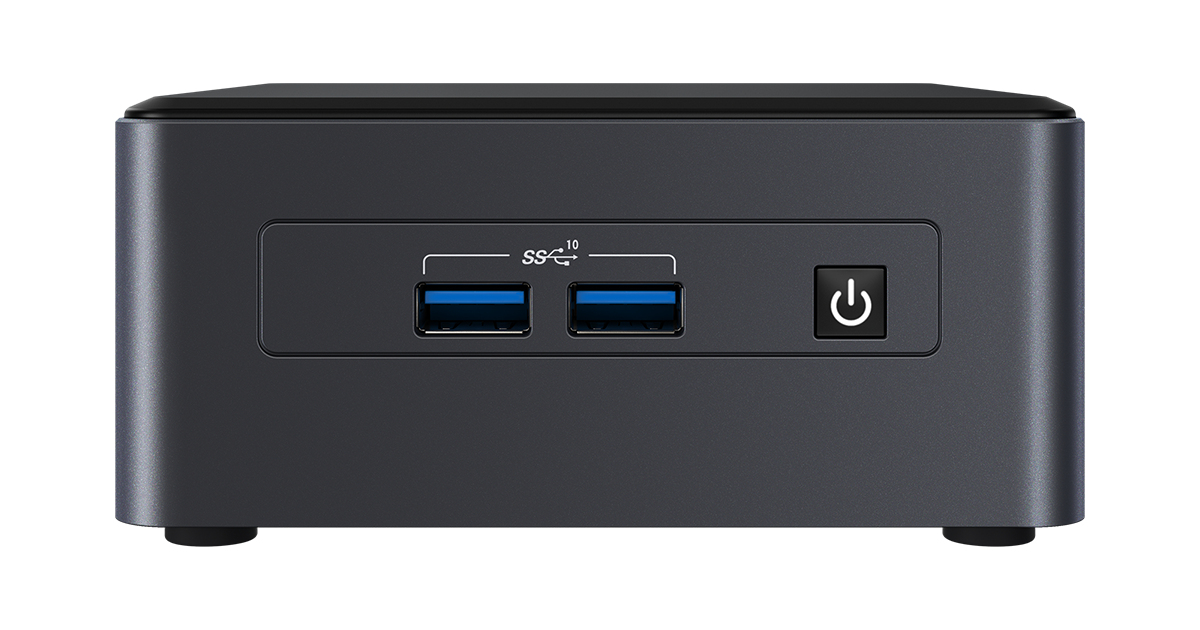

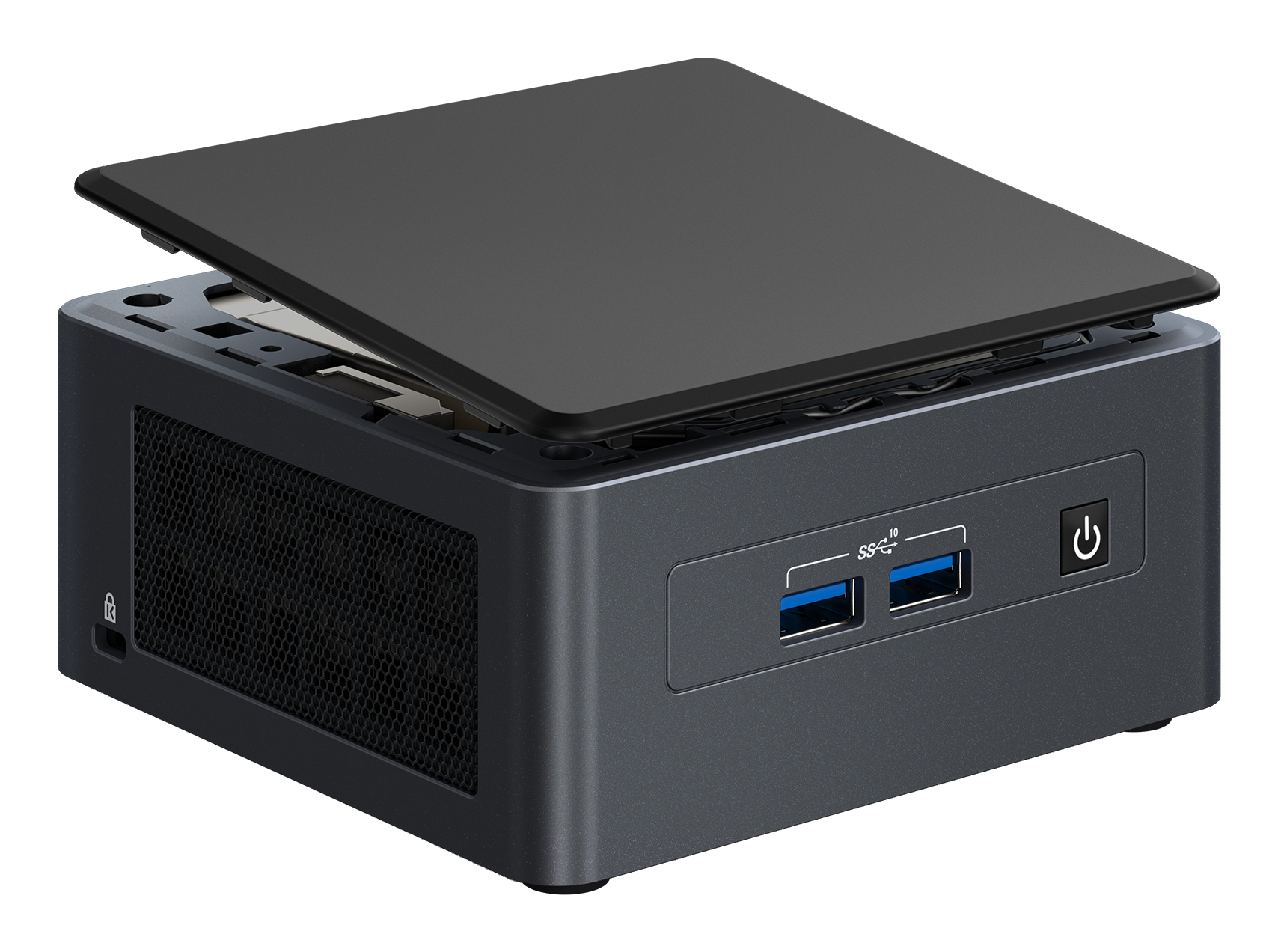

NUC 11 Pro
Model NUC 11 ProPart no. 90AB1TNH-MB8C20EAN 5032037239592
48 specifications
- ProcessorIntel® Core™ i7
- SpeedWi-Fi 6 (802.11ax)
- TypeMini PC barebone
- ColourBlack
- Built-in processorYes
- Memory slots typeSO-DIMM
Overview
- Processor
- Intel® Core™ i7
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- Mini PC barebone
- Colour
- Black
- Built-in processor
- Yes
- Memory slots type
- SO-DIMM
- Brand
- ASUS
- Category
- PC/Workstation Barebones
- Model
- NUC 11 Pro
- Part number
- 90AB1TNH-MB8C20
- EAN / UPC
- 5032037239592
- Also known as
- ASUS NUC 11 Pro UCFF Black i7-1165G7
Specifications
48 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | 11th gen Intel® Core™ i7 |
| Processor model | i7-1165G7 |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 4.7 GHz |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Memory channels | Dual-channel |
| Memory voltage | 1.2 V |
| Supported memory clock speeds | 3200 MHz |
| Supported memory types | DDR4-SDRAM |
Storage
| Specification | Value |
|---|---|
| Supported storage drive types | SSD |
| Storage drive sizes supported | M.2 |
| SSD form factor | M.2 |
| Storage drive interface | M.2 |
| NVMe | Yes |
| Number of storage drives supported | 2 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel Iris Xe Graphics |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| HDMI ports quantity | 2 |
| VGA (D-Sub) ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Thunderbolt ports quantity | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | UCFF |
| Product colour | Black |
| Cooling type | Passive |
| On/off switch | Yes |
| Product type | Mini PC barebone |
Power
| Specification | Value |
|---|---|
| Power supply type | External AC adapter |
| AC adapter output voltage | 12 - 20 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 112 mm |
| Depth | 117 mm |
| Height | 54 mm |
