N51-S1-BB Mini PC Black 5300U
2.6 GHz
Model N51-S1-BBPart no. 90MR00K1-M004U0EAN 4711387239551
50 specifications
- ProcessorAMD Ryzen™ 3
- GraphicsNot available
- SpeedWi-Fi 6 (802.11ax)
- TypeMini PC
- OSNo
- Weight550 g
Overview
- Processor
- AMD Ryzen™ 3
- Graphics
- Not available
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- Mini PC
- OS
- No
- Weight
- 550 g
- Brand
- ASUS
- Category
- PC/Workstation Barebones
- Model
- N51-S1-BB
- Part number
- 90MR00K1-M004U0
- EAN / UPC
- 4711387239551
- Also known as
- ASUS N51-S1-BB Mini PC Black 5300U 2.6 GHz
Specifications
50 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen™ 3 |
| Processor model | 5300U |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor frequency | 2.6 GHz |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
Storage
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5" |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | AMD |
| On-board graphics card model | AMD Radeon Graphics |
| Discrete graphics card model | Not available |
Performance
| Specification | Value |
|---|---|
| Optical drive type | No |
| Trusted Platform Module (TPM) | Yes |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| LAN controller | Realtek RTL8125-CG |

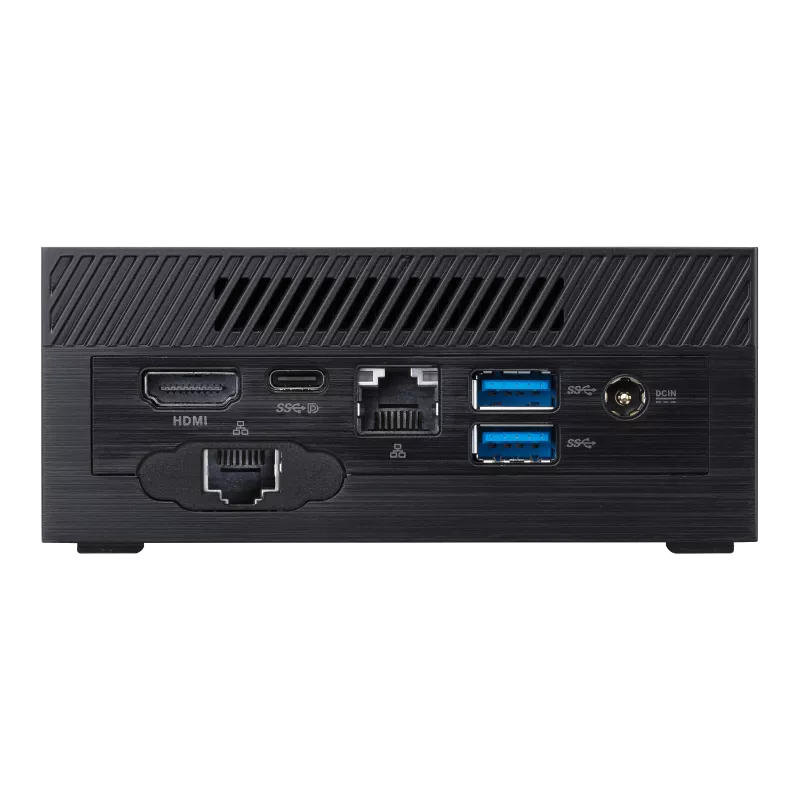

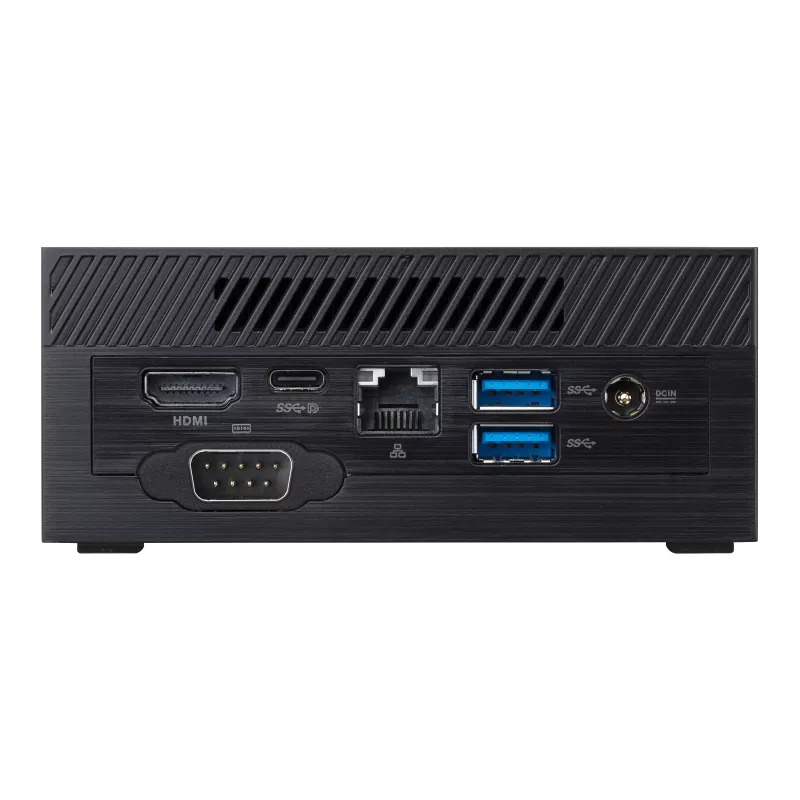

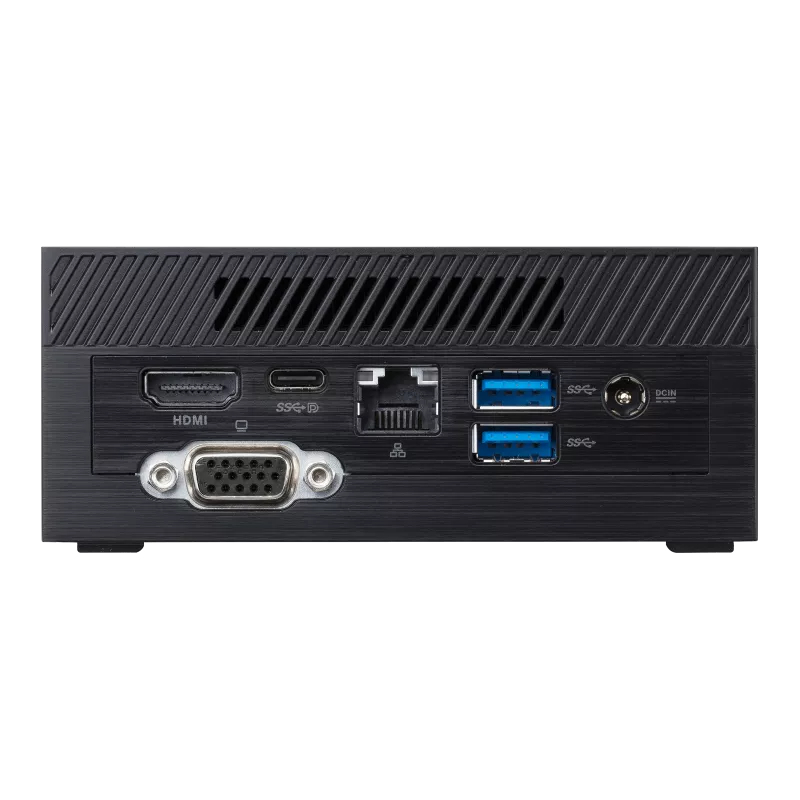

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Thunderbolt 3 ports quantity | 0 |
| DC-in jack | Yes |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini PC |
| Product colour | Black |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product type | Mini PC |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
Certificates
| Specification | Value |
|---|---|
| Certification | BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI |
Power
| Specification | Value |
|---|---|
| Power supply type | Internal power supply unit |
| Power supply | 65 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 115 mm |
| Depth | 115 mm |
| Height | 49 mm |
| Weight | 550 g |
Packaging content
| Specification | Value |
|---|---|
| Display included | No |
