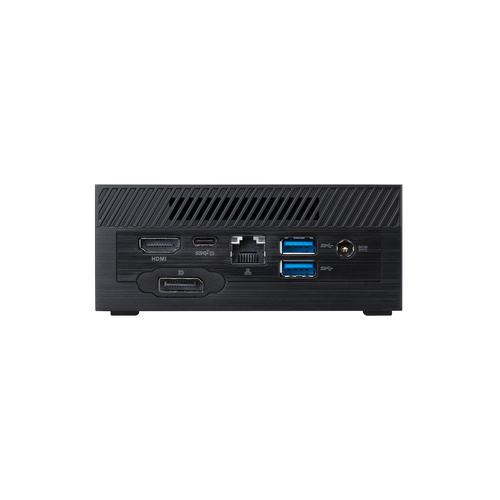

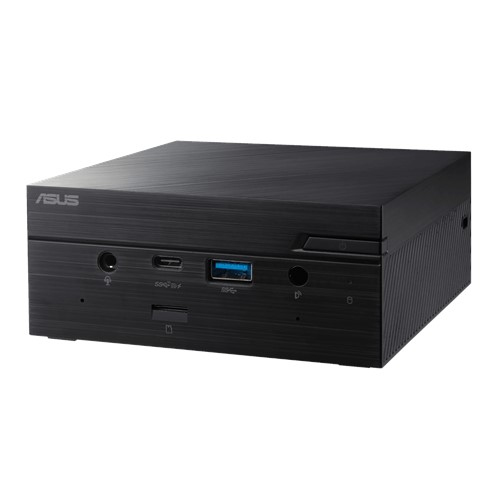

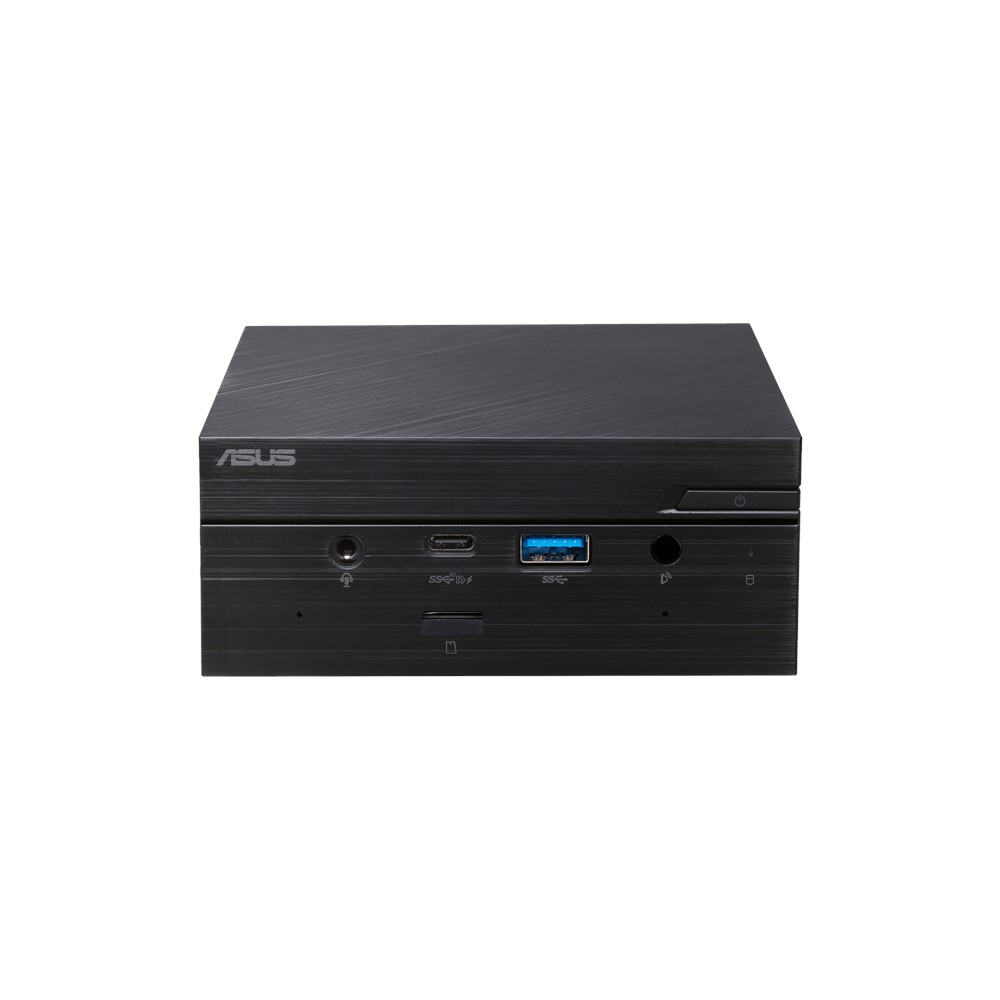

MiniPC PN50
Model MiniPC PN50Part no. 90MR00E1-M00160EAN 4718017788687
56 specifications
- ProcessorAMD Ryzen™ 5
- SpeedWi-Fi 6 (802.11ax)
- TypeAll-in-One PC barebone
- OSWindows 10 Pro
- Weight700 g
- ColourBlack
Overview
- Processor
- AMD Ryzen™ 5
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- All-in-One PC barebone
- OS
- Windows 10 Pro
- Weight
- 700 g
- Colour
- Black
- Brand
- ASUS
- Category
- PC/Workstation Barebones
- Model
- MiniPC PN50
- Part number
- 90MR00E1-M00160
- EAN / UPC
- 4718017788687
- Also known as
- ASUS MiniPC PN50 0.62L sized PC Black 2.3 GHz
Specifications
56 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen™ 5 |
| Processor generation | 2nd Generation AMD Ryzen™ 5 |
| Processor boost frequency | 4 GHz |
| Processor frequency | 2.3 GHz |
| Processor cache | 8 MB |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Maximum internal memory | 8 GB |
| Supported memory clock speeds | 3200 MHz |
| Supported memory types | DDR4-SDRAM |
Storage
| Specification | Value |
|---|---|
| Supported storage drive types | SSD |
| Storage drive sizes supported | M.2 |
| Storage drive interface | M.2, PCI Express, Serial ATA |
| Maximum storage capacity | 0.256 TB |
| Card reader integrated | Yes |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | AMD |
| On-board graphics card model | AMD Radeon RX Vega 7 |
Performance
| Specification | Value |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Consumer infrared Rx sensor | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Microphone in | Yes |
| COM ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB charging | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 3.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | 0.62L sized PC |
| Product colour | Black |
| Cooling type | Active |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| VESA mounting | Yes |
| Product type | All-in-One PC barebone |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Pro |
Certificates
| Specification | Value |
|---|---|
| Certification | BSMI / CB / CE / FCC / UL / CCC / Energy Star / C-Tick / WiFi / RF / VCCI |
Power
| Specification | Value |
|---|---|
| Power supply type | External AC adapter |
| AC adapter output current | 3.45 A |
| AC adapter output voltage | 19 V |
| Power supply | 65 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 115 mm |
| Depth | 115 mm |
| Height | 49 mm |
| Weight | 700 g |
Packaging content
| Specification | Value |
|---|---|
| Power cord included | Yes |
| Quick start guide | Yes |
