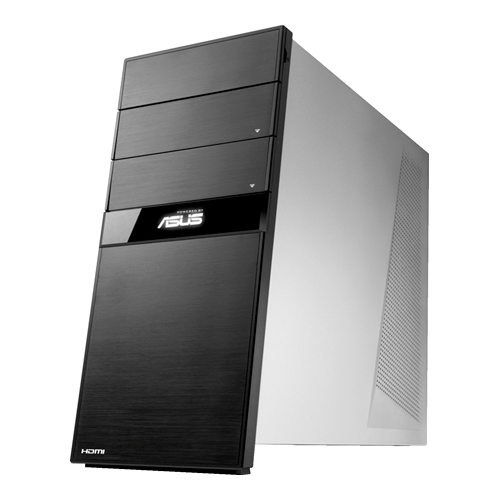

G1-P5G43 Intel® G43 Express LGA 775 (Socket T)
Model G1-P5G43Part no. 90PBBUAA110000AGCEZEAN 4719543065754
29 specifications
- ProcessorIntel
- Maximum internal memory16 GB
- On-board graphics cardYes
- Motherboard chipsetIntel® G43 Express
- Networking featuresGigabit Ethernet
- USB 2.0 ports quantity8
Overview
- Processor
- Intel
- Maximum internal memory
- 16 GB
- On-board graphics card
- Yes
- Motherboard chipset
- Intel® G43 Express
- Networking features
- Gigabit Ethernet
- USB 2.0 ports quantity
- 8
- Brand
- ASUS
- Category
- PC/Workstation Barebones
- Model
- G1-P5G43
- Part numbers
- 90PBBUAA110000AGCEZ, 90PBBUAA100000AGCEZ
- EAN / UPC
- 4719543065754, 5052461678408
- Also known as
- ASUS G1-P5G43 Intel® G43 Express LGA 775 (Socket T)
Specifications
29 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory | 16 GB |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® GMA X4500 |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® G43 Express |
| Processor socket | LGA 775 (Socket T) |
| Supported processor frequency (max) | 1.333 GHz |
| Audio output channels | 7.1 channels |
| Audio system | Realtek ALC887 |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| S/PDIF out port | Yes |
Design
| Specification | Value |
|---|---|
| Chassis type | No |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 7, Windows Vista, Windows XP |
Power
| Specification | Value |
|---|---|
| Power supply | 400 W |
Other features
| Specification | Value |
|---|---|
| Number of processors installed | 1 |
| Dimensions (WxDxH) | 206 x 534 x 461 mm |
| Number of Parallel ATA connectors | 1 |
| Number of SATA connectors | 6 |
| Drive bays | 2 x 3.5", 2 x 5.25" |
| Expansion slots | 2 x PCI, 1 x PCI-e x 1, 1 x PCI-e x 16 |
