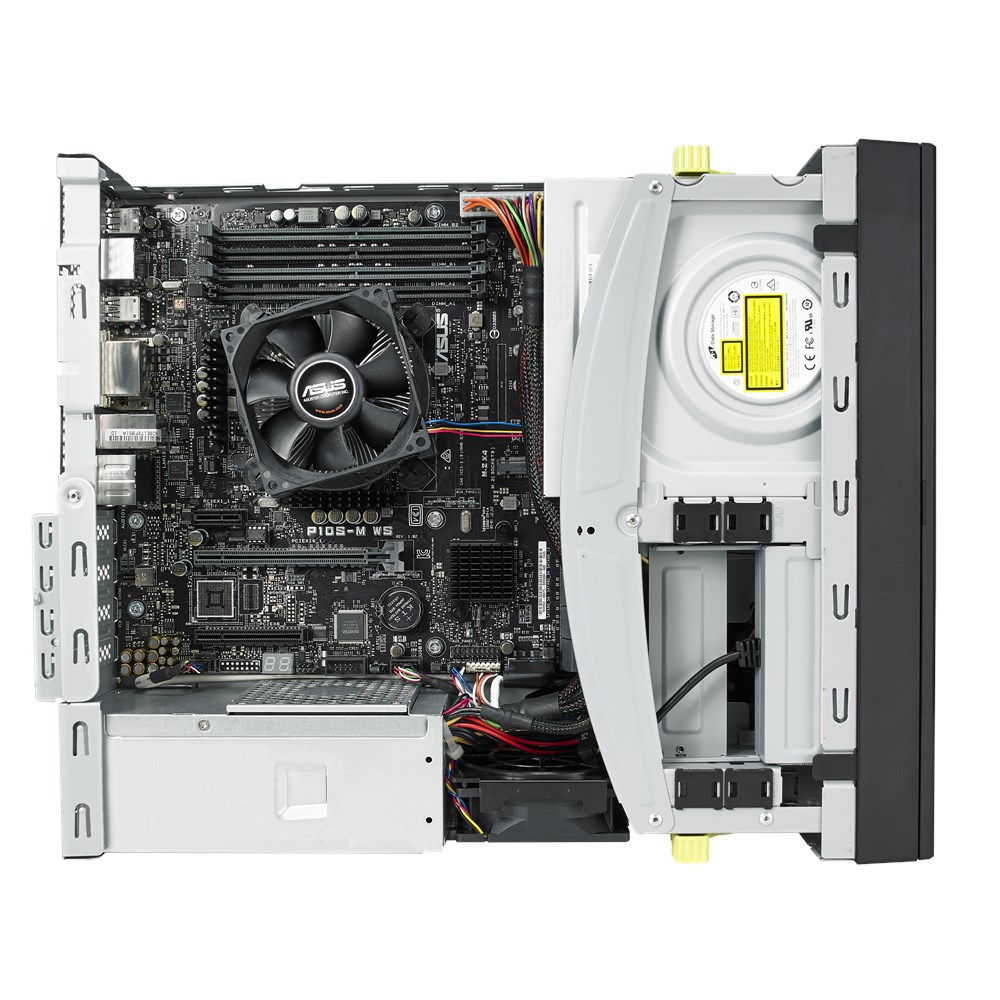

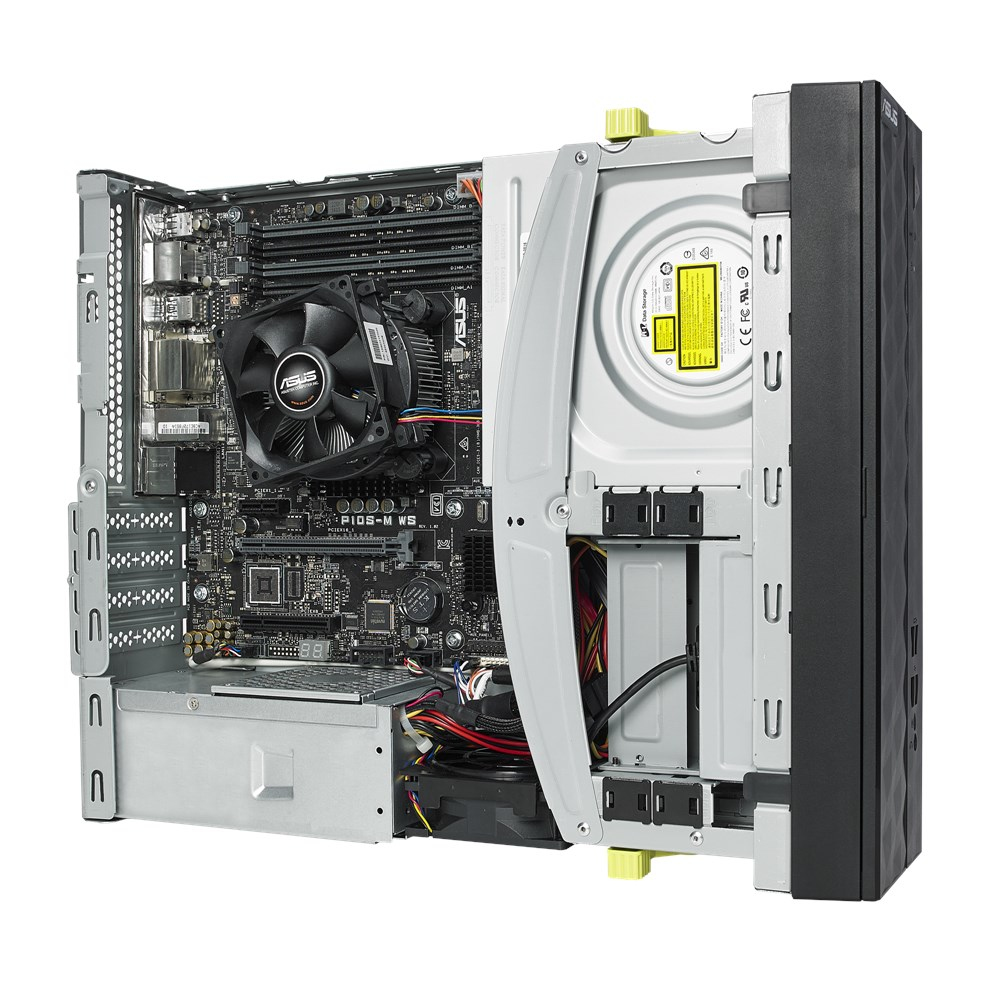

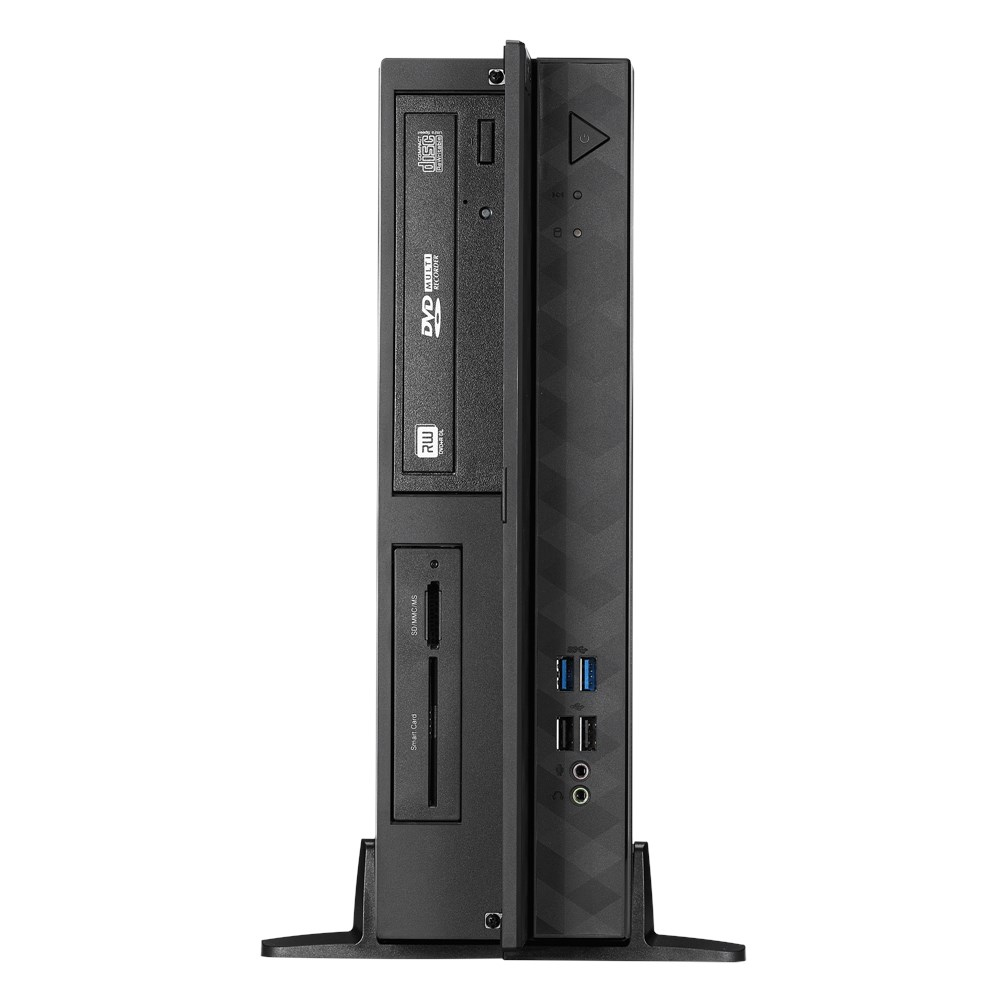

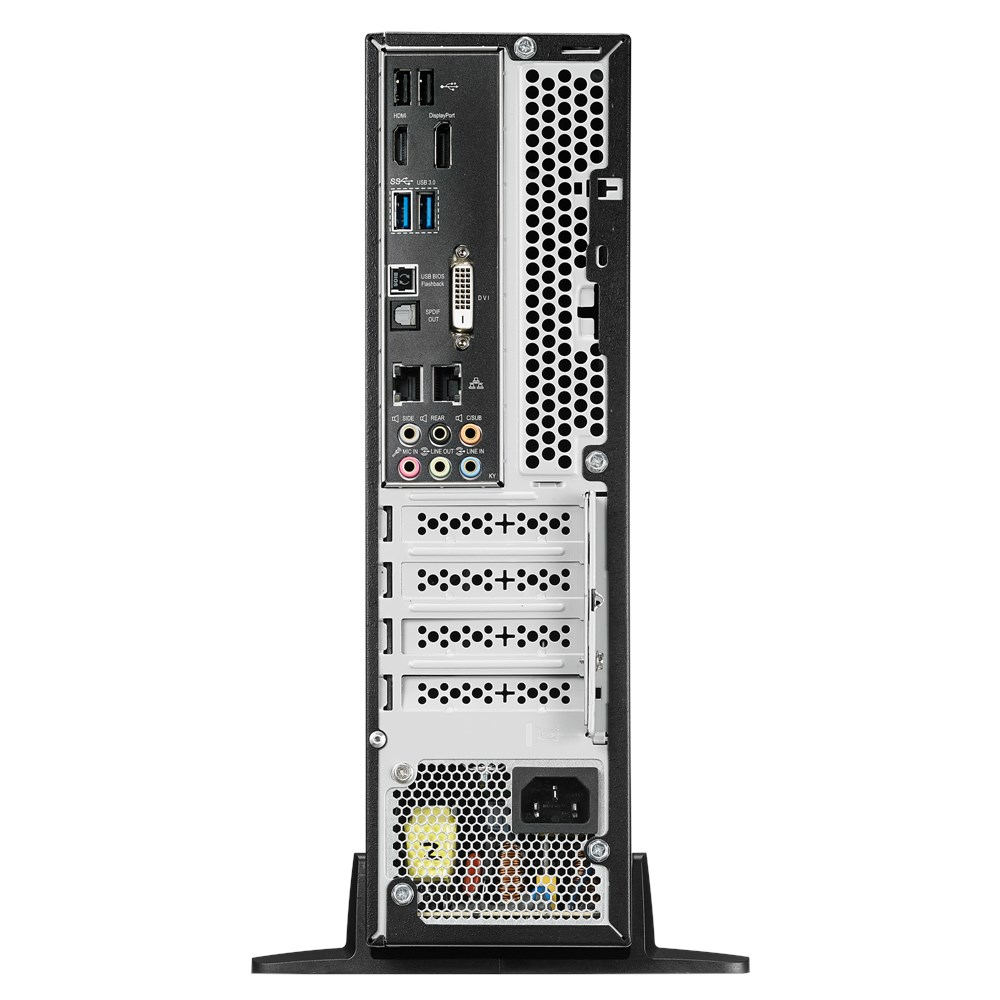

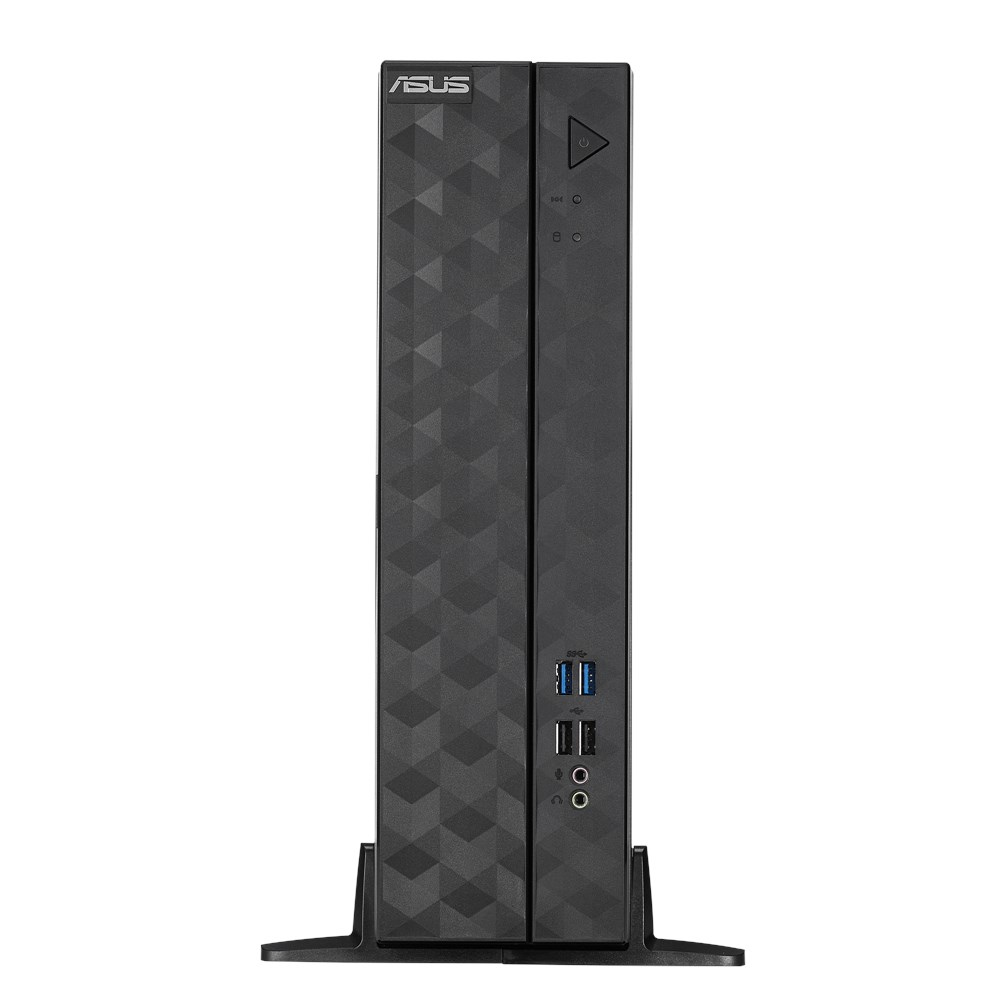

ASUS ESC510 G4 SFF

ASUS ESC510 G4 SFF

Model ESC510 G4 SFFPart no. 90SF0022-M01730EAN 4712900912111

57 specifications
  • TypeWorkstation barebone
  • Weight6 kg
  • ColourBlack
  • Built-in processorNo
  • Memory slots typeDIMM
  • Supported storage drive typesHDD & SSD
See all specifications

Overview

Type
Workstation barebone
Weight
6 kg
Colour
Black
Built-in processor
No
Memory slots type
DIMM
Supported storage drive types
HDD & SSD
Brand
ASUS
Model
ESC510 G4 SFF
Part number
90SF0022-M01730
EAN / UPC
4712900912111
Also known as
ASUS ESC510 G4 SFF Black Intel® C236 LGA 1151 (Socket H4)

Specifications

57 specifications in 14 groups

Processor

Built-in processorNo

Memory

Memory slots typeDIMM
Number of memory slots4
Maximum internal memory64 GB
Memory channelsDual-channel
Supported UDIMM module capacity8GB, 16GB
Supported memory clock speeds2133,2400 MHz
Supported memory typesDDR4-SDRAM
ECCYes
Non-ECCYes

Storage

Supported storage drive typesHDD & SSD
Storage drive sizes supported2.5,3.5"
Storage drive interfaceSerial ATA III
Number of storage drives supported8
RAID levels0, 1, 5, 10

Graphics

On-board graphics cardNo

Performance

Motherboard chipsetIntel® C236
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium®, Intel® Xeon® E3 Family

Network

Ethernet LANYes
Wi-FiNo

Ports & interfaces

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
HDMI ports quantity1
VGA (D-Sub) ports quantity0
DVI portYes
DVI-D ports quantity1
DisplayPorts quantity1
Microphone inYes
Headphone outputs1
Ethernet LAN (RJ-45) ports2
S/PDIF out portYes

Expansion slots

PCI Express slots version3.0
PCI Express x1 slots1
PCI Express x8 slots1
PCI Express x16 slots1

Design

Chassis typeSFF
Product colourBlack
On/off switchYes
Product typeWorkstation barebone
Number of 3.5" bays2
Number of 5.25" bays1

Logistics data

Harmonized System (HS) code84713000

Power

Power supply typeInternal power supply unit
AC input frequency50 - 60 Hz
AC input voltage100 - 240 V
Number of power supply units1
Power supply300 W

Operational conditions

Operating relative humidity (H-H)20 - 90%
Operating temperature (T-T)10 - 35 °C
Storage temperature (T-T)-40 - 70 °C

Weight & dimensions

Width96 mm
Depth410 mm
Height330 mm
Weight6 kg
Package weight7.5 kg

Packaging content

Power cord includedYes
