ESC500 G4 -M4E
Model ESC500 G4 -M4EPart no. 90SV04ZA-M4MCE0
79 specifications
- ProcessorIntel® Xeon® E3 Family
- TypePC barebone
- Weight12.7 kg
- ColourBlack
- Built-in processorYes
- Number of memory slots4
Overview
- Processor
- Intel® Xeon® E3 Family
- Type
- PC barebone
- Weight
- 12.7 kg
- Colour
- Black
- Built-in processor
- Yes
- Number of memory slots
- 4
- Brand
- ASUS
- Category
- PC/Workstation Barebones
- Model
- ESC500 G4 -M4E
- Part number
- 90SV04ZA-M4MCE0
- Also known as
- ASUS ESC500 G4 -M4E Full-Tower Black E3-1245 LGA 1155 (Socket H2) 3.3 GHz
Specifications
79 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® E3 Family |
| Processor model | E3-1245 |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 3.7 GHz |
| Processor frequency | 3.3 GHz |
| Processor lithography | 32 nm |
| Thermal Design Power (TDP) | 95 W |
| CPU configuration (max) | 1 |
| Processor codename | Sandy Bridge |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 64 GB |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 2133,2400 MHz |
| Supported memory types | DDR4-SDRAM |
Storage
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5,3.5" |
| SSD form factor | 2.5" |
| Storage drive interface | M.2, Serial ATA III |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Performance
| Specification | Value |
|---|---|
| Processor socket | LGA 1155 (Socket H2) |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| LAN controller | Intel® I210-AT |

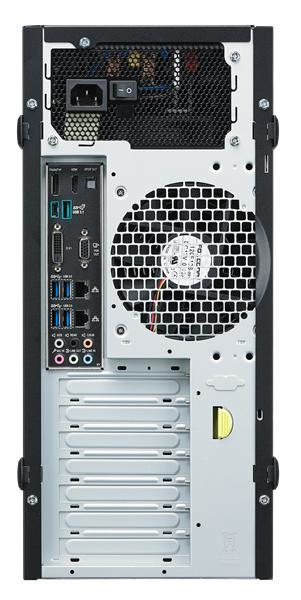

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| DVI-D ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| S/PDIF out port | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 2.0 |
| PCI Express x16 slots | 4 |
Design
| Specification | Value |
|---|---|
| Chassis type | Full-Tower |
| Product colour | Black |
| Cooling type | Active |
| Product type | PC barebone |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | Yes |
| Intel Flex Memory Access | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Wireless Display (Intel® WiDi) | No |
| Thermal Monitoring Technologies | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Certificates
| Specification | Value |
|---|---|
| Certification | BSMI, CE, FCC(Class B), Energy Star |
Power
| Specification | Value |
|---|---|
| Power supply type | Internal power supply unit |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 423 mm |
| Depth | 190 mm |
| Height | 435 mm |
| Weight | 12.7 kg |
| Package weight | 14.5 kg |
