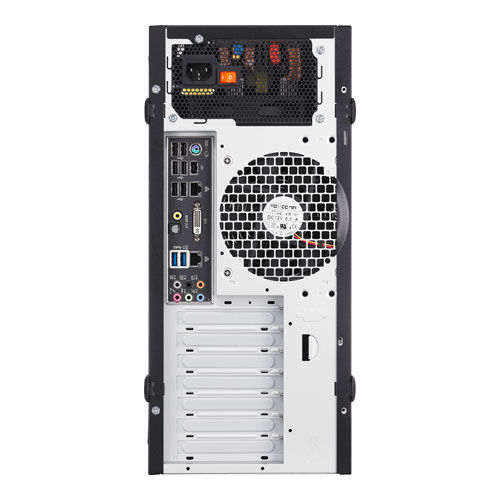

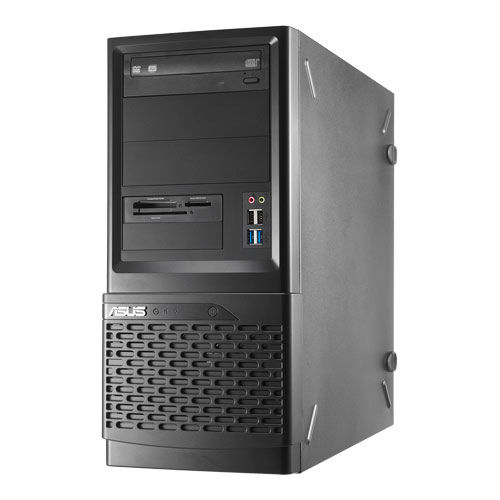

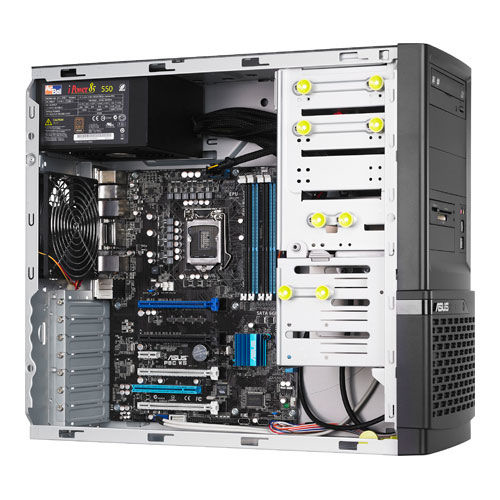

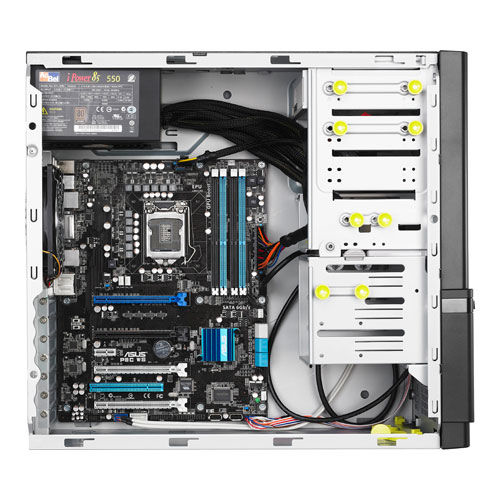

ASUS ESC500 G2
Model ESC500 G2Part no. 90S8BA0000C200UETEAN 4716659319429
28 specifications
- Weight10.8 kg
- Number of memory slots4
- Storage drive sizes supported3.5"
- Processor socketLGA 1155 (Socket H2)
- Ethernet LANYes
- USB 2.0 ports quantity6
Overview
- Weight
- 10.8 kg
- Number of memory slots
- 4
- Storage drive sizes supported
- 3.5"
- Processor socket
- LGA 1155 (Socket H2)
- Ethernet LAN
- Yes
- USB 2.0 ports quantity
- 6
- Brand
- ASUS
- Category
- PC/Workstation Barebones
- Model
- ESC500 G2
- Part number
- 90S8BA0000C200UET
- EAN / UPC
- 4716659319429
- Also known as
- ASUS ESC500 G2 LGA 1155 (Socket H2)
Specifications
28 specifications in 10 groups
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 32 GB |
| Supported memory clock speeds | 1066,1333,1600 MHz |
| Supported memory types | DDR3-SDRAM |
Storage
| Specification | Value |
|---|---|
| Storage drive sizes supported | 3.5" |
| Storage drive interface | Serial ATA II, Serial ATA III |
Performance
| Specification | Value |
|---|---|
| Processor socket | LGA 1155 (Socket H2) |
| Compatible processor series | Intel® Celeron® G, Intel Pentium G |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| LAN controller | Intel® 82574L |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| DVI port | Yes |
| Microphone in | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Firewire (IEEE 1394) ports | 1 |
| PS/2 ports quantity | 1 |
| S/PDIF out port | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 4 |
| PCI slots | 1 |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows Server 2008 R2 Windows Server 2003 R2 Enterprise 32/64-bit Windows 7 32/64-bit Windows XP 32/64-bit |
Certificates
| Specification | Value |
|---|---|
| Certification | BSMI, CCC, CE, C-Tick |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 190 mm |
| Depth | 423 mm |
| Height | 435 mm |
| Weight | 10.8 kg |
Other features
| Specification | Value |
|---|---|
| Number of SATA connectors | 6 |
