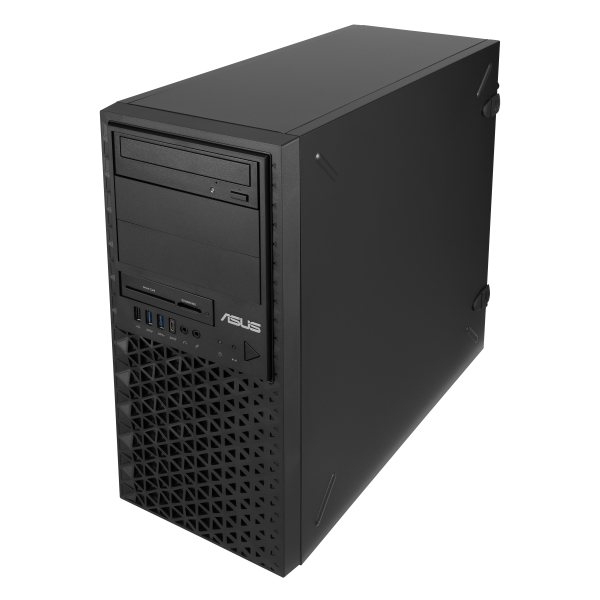

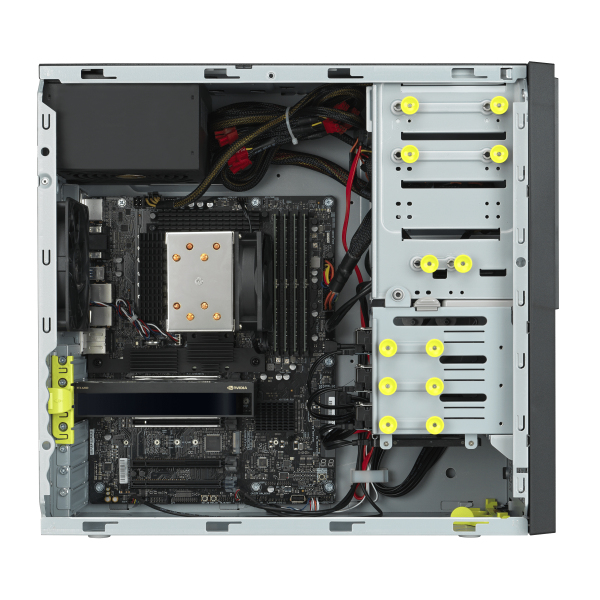

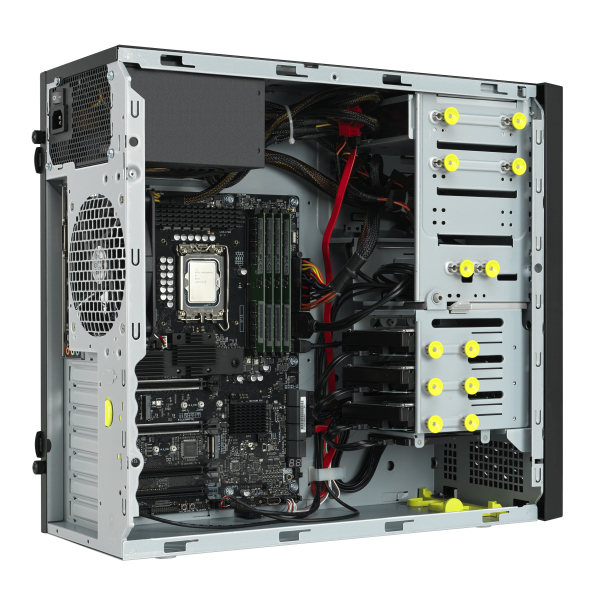

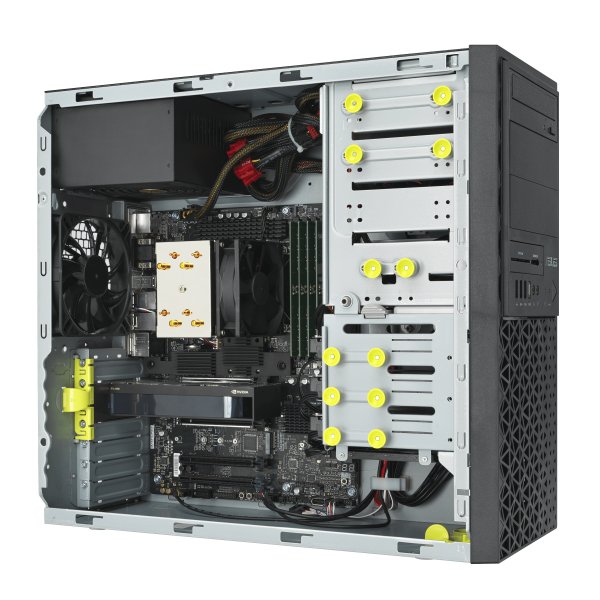

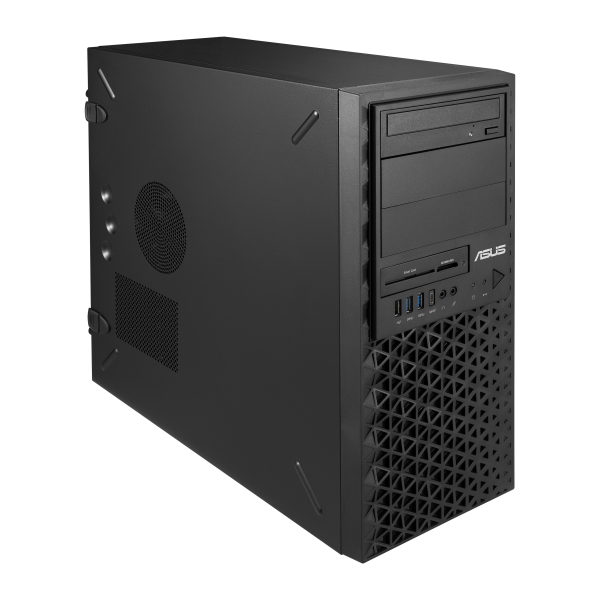

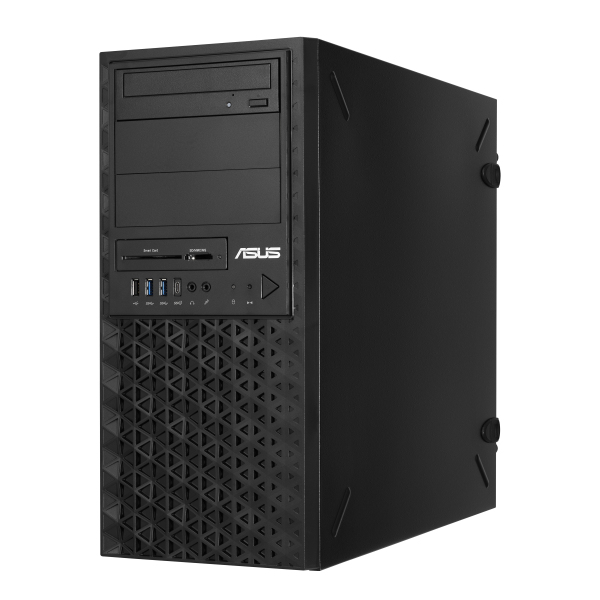

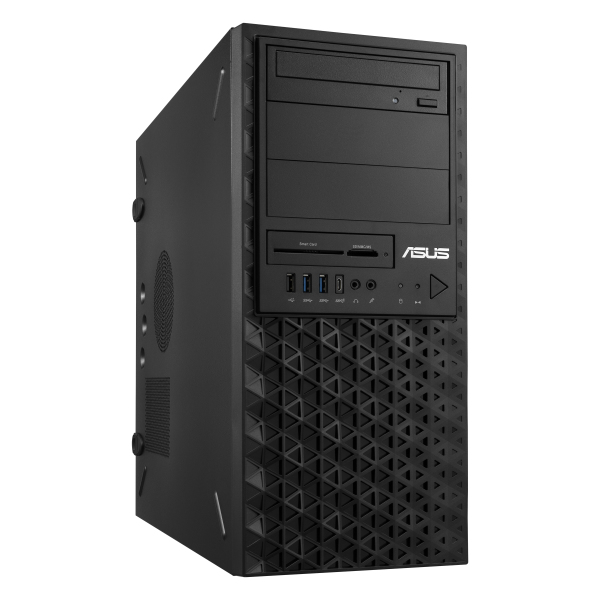

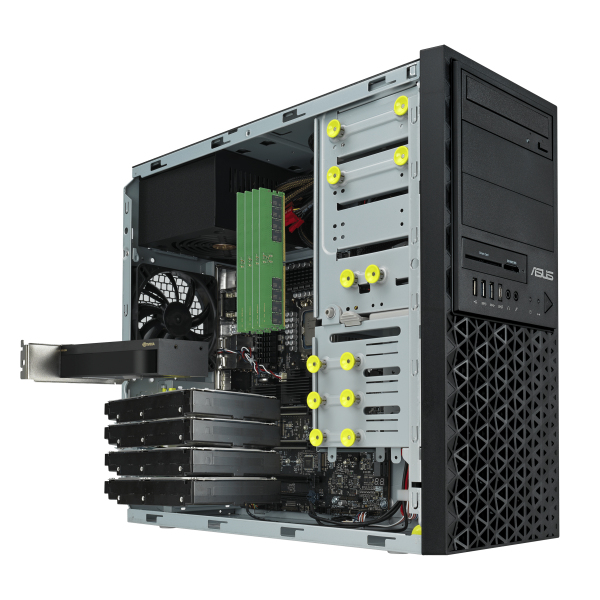

ASUS E500 G9
ASUS

E500 G9

Model E500 G9Part no. 90SF02F1-M001A0EAN 4711081886464

63 specifications
  • TypeWorkstation barebone
  • Weight9.9 kg
  • ColourBlack
  • Built-in processorNo
  • Memory slots typeDIMM
  • Supported storage drive typesHDD & SSD
See all specifications

Overview

Type
Workstation barebone
Weight
9.9 kg
Colour
Black
Built-in processor
No
Memory slots type
DIMM
Supported storage drive types
HDD & SSD
Brand
ASUS
Model
E500 G9
Part number
90SF02F1-M001A0
EAN / UPC
4711081886464
Also known as
ASUS E500 G9 Desktop Black Intel W680 LGA 1700

Specifications

63 specifications in 15 groups

Processor

Built-in processorNo
Processor manufacturerIntel

Memory

Memory slots typeDIMM
Number of memory slots4
Maximum internal memory128 GB
Memory channelsDual-channel
Supported memory clock speeds3600,4400 MHz
Supported memory typesDDR5-SDRAM
ECCYes
Non-ECCYes

Storage

Supported storage drive typesHDD & SSD
Storage drive sizes supported2.5,3.5,M.2
SSD form factorM.2
Storage drive interfaceM.2, PCI Express, Serial ATA
RAID levels0, 1, 5, 10

Performance

Motherboard chipsetIntel W680
Processor socketLGA 1700
Number of processors supported1
Compatible processor seriesIntel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Trusted Platform Module (TPM)Yes
Trusted Platform Module (TPM) version2.0
Audio output channels7.1 channels

Audio

Built-in speaker(s)No

Network

Ethernet LANYes
Wi-FiNo

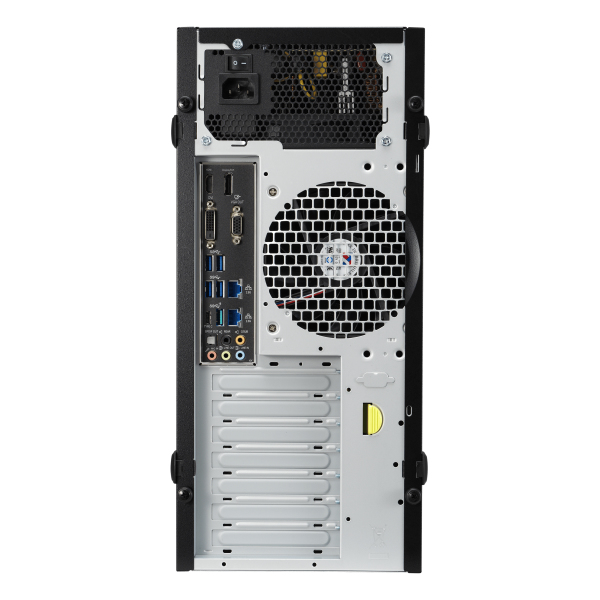

Ports & interfaces

USB 2.0 ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity6
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
USB4 Gen 2x2 ports quantity1
HDMI ports quantity1
VGA (D-Sub) ports quantity1
DVI portYes
DVI-D ports quantity1
DisplayPorts quantity1
Microphone inYes
Headphone outputs1
Ethernet LAN (RJ-45) ports2

Expansion slots

PCI Express slots version3.0, 4.0, 5.0
PCI Express x1 slots1
PCI Express x16 slots1
Number of M.2 (M) slots3

Design

Chassis typeDesktop
Product colourBlack
Cooling typeActive
LED indicatorsYes
Product typeWorkstation barebone

Sustainability

Sustainability certificatesENERGY STAR

Technical details

Compliance certificatesBSMI, CE, Federal Communications Commission (FCC)

Software

Windows operating systems supportedWindows 11 Home, Windows 11 Pro

Power

Power supply typeInternal power supply unit
AC adapter output current9 A
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Power supply550 W

Operational conditions

Operating relative humidity (H-H)20 - 90%
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 90%
Storage temperature (T-T)-40 - 70 °C

Weight & dimensions

Width190 mm
Depth435 mm
Height423 mm
Weight9.9 kg
Package weight12.1 kg
