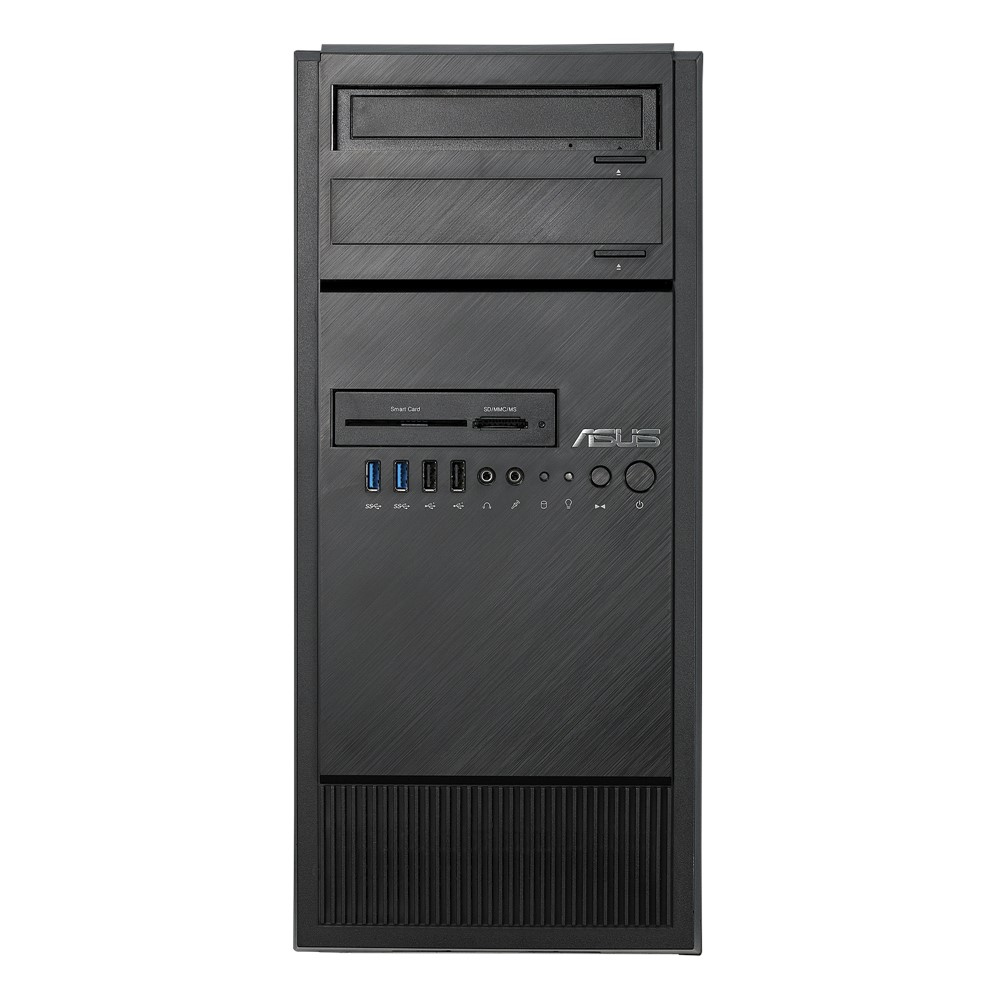

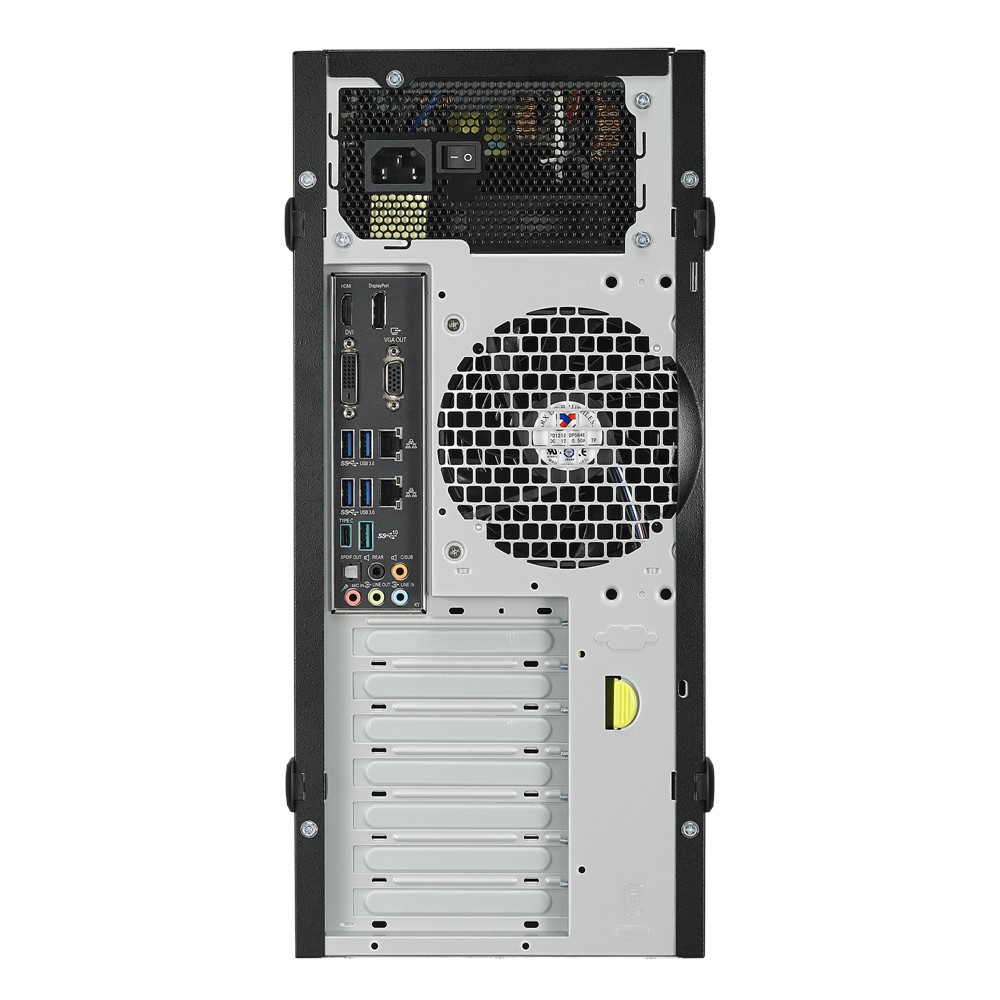

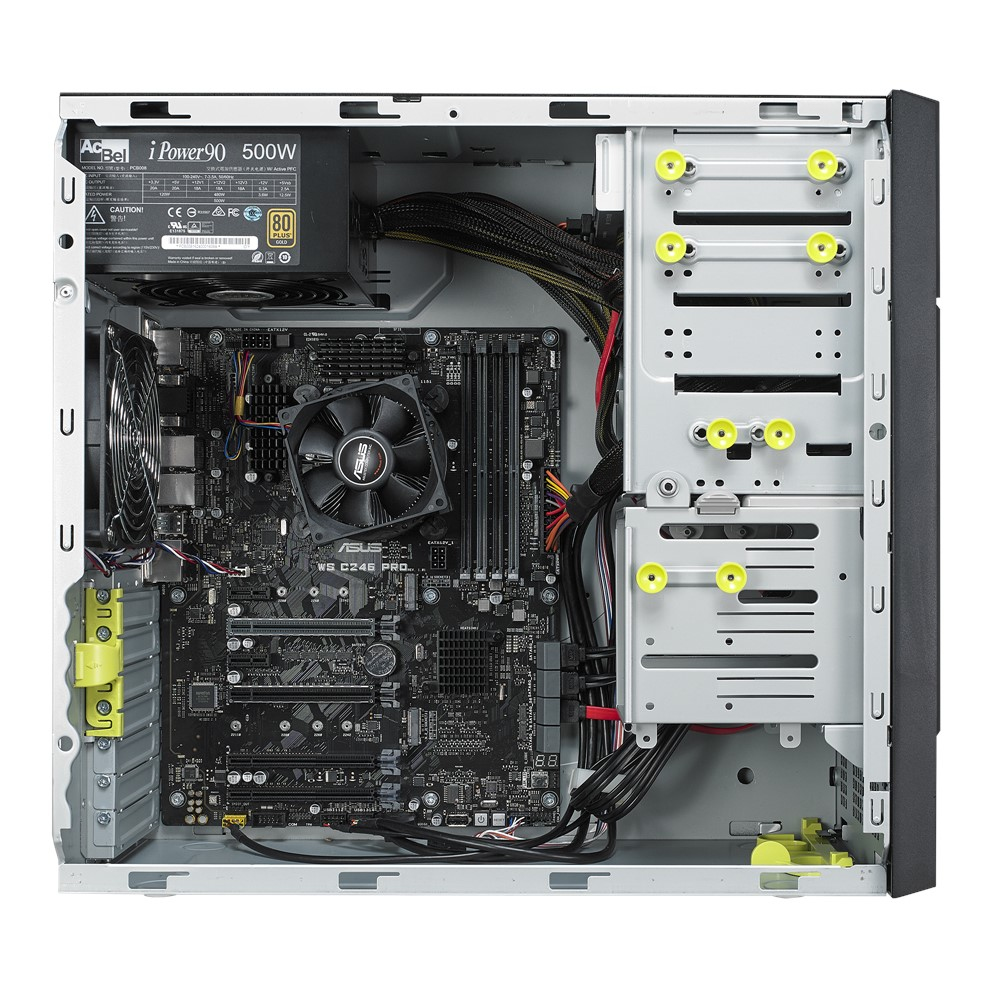

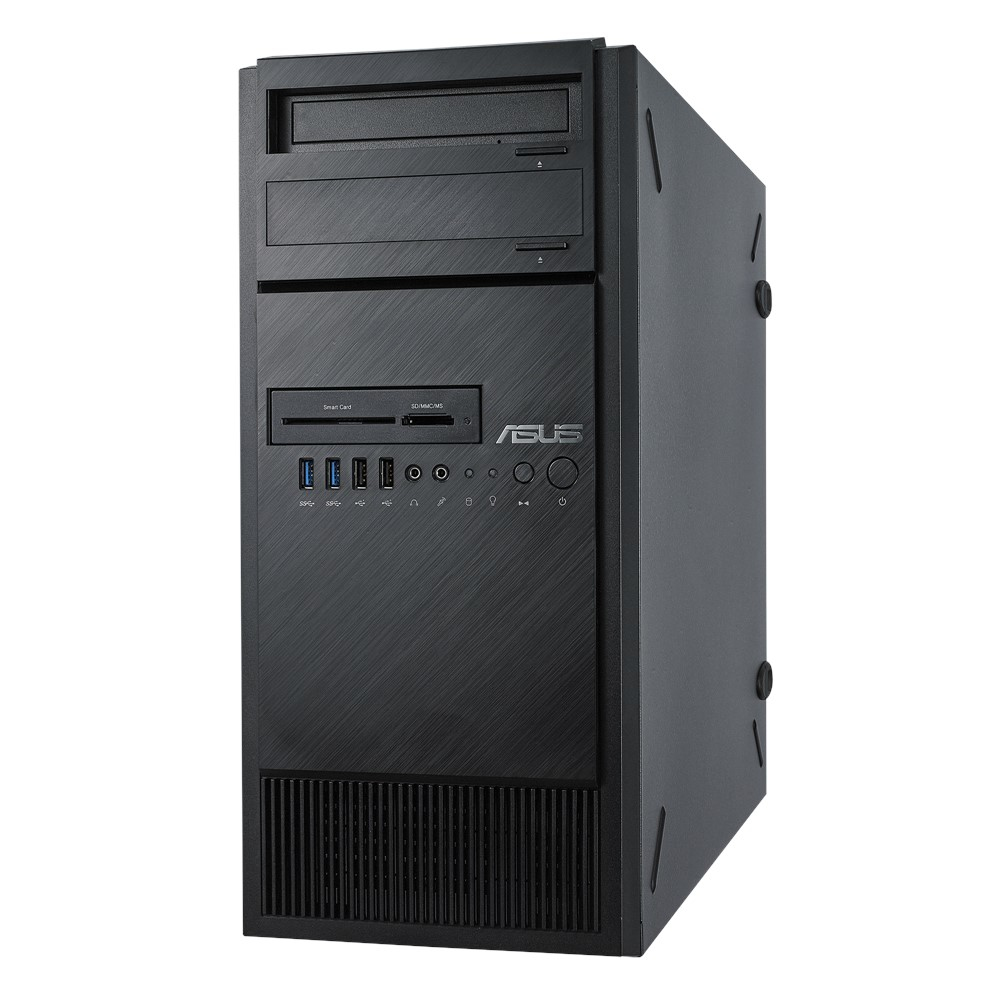

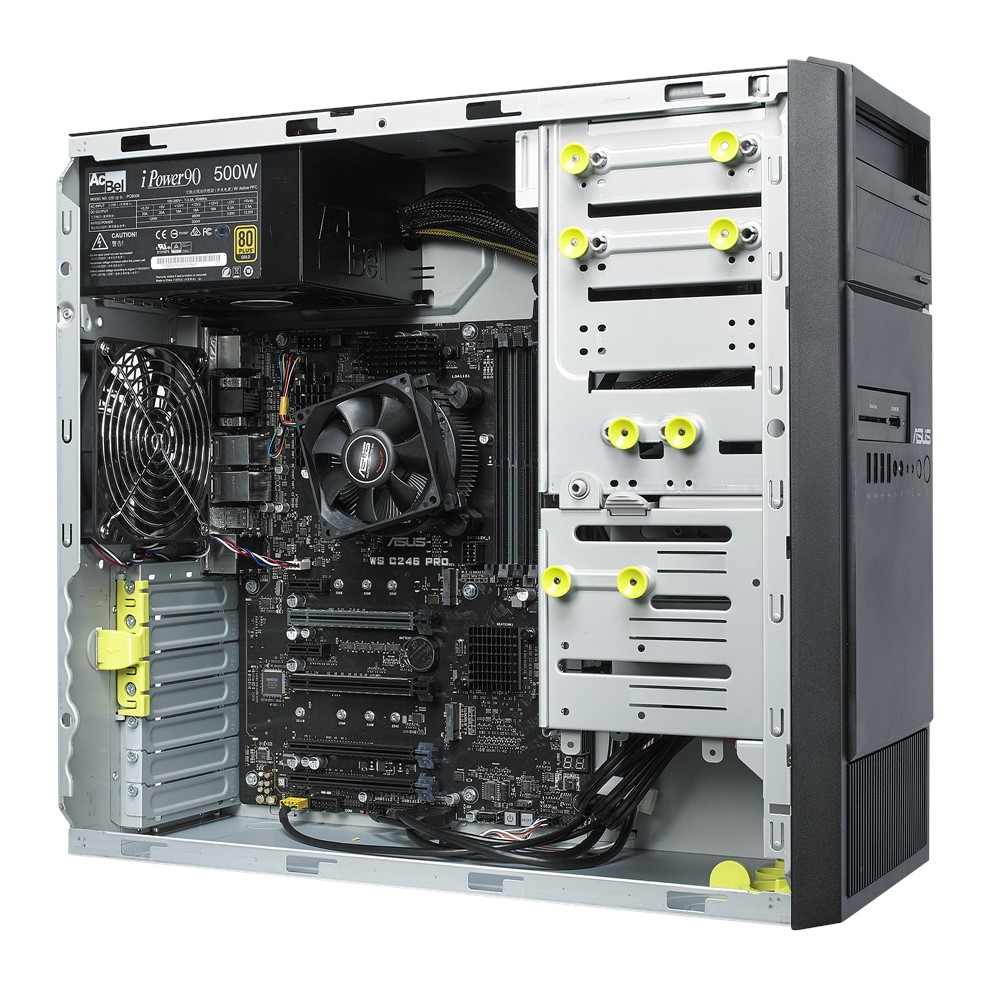

E500 G5
Model E500 G5Part no. 90SF00Q1-M00410EAN 4718017098779
62 specifications
- Weight12.7 kg
- ColourBlack
- Built-in processorNo
- Memory slots typeDIMM
- Supported storage drive typesHDD & SSD
- Motherboard chipsetIntel C246
Overview
- Weight
- 12.7 kg
- Colour
- Black
- Built-in processor
- No
- Memory slots type
- DIMM
- Supported storage drive types
- HDD & SSD
- Motherboard chipset
- Intel C246
- Brand
- ASUS
- Category
- PC/Workstation Barebones
- Model
- E500 G5
- Part numbers
- 90SF00Q1-M00410, 90SF00J1-M01160
- EAN / UPC
- 4718017098779, 4718017242486
- Also known as
- ASUS E500 G5 Full-Tower Black Intel C246 LGA 1151 (Socket H4)
Specifications
62 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | No |
Memory
| Specification | Value |
|---|---|
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Maximum internal memory | 128 GB |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 2400,2666 MHz |
| Supported memory types | DDR4-SDRAM |
| ECC | Yes |
| Non-ECC | Yes |
Storage
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5,3.5,M.2 |
| Storage drive interface | M.2, PCI Express, Serial ATA, Serial ATA II, Serial ATA III |
| Number of storage drives supported | 10 |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel C246 |
| Processor socket | LGA 1151 (Socket H4) |
| Number of processors supported | 1 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®, Intel® Xeon® |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Intel® I210-AT, Intel I219LM |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| DVI-D ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Number of SATA III connectors | 8 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 3.0 |
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 4 |
| Number of M.2 (M) slots | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | Full-Tower |
| Product colour | Black |
| Cooling type | Active |
| On/off switch | Yes |
| LED indicators | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84713000 |
Certificates
| Specification | Value |
|---|---|
| Certification | BSMI, CCC, CE, FCC(Class B) |
Power
| Specification | Value |
|---|---|
| Power supply type | Internal power supply unit |
| AC adapter output current | 7 A |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Number of power supply units | 1 |
| Power supply | 500 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 90% |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 190 mm |
| Depth | 435 mm |
| Height | 423 mm |
| Weight | 12.7 kg |
| Package weight | 14.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Power cord included | Yes |
| Drivers included | Yes |
