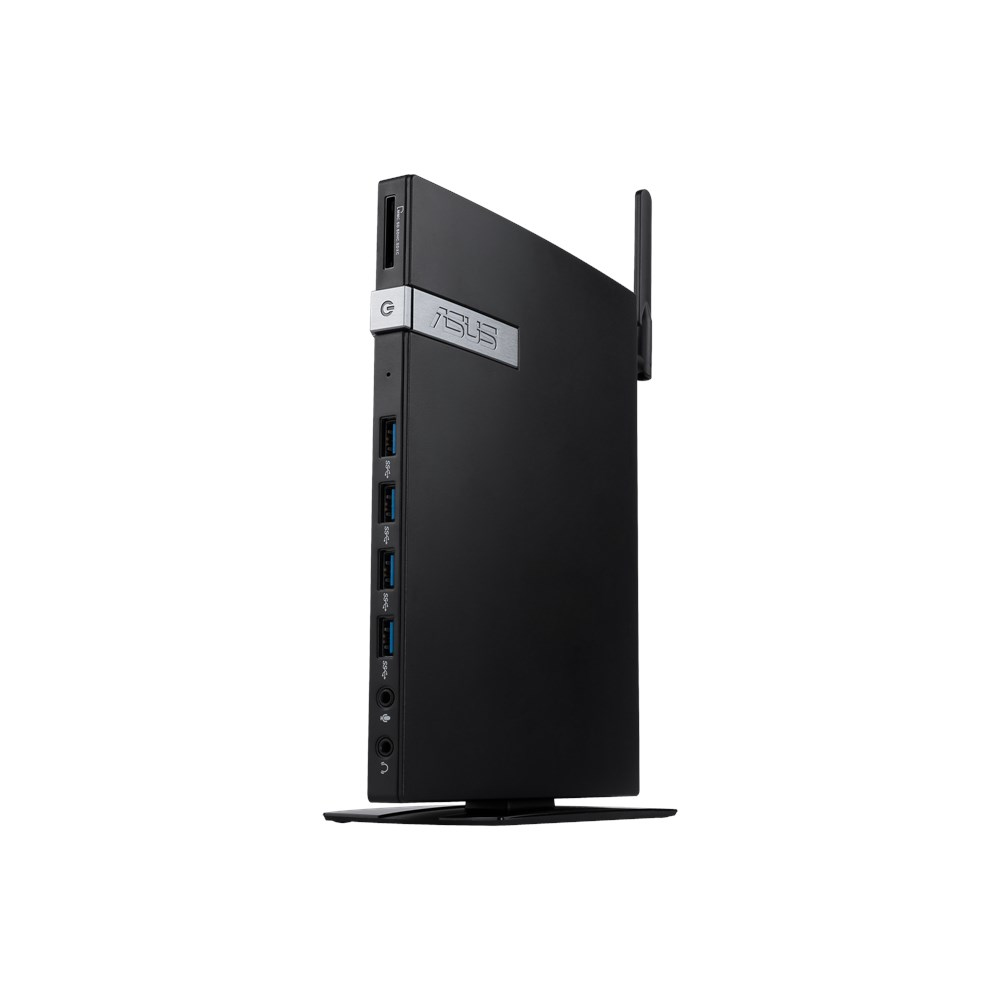

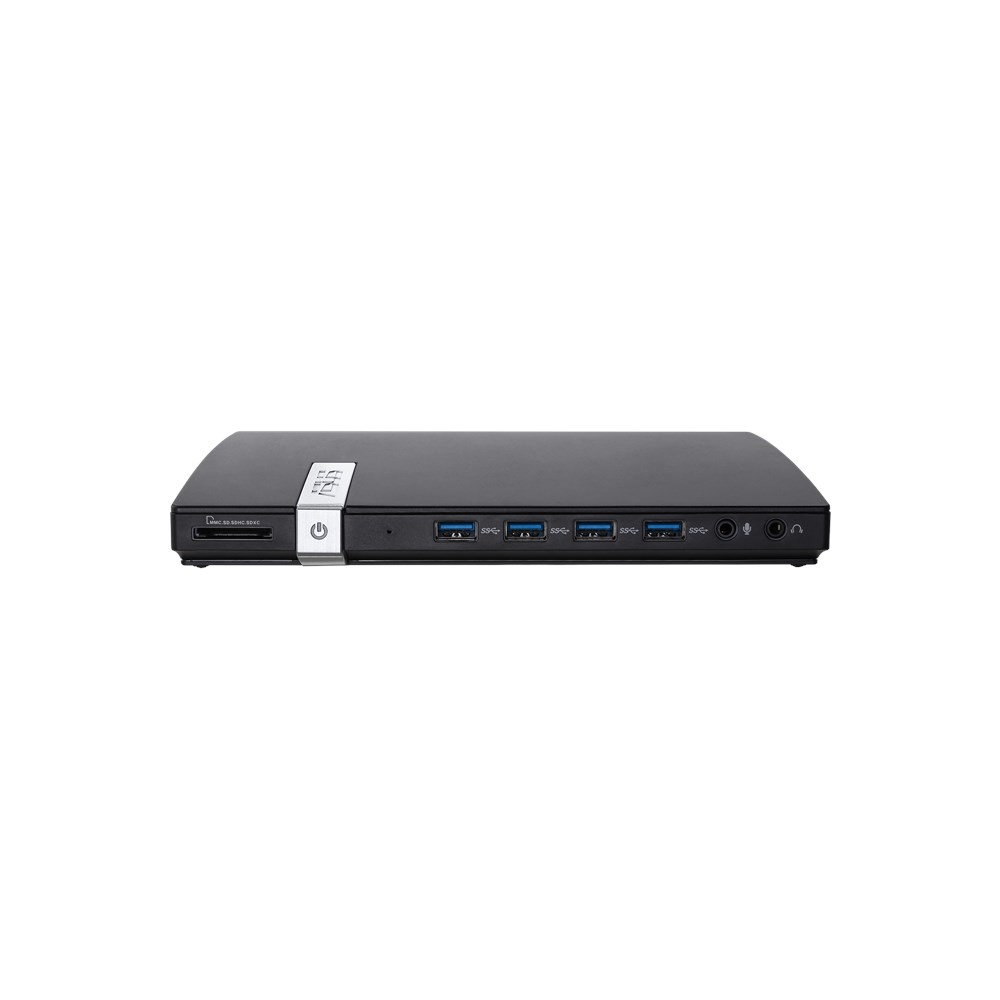

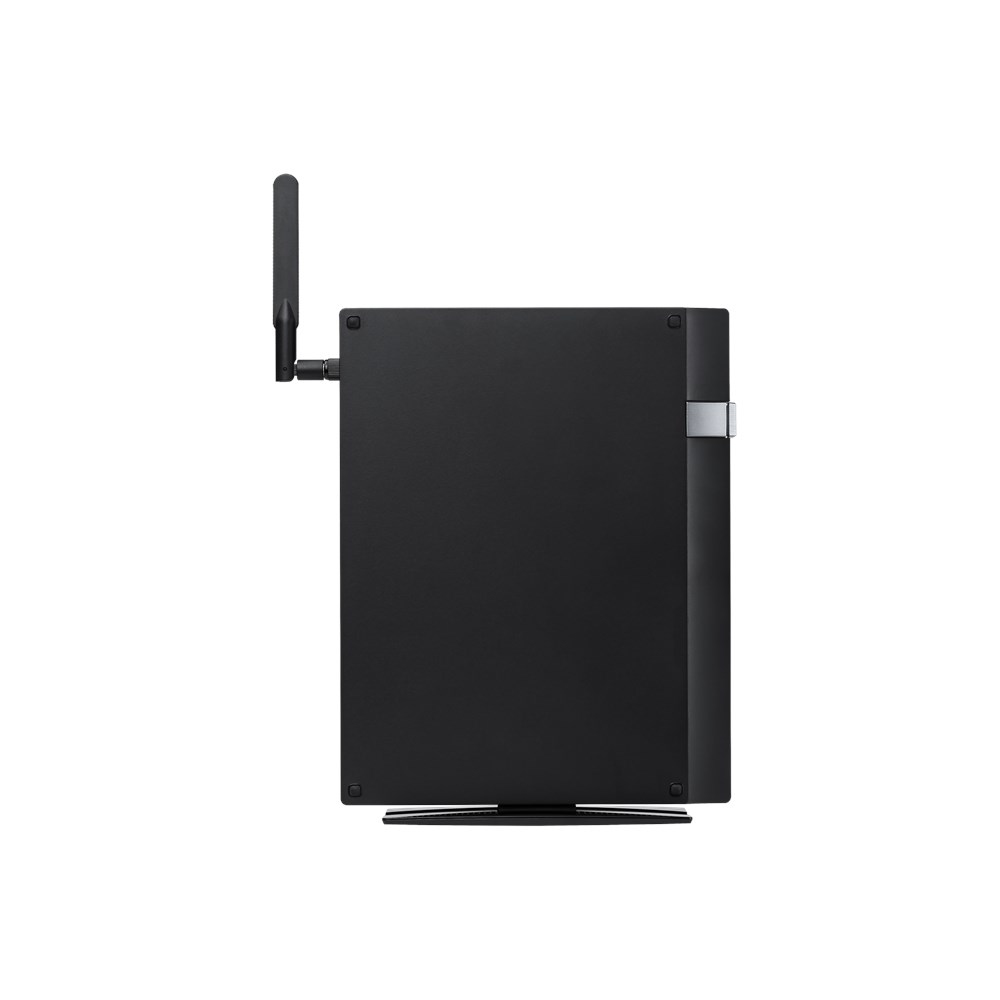

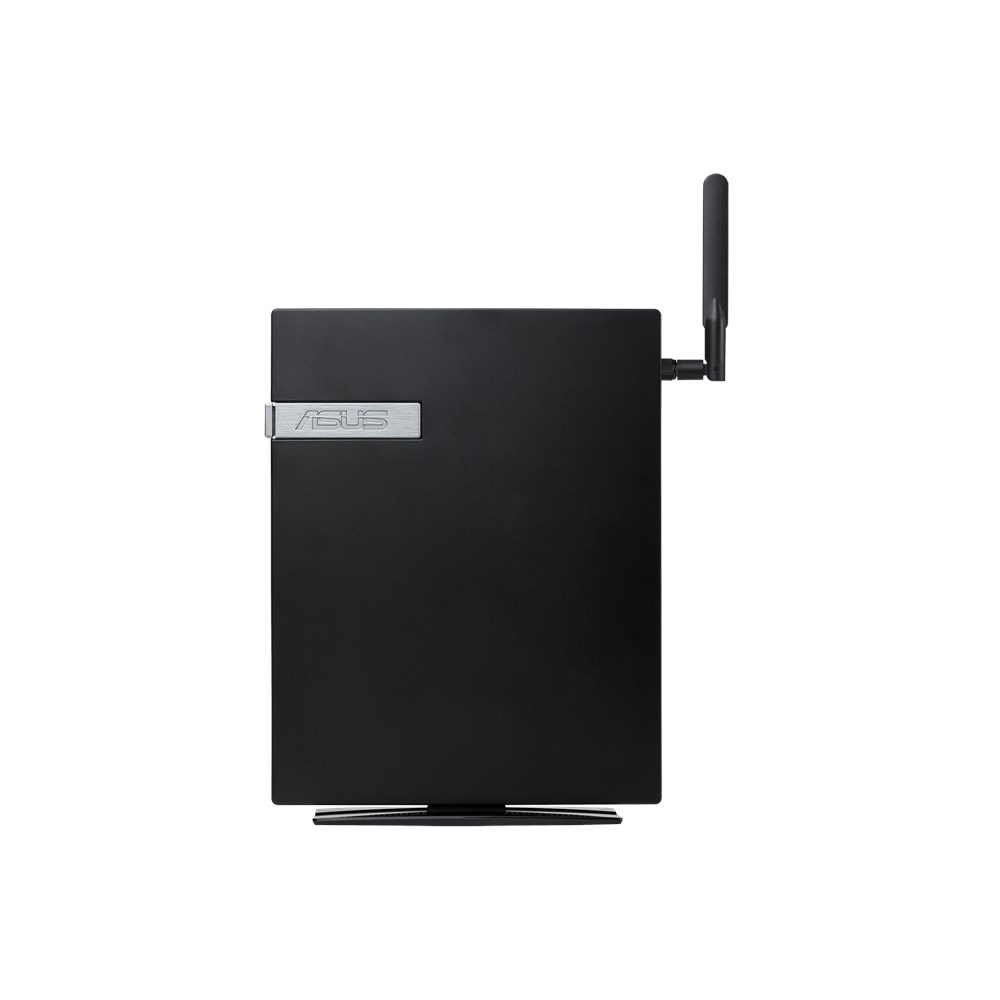

ASUS E420 1L sized PC Black N3865 BGA 1356
Model E420Part no. 90MS0141-M00600EAN 889349940945
42 specifications
- ProcessorIntel® Celeron®
- Noise23.8 dB
- TypeMini PC barebone
- ColourBlack
- Built-in processorYes
- Memory slots typeSO-DIMM
Overview
- Processor
- Intel® Celeron®
- Noise
- 23.8 dB
- Type
- Mini PC barebone
- Colour
- Black
- Built-in processor
- Yes
- Memory slots type
- SO-DIMM
- Brand
- ASUS
- Category
- PC/Workstation Barebones
- Model
- E420
- Part number
- 90MS0141-M00600
- EAN / UPC
- 889349940945
- Also known as
- ASUS E420 1L sized PC Black N3865 BGA 1356
Specifications
42 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor family | Intel® Celeron® |
| Processor model | N3865 |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Supported memory clock speeds | 2133 MHz |
| Supported memory types | DDR4-SDRAM |
Storage
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5" |
| Storage drive interface | M.2, Serial ATA |
| Card reader integrated | Yes |
| Compatible memory cards | MMC, SD, SDHC, SDXC |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Number of displays supported | 2 |
Performance
| Specification | Value |
|---|---|
| Processor socket | BGA 1356 |
| Number of processors supported | 1 |
| Trusted Platform Module (TPM) | Yes |
| Noise level (idle) | 23.8 dB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |

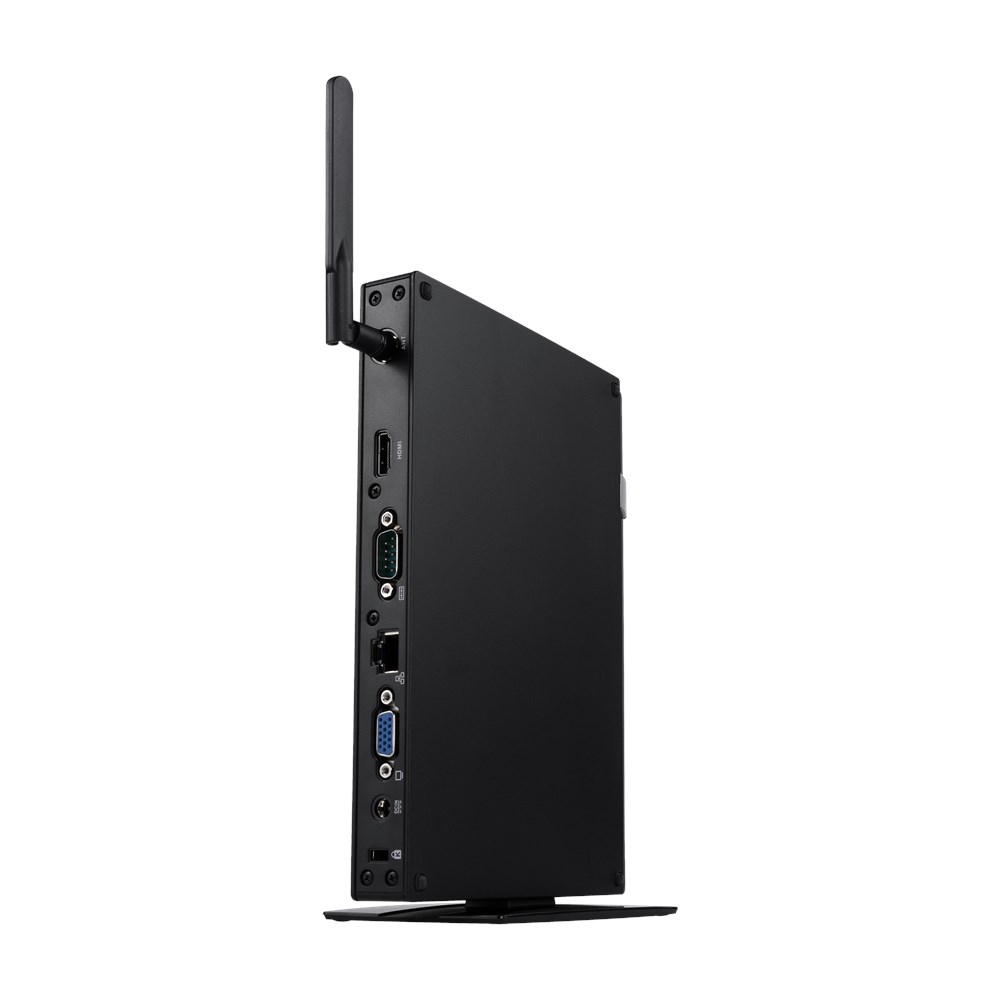

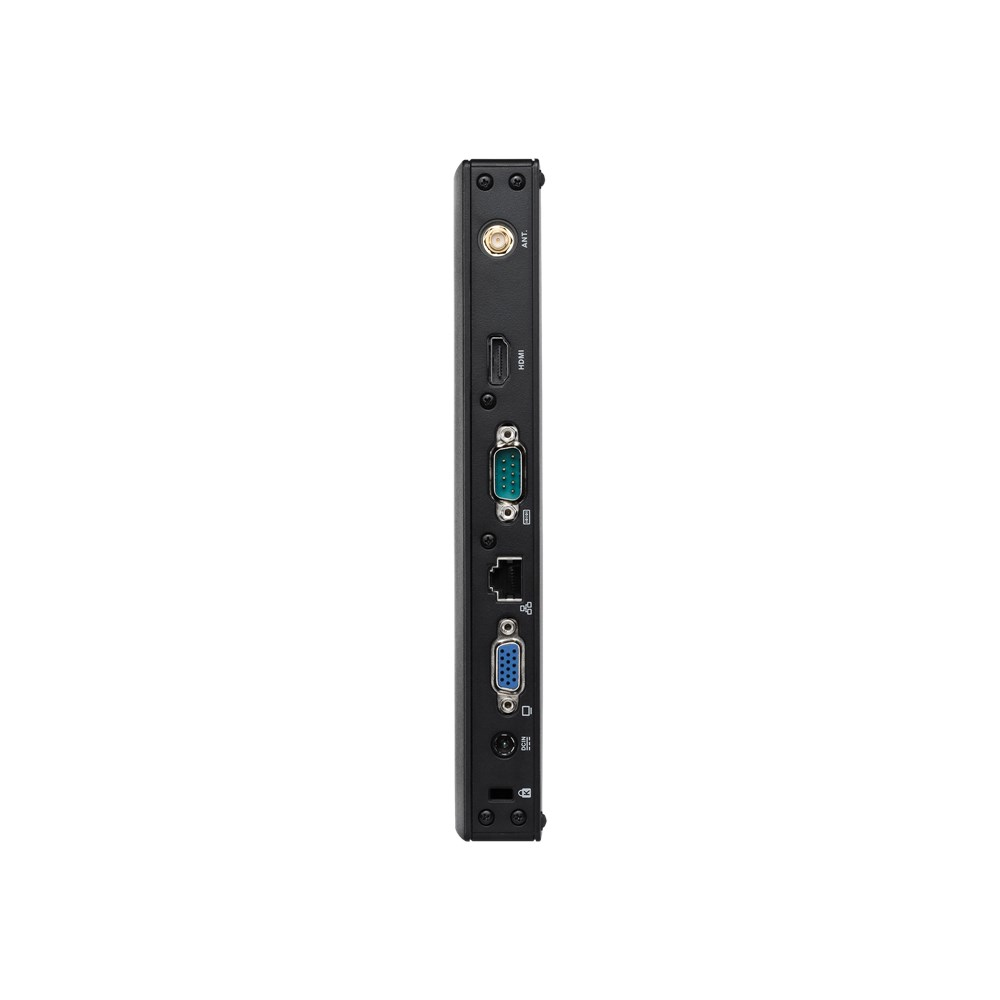

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Serial ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | 1L sized PC |
| Product colour | Black |
| On/off switch | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |

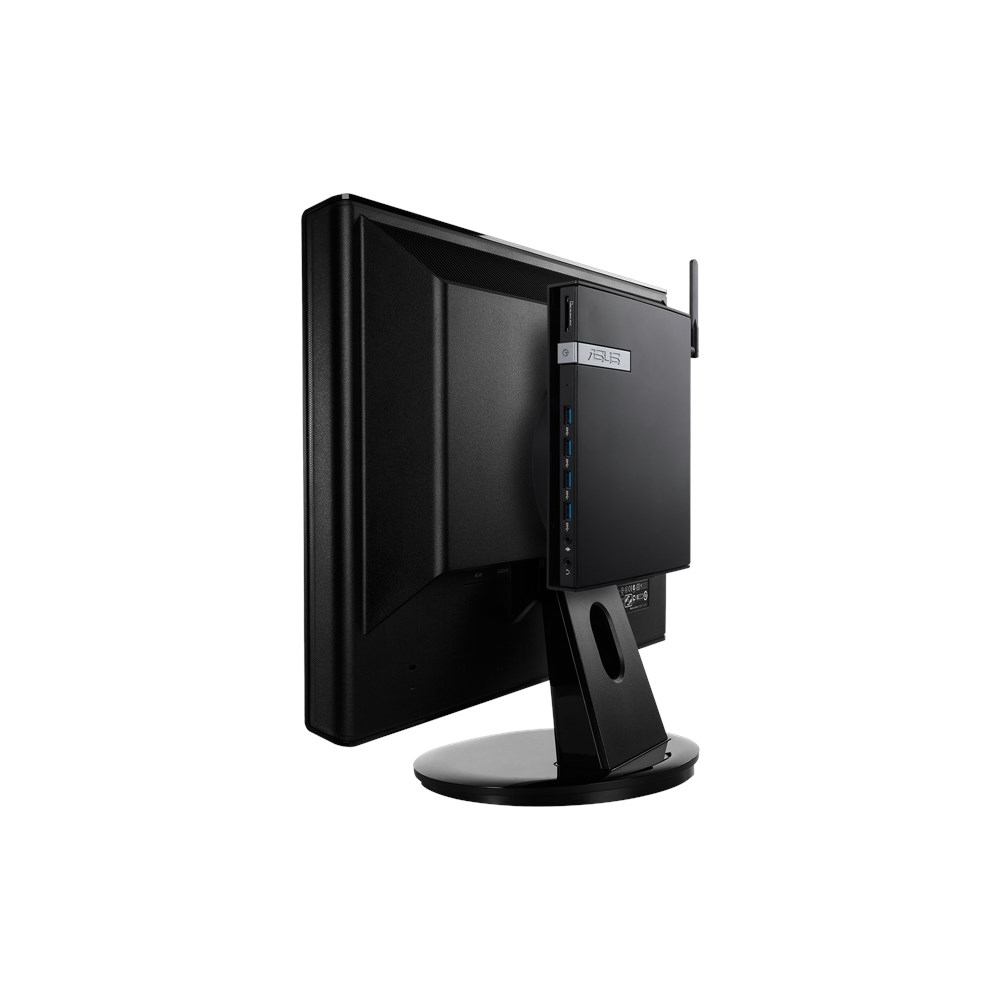

| VESA mounting | Yes |
| Product type | Mini PC barebone |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 10 Pro |
Power
| Specification | Value |
|---|---|
| Power supply type | External AC adapter |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 220 mm |
| Depth | 175 mm |
| Height | 29 mm |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Quick start guide | Yes |
