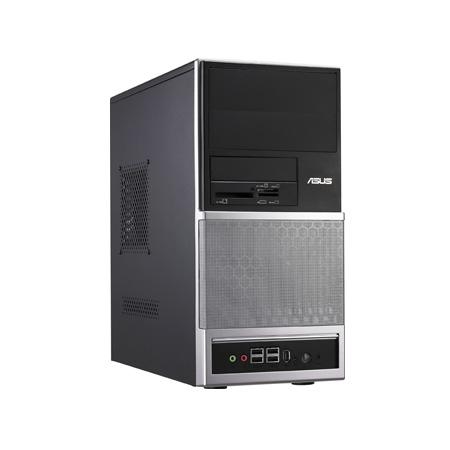

Barebone V3-P5G33
Model Barebone V3-P5G33Part no. AS V3-P5G33 ID1
18 specifications
- Maximum internal memory8 GB
- Number of storage drives supported6
- Motherboard chipsetIntel® G33 Express
- USB 2.0 ports quantity10
- Chassis typeMini-Tower
- Power supply300 W
Overview
- Maximum internal memory
- 8 GB
- Number of storage drives supported
- 6
- Motherboard chipset
- Intel® G33 Express
- USB 2.0 ports quantity
- 10
- Chassis type
- Mini-Tower
- Power supply
- 300 W
- Brand
- ASUS
- Category
- PC/Workstation Barebones
- Model
- Barebone V3-P5G33
- Part number
- AS V3-P5G33 ID1
- Also known as
- ASUS Barebone V3-P5G33 Mini-Tower Intel® G33 Express LGA 775 (Socket T)
Specifications
18 specifications in 7 groups
Memory
| Specification | Value |
|---|---|
| Maximum internal memory | 8 GB |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 6 |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® G33 Express |
| Processor socket | LGA 775 (Socket T) |
| Supported processor frequency (max) | 1.333 GHz |
| Audio system | Realtek ALC883 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 10 |
| VGA (D-Sub) ports quantity | 1 |
| Microphone in | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Firewire (IEEE 1394) ports | 1 |
| PS/2 ports quantity | 1 |
| Parallel ports quantity | 1 |
| S/PDIF out port | Yes |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini-Tower |
Power
| Specification | Value |
|---|---|
| Power supply | 300 W |
Other features
| Specification | Value |
|---|---|
| Number of processors installed | 1 |
| Dimensions (WxDxH) | 168 x 380 x 354 mm |
