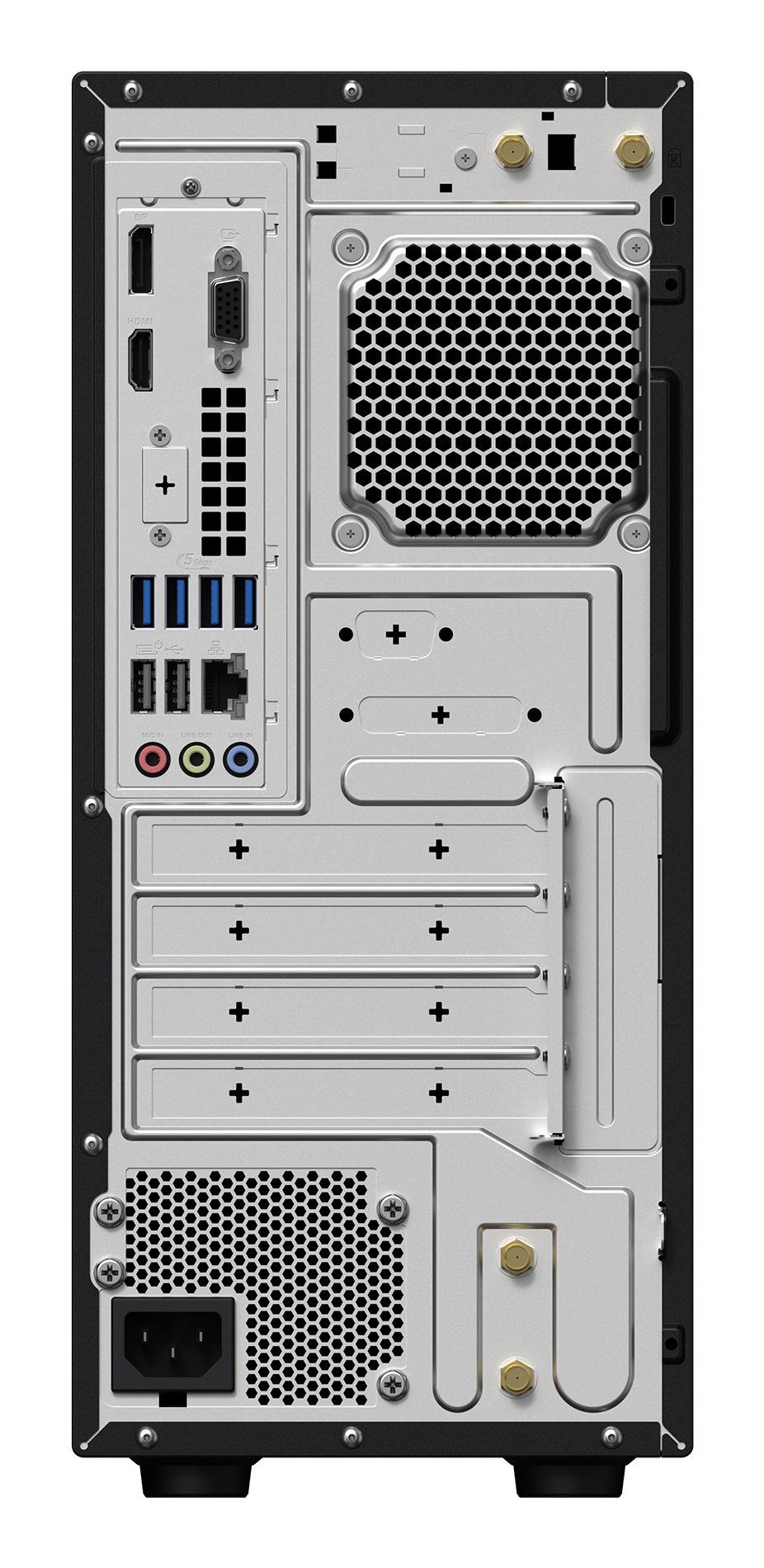

ExpertCenter B900MF-0072650010 Mini-Tower Black 265 Intel® Q870
Model B900MF-0072650010Part no. 90PF05F1-M002F0EAN 199291208810
67 specifications
- ProcessorIntel Core Ultra 7
- TypePC barebone
- Weight6 kg
- ColourBlack
- Built-in processorYes
- Storage drives installedNo
Overview
- Processor
- Intel Core Ultra 7
- Type
- PC barebone
- Weight
- 6 kg
- Colour
- Black
- Built-in processor
- Yes
- Storage drives installed
- No
- Brand
- ASUS
- Category
- PC/Workstation Barebones
- Model
- B900MF-0072650010
- Part number
- 90PF05F1-M002F0
- EAN / UPC
- 199291208810, 4711636208819
- Also known as
- ASUS ExpertCenter B900MF-0072650010 Mini-Tower Black 265 Intel® Q870
Specifications
67 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 7 |
| Processor generation | Intel Core Ultra (Series 2) |
| Processor model | 265 |
| Processor cores | 20 |
| Processor threads | 20 |
| Processor boost frequency | 5.3 GHz |
| Performance cores | 8 |
| Efficient cores | 12 |
| Low Power Efficient-cores | 0 |
| Performance-core Max Turbo Frequency | 5.2 GHz |
| Efficient-core Max Turbo Frequency | 4.6 GHz |
| Performance-core base frequency | 2.4 GHz |
| Efficient-core base frequency | 1.8 GHz |
| Processor cache | 30 MB |
Memory
| Specification | Value |
|---|---|
| Internal memory installed | Yes |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Maximum internal memory | 128 GB |
| Supported memory clock speeds | 5600 MHz |
| Supported memory types | DDR5-SDRAM |
Storage
| Specification | Value |
|---|---|
| Storage drives installed | No |
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | M.2,3.5 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® Graphics |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® Q870 |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Audio output channels | 7.1 channels |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| LAN controller | Intel WGI219LM |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| VGA (D-Sub) ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Combo headphone/mic port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Number of SATA III connectors | 4 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 3.0, 4.0 |
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini-Tower |
| Product colour | Black |
| Cooling type | Active |
| On/off switch | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product type | PC barebone |
Power
| Specification | Value |
|---|---|
| Power supply type | External AC adapter |
| Power supply | 500 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 155 mm |
| Depth | 296 mm |
| Height | 347 mm |
| Weight | 6 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
| Keyboard included | Yes |
