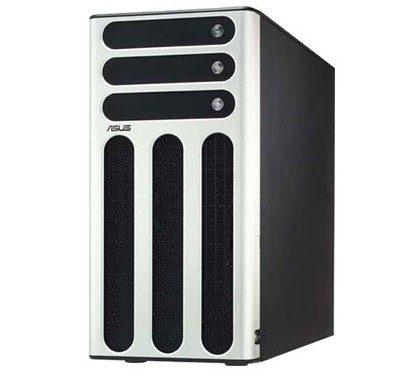

AP130-E1/AA4 Full-Tower
Model AP130-E1/AA4Part no. 90S1RA0000C210UE
19 specifications
- Weight18 kg
- Maximum internal memory4 GB
- Maximum graphics card memory8 MB
- Supported processor frequency (max)3.2 GHz
- Networking featuresIntel PRO/1000 CT
- USB 2.0 ports quantity4
Overview
- Weight
- 18 kg
- Maximum internal memory
- 4 GB
- Maximum graphics card memory
- 8 MB
- Supported processor frequency (max)
- 3.2 GHz
- Networking features
- Intel PRO/1000 CT
- USB 2.0 ports quantity
- 4
- Brand
- ASUS
- Category
- PC/Workstation Barebones
- Model
- AP130-E1/AA4
- Part number
- 90S1RA0000C210UE
- Also known as
- ASUS AP130-E1/AA4 Full-Tower
Specifications
19 specifications in 12 groups
Memory
| Specification | Value |
|---|---|
| Maximum internal memory | 4 GB |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 8 MB |
Performance
| Specification | Value |
|---|---|
| Supported processor frequency (max) | 3.2 GHz |
Network
| Specification | Value |
|---|---|
| Networking features | Intel PRO/1000 CT |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Serial ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Full-Tower |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 2000 Windows 2003 Server Standard Edition Windows 2003 Server Web Edition Windows SBS 2003 Redhat 9.0 Redhat Advance Server 3.0 SUSE Enterprise Server 8.0 |
Certificates
| Specification | Value |
|---|---|
| Certification | TUV / CE, EN55022 compliance to EU Directive 89 / 366/ EEC |
Power
| Specification | Value |
|---|---|
| Power supply | 350 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 18 kg |
Other features
| Specification | Value |
|---|---|
| Number of processors installed | 1 |
| Dimensions (WxDxH) | 431 x 220 x 510 mm |
| Expansion slots | 3x 32bit/33MHz PCI 2x 64bit/66MHz PCI-X |
| Storage drive controller | SCSI: LSI Ultra320; SATA: Intel 6300ESB, Promise PDC20319 |
