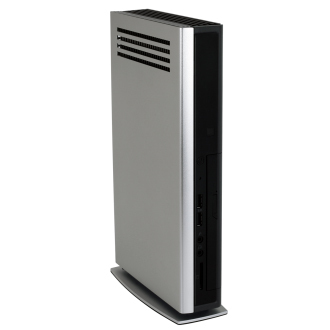

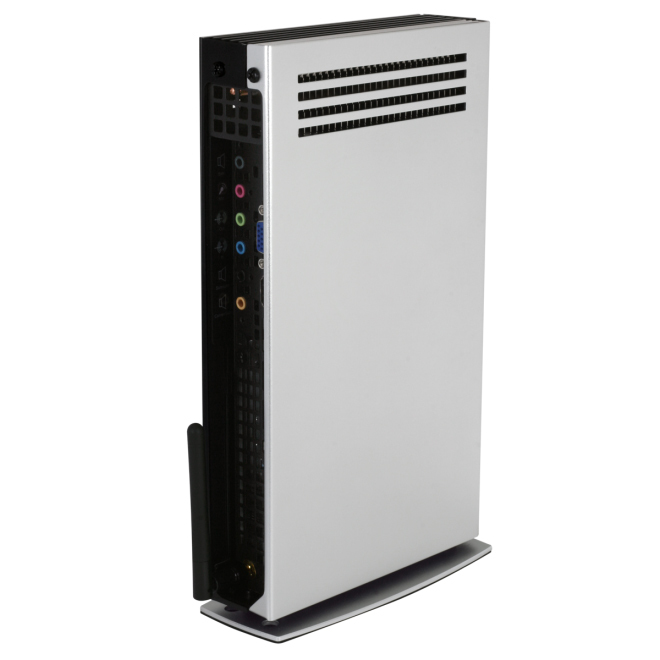

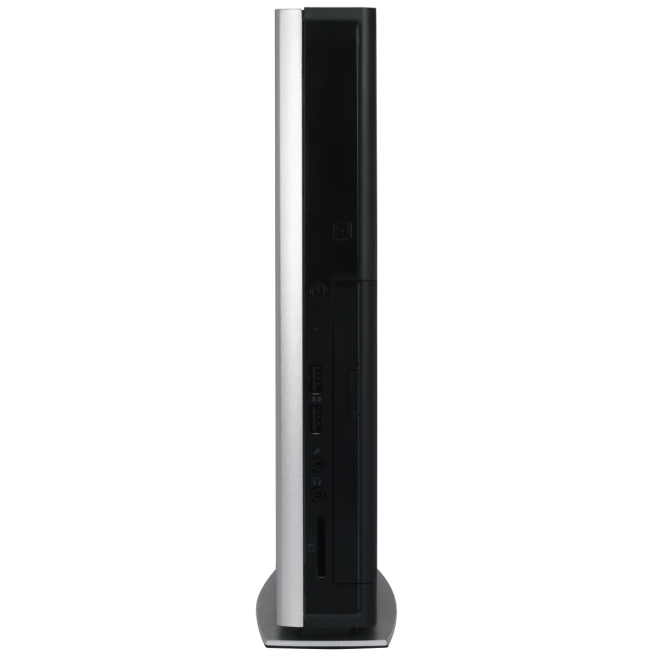

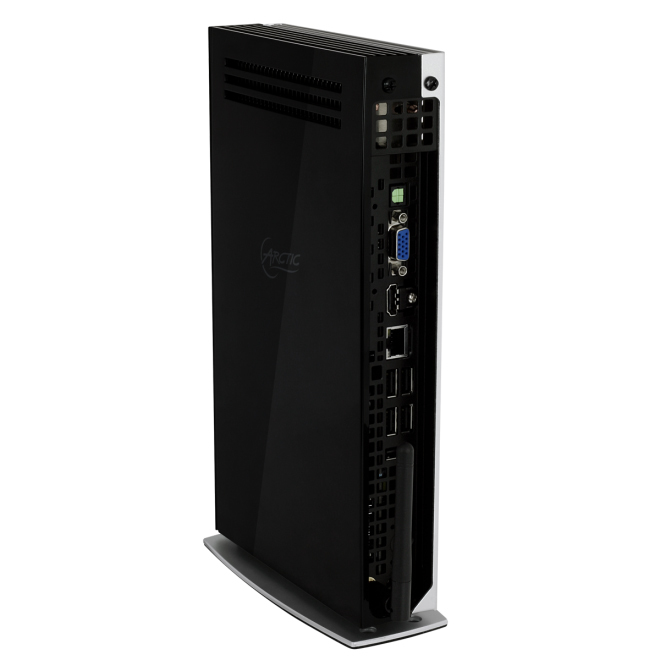

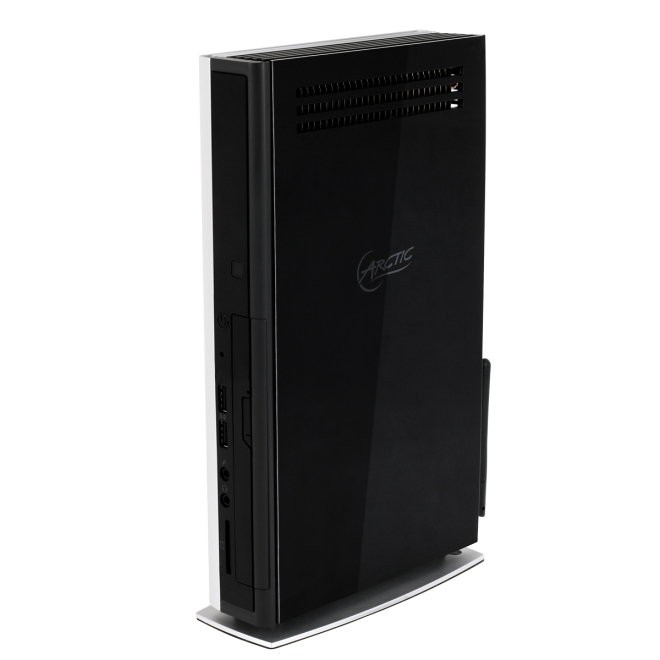

ARCTIC MC001-E - Media Center
Model MC001-EPart no. DPACO-MC10301-GB
71 specifications
- ProcessorIntel Atom®
- Memory0 GB
- GraphicsAMD Radeon HD 5430
- TypeMini PC barebone
- Weight2.5 kg
- Built-in processorYes
Overview
- Processor
- Intel Atom®
- Memory
- 0 GB
- Graphics
- AMD Radeon HD 5430
- Type
- Mini PC barebone
- Weight
- 2.5 kg
- Built-in processor
- Yes
- Brand
- ARCTIC
- Category
- PC/Workstation Barebones
- Model
- MC001-E
- Part numbers
- DPACO-MC10301-GB, DPACO-MC11301-GB
- Also known as
- ARCTIC MC001-E - Media Center
Specifications
71 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel Atom® |
| Processor model | D525 |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor frequency | 1.8 GHz |
| Processor lithography | 45 nm |
| L2 cache | 1 MB |
| Thermal Design Power (TDP) | 13 W |
| Processor codename | Pineview |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Internal memory | 0 GB |
| Maximum internal memory | 8 GB |
| Supported memory clock speeds | 800,1066,1333 MHz |
| Supported memory types | DDR3-SDRAM |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 1 |
| Card reader integrated | Yes |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® GMA 3150 |
| Discrete graphics card model | AMD Radeon HD 5430 |
| Graphics card memory type | GDDR3 |
| Maximum graphics card memory | 512 MB |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel NM10 |
| Processor socket | BGA 559 |
| Compatible processor series | Intel Atom® |
| Supported processor frequency (max) | 1.8 GHz |
| Built-in camera | No |
| Audio output channels | 7.1 channels |
| Audio system | Realtek ALC892 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 100BASE-T, 1000BASE-T, 1000BASE-TX |
| Networking features | Gigabit Ethernet |

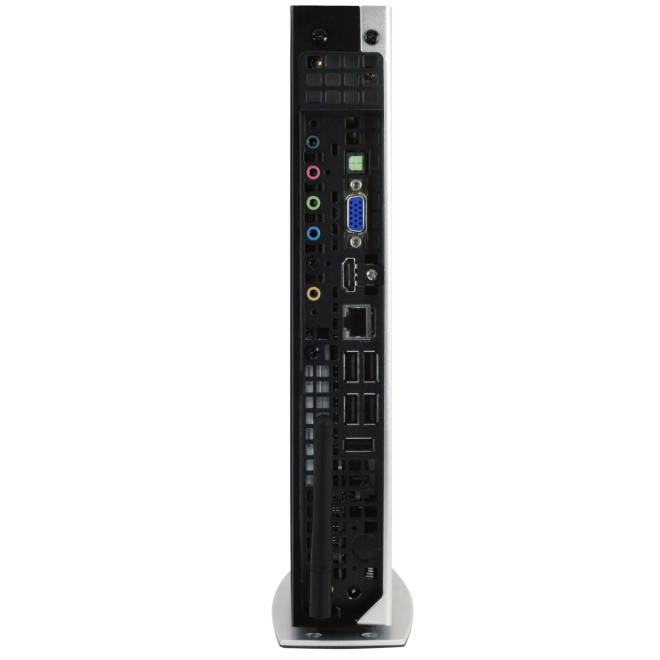

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| S/PDIF out port | Yes |
Design
| Specification | Value |
|---|---|
| Chassis type | SFF |
| Cooling type | Passive |
| On/off switch | Yes |
| LED indicators | Yes |
| Product type | Mini PC barebone |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | No |
| Execute Disable Bit | Yes |
| Idle States | No |
| Intel 64 | Yes |
| Intel Demand Based Switching | No |
| Intel Trusted Execution Technology | No |
| Intel Virtualization Technology (VT-x) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | No |
| Thermal Monitoring Technologies | No |
Power
| Specification | Value |
|---|---|
| Power supply | 60 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Other features
| Specification | Value |
|---|---|
| Number of processors installed | 1 |
| Dimensions (WxDxH) | 65 x 275 x 161 mm |
| HDD size | 2.5" |
| Power LED | Yes |
| Power requirements | 19V DC |
