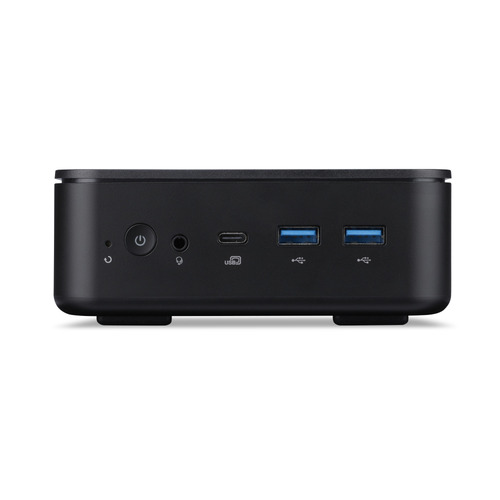

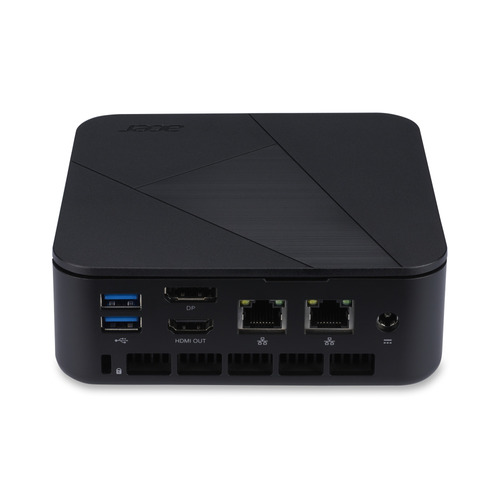

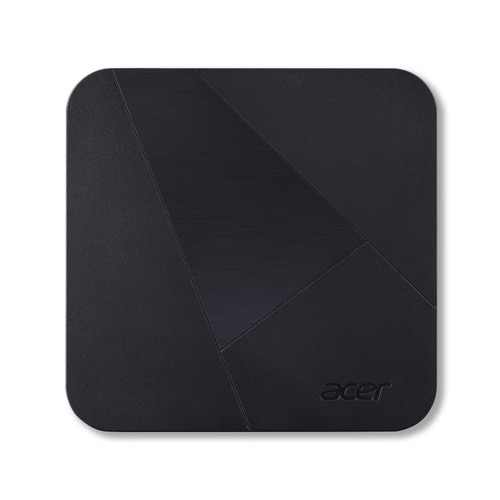

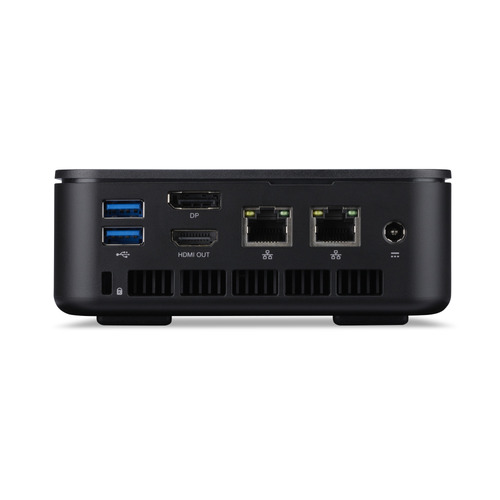

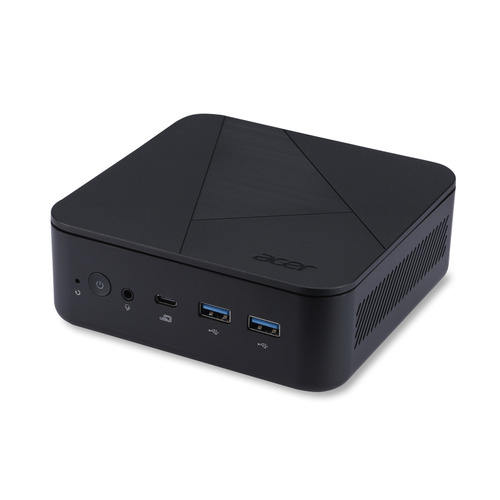

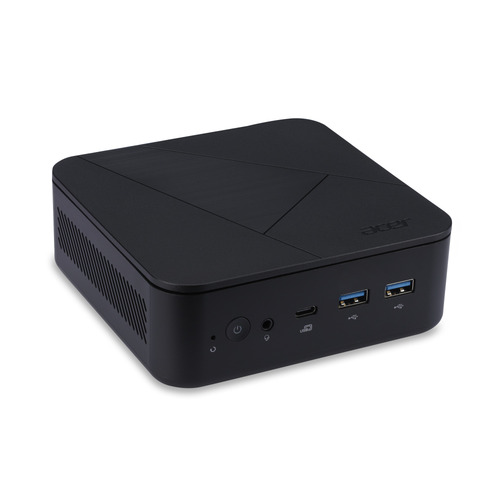

VN1502G U5 125H NUC
Model VN1502G U5 125H NUCPart no. DT.R5NEK.001EAN 4711474730787
74 specifications
- ProcessorIntel Core Ultra 5
- GraphicsNot available
- SpeedWi-Fi 6 (802.11ax)
- TypeMini PC barebone
- Weight1.24 kg
- ColourBlack
Overview
- Processor
- Intel Core Ultra 5
- Graphics
- Not available
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- Mini PC barebone
- Weight
- 1.24 kg
- Colour
- Black
- Brand
- Acer
- Category
- PC/Workstation Barebones
- Model
- VN1502G U5 125H NUC
- Part number
- DT.R5NEK.001
- EAN / UPC
- 4711474730787
- Also known as
- Acer Veriton NUC Barebones SFF PC (VN1502G) - Intel Core Ultra 5, No RAM, No Storage, No OS
Specifications
74 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 5 |
| Processor generation | Intel® Core™ Ultra (Series 1) |
| Processor model | 125H |
| Processor cores | 14 |
| Processor threads | 18 |
| Processor boost frequency | 4.5 GHz |
| Processor frequency | 0.7 GHz |
| Performance cores | 4 |
| Efficient cores | 8 |
| Low Power Efficient-cores | 2 |
| Performance-core Max Turbo Frequency | 4.5 GHz |
| Efficient-core Max Turbo Frequency | 3.6 GHz |
| Low Power Efficient-core Max Turbo Frequency | 2.5 GHz |
| Performance-core base frequency | 1.2 GHz |
| Efficient-core base frequency | 0.7 GHz |
| Low Power Efficient-core Base Frequency | 0.7 MHz |
| Processor cache | 18 MB |
Memory
| Specification | Value |
|---|---|
| Internal memory installed | No |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 64 GB |
| Memory channels | Dual-channel |
| Supported memory types | DDR5-SDRAM |
Storage
| Specification | Value |
|---|---|
| Storage drives installed | No |
| Supported storage drive types | SSD |
| Storage drive sizes supported | M.2 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| SSD form factor | M.2 |
| Storage drive interface | PCI Express |
| Number of storage drives supported | 1 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel Arc Graphics |
| Discrete graphics card model | Not available |
Performance
| Specification | Value |
|---|---|
| Motherboard form factor | NUC |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| Headphone outputs | 1 |
| Combo headphone/mic port | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | 0.73L sized PC |
| Product colour | Black |
| On/off switch | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| VESA mounting | Yes |
| Product type | Mini PC barebone |
Power
| Specification | Value |
|---|---|
| Power supply type | External AC adapter |
| Power supply | 65 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 131 mm |
| Depth | 131 mm |
| Height | 43 mm |
| Weight | 1.24 kg |
| Package width | 370 mm |
| Package depth | 490 mm |
| Package height | 410 mm |
| Package weight | 1.4 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Display included | No |
| Mouse included | No |
| Keyboard included | No |
Other features
| Specification | Value |
|---|---|
| Country of origin | China |
