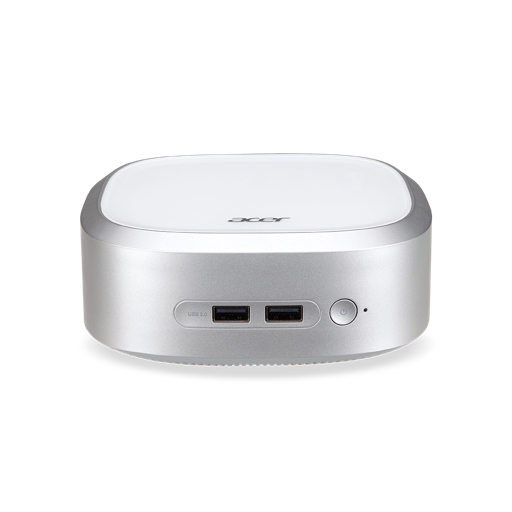

Acer Revo Base RN66 Silver i5-5200U BGA 1168

2.2 GHz

Model RN66Part no. DT.B7KEG.001EAN 4058154205761

79 specifications

ProcessorIntel® Core™ i5
TypeMini PC barebone
OSNo
Weight1.5 kg
ColourSilver
Built-in processorYes

See all specifications

Overview

Processor: Intel® Core™ i5
Type: Mini PC barebone
OS: No
Weight: 1.5 kg
Colour: Silver
Built-in processor: Yes

Brand: Acer
Category: PC/Workstation Barebones
Model: RN66
Part numbers: DT.B7KEG.001, DT.B7LEG.002
EAN / UPC: 4058154205761, 4713392917417, 4713392917424
Also known as: Acer Revo Base RN66 Silver i5-5200U BGA 1168 2.2 GHz

Specifications

79 specifications in 16 groups

Processor

Specification	Value
Built-in processor	Yes
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	5th gen Intel® Core™ i5
Processor model	i5-5200U
Processor cores	2
Processor threads	4
Processor boost frequency	2.7 GHz
Processor frequency	2.2 GHz
Processor lithography	14 nm
Thermal Design Power (TDP)	15 W
CPU configuration (max)	1
Processor codename	Broadwell
Processor series	Intel® Core™ i5-5200 Mobile Series

Memory

Specification	Value
Number of memory slots	2
Maximum internal memory	16 GB

Storage

Specification	Value
Card reader integrated	Yes

Graphics

Specification	Value
On-board graphics card	Yes
Graphics card family	Intel
On-board graphics card model	Intel® HD Graphics 5500

Performance

Specification	Value
Processor socket	BGA 1168
Compatible processor series	Intel® Core™ i5
Supported processor frequency (max)	2.7 GHz
Optical drive type	No

Network

Specification	Value
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
HDMI ports quantity	1
VGA (D-Sub) ports quantity	0
DVI port	No
DisplayPorts quantity	1
Headphone outputs	1
Ethernet LAN (RJ-45) ports	1

Expansion slots

Specification	Value
PCI Express slots version	2.0
PCI Express configurations	4x1, 2x4

Design

Specification	Value
Product colour	Silver
VESA mounting	Yes
Product type	Mini PC barebone

Processor special features

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	2.0
Intel® Wireless Display (Intel® WiDi)	Yes
Thermal Monitoring Technologies	Yes

Software

Specification	Value
Operating system installed	No

Certificates

Specification	Value
Certification	BSMI, CE, FCC, CB, RoHS

Power

Specification	Value
Power supply	45 W

Weight & dimensions

Specification	Value
Width	140 mm
Depth	140 mm
Height	53 mm
Weight	1.5 kg

Packaging content

Specification	Value
Display included	No

Other features

Specification	Value
Number of processors installed	1
