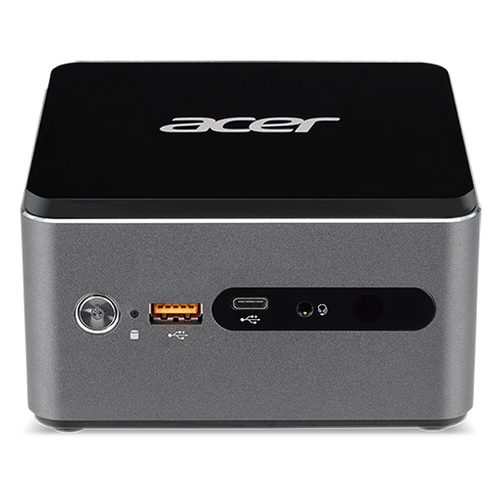

Acer Revo Cube Pro
Model Revo Cube ProPart no. DT.VRPEG.001EAN 4058154324202
73 specifications
- ProcessorIntel® Core™ i3
- TypeMini PC
- OSFreeDOS
- Weight1.45 kg
- ColourBlack, Silver
- Built-in processorYes
Overview
- Processor
- Intel® Core™ i3
- Type
- Mini PC
- OS
- FreeDOS
- Weight
- 1.45 kg
- Colour
- Black, Silver
- Built-in processor
- Yes
- Brand
- Acer
- Category
- PC/Workstation Barebones
- Model
- Revo Cube Pro
- Part numbers
- DT.VRPEG.001, DT.VRNEG.001
- EAN / UPC
- 4058154324202, 4058154260876, 4713883624763, 4713883624510
- Also known as
- Acer Revo Cube Pro Desktop Black, Silver i3-7130U 2.7 GHz
Specifications
73 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i3 |
| Processor generation | 7th gen Intel® Core™ i3 |
| Processor model | i3-7130U |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor frequency | 2.7 GHz |
| Processor lithography | 14 nm |
| Thermal Design Power (TDP) | 15 W |
| CPU configuration (max) | 1 |
| Processor codename | Kaby Lake |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 16 GB |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
Performance
| Specification | Value |
|---|---|
| Optical drive type | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 0 |
| DisplayPorts quantity | 1 |
| Combo headphone/mic port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x2+2x1, 1x4, 2x2, 4x1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Desktop |
| Product colour | Black, Silver |
| Cooling type | Active |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product type | Mini PC |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel TSX-NI | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Smart Response Technology | Yes |
| Intel® Turbo Boost Technology | No |
| Thermal Monitoring Technologies | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Software
| Specification | Value |
|---|---|
| Operating system installed | FreeDOS |
Power
| Specification | Value |
|---|---|
| Power supply type | External AC adapter |
| Power supply | 65 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 116.6 mm |
| Depth | 112 mm |
| Height | 67 mm |
| Weight | 1.45 kg |
Packaging content
| Specification | Value |
|---|---|
| Display included | No |
Other features
| Specification | Value |
|---|---|
| Number of processors installed | 1 |
What people say
Reviews & ratings
Acer Revo Cube Pro
No reviews yet
Be the first to tell others how Acer Revo Cube Pro works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Acer Revo Cube Pro
All pc/workstation barebones comparisons- Acer Revo Cube Pro vsAcer Revo Cube Pro VEN76GCompare specs
- Acer Revo Cube Pro vsAcer Veriton NUC VN1502G-13U3UCompare specs
- Acer Revo Cube Pro vsAcer Revo Base RN66 Silver i5-5200U BGA 1168Compare specs
- Acer Revo Cube Pro vsAcer N6640G 1L sized PC Black i3-6100T Intel® H110 LGA 1151 (Socket H4) 3.2 GHzCompare specs
- Acer Revo Cube Pro vsMSI Cubi 2 Plus 7M-015Compare specs
- Acer Revo Cube Pro vsMSI Cubi 3 Silent S-019BUSCompare specs
- Acer Revo Cube Pro vsASUS VivoMini UN62-E227M Blue i3-4010U BGA 1168Compare specs
- Acer Revo Cube Pro vsGIGABYTE GA-H110MSTX-HD3-ZK PC/workstation bareboneCompare specs
Similar products
All pc/workstation barebones

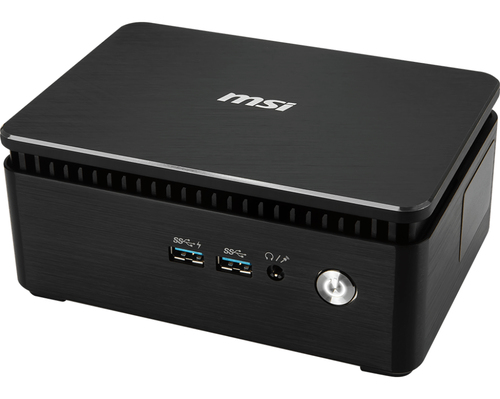

MSI
