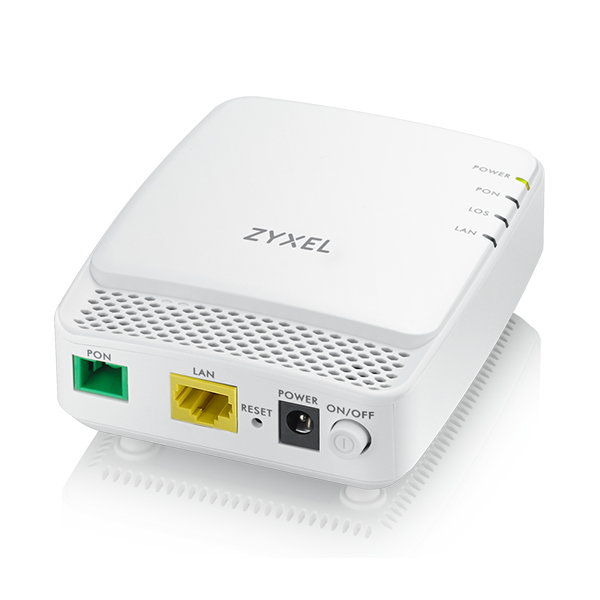

PMG1005-T20B
Model PMG1005-T20BPart no. PMG1005-T20B-ZZ01V1FEAN 4718937598076
22 specifications
- Weight113 g
- Switching capacity2.488 Gbit/s
- Networking standardsIEEE 802.1p
- DC voltage range12 V
- Operating temperature (T-T)0 - 45 °C
- Width109.4 mm
Overview
- Weight
- 113 g
- Switching capacity
- 2.488 Gbit/s
- Networking standards
- IEEE 802.1p
- DC voltage range
- 12 V
- Operating temperature (T-T)
- 0 - 45 °C
- Width
- 109.4 mm
- Brand
- Zyxel
- Category
- Optical Line Terminals (OLTs)
- Model
- PMG1005-T20B
- Part number
- PMG1005-T20B-ZZ01V1F
- EAN / UPC
- 4718937598076
- Also known as
- Zyxel PMG1005-T20B
Specifications
22 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Switching capacity | 2.488 Gbit/s |
| Multicast support | Yes |
| IGMP snooping | Yes |
| Multicast Listener Discovery (MLD) snooping | Yes |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p |
| Service ports | GPON |
| Ethernet LAN (RJ-45) ports | 1 |
| GPON ports quantity | 1 |
Power
| Specification | Value |
|---|---|
| DC voltage range | 12 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 109.4 mm |
| Depth | 83.6 mm |
| Height | 36.5 mm |
| Weight | 113 g |
Packaging data
| Specification | Value |
|---|---|
| Package depth | 130 mm |
| Package height | 342 mm |
| Package weight | 131 g |
| Package width | 95 mm |
