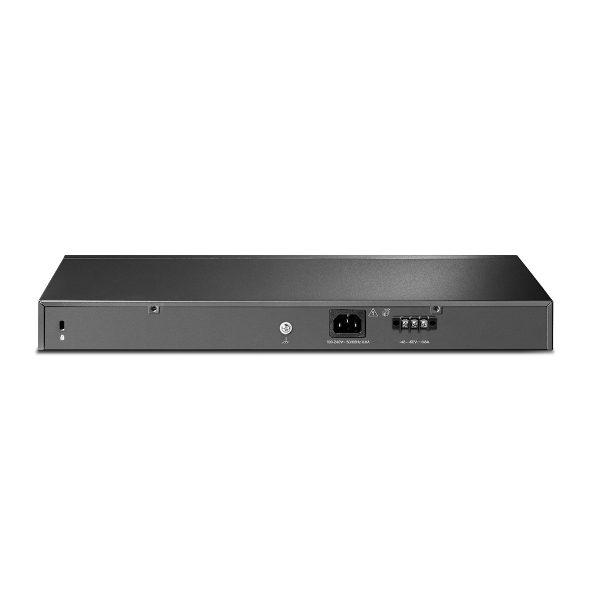

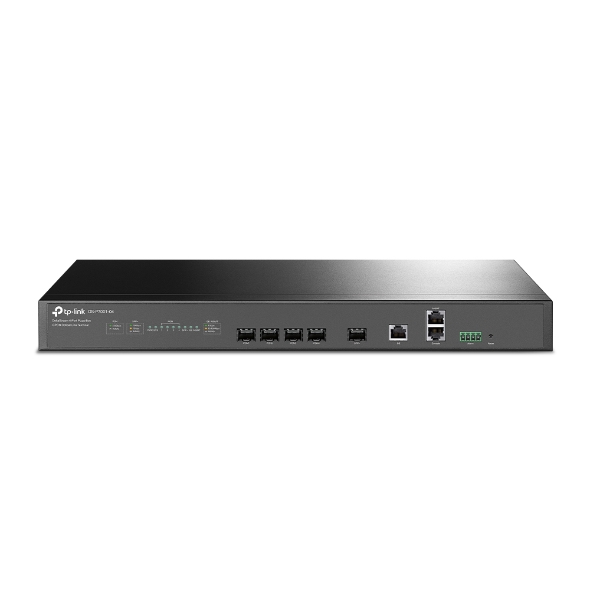

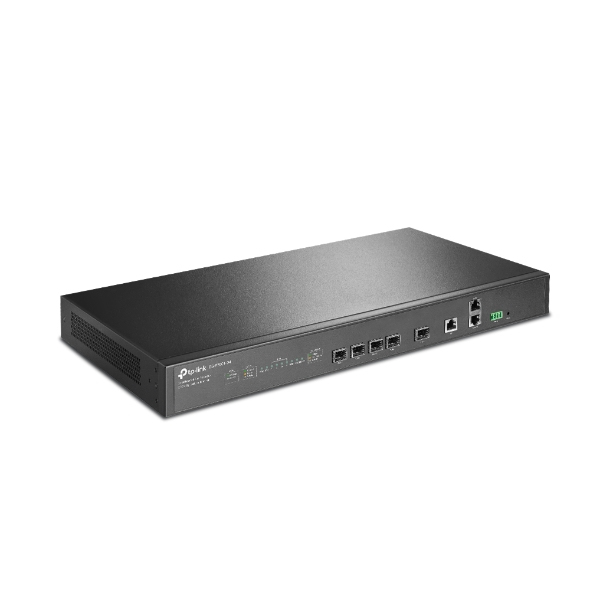

DeltaStream 4-port Pizza-box GPON Optical Line Terminal
Model DS-P7001-04EAN 840030703164
24 specifications
- Static routeYes
- Upstream portsGigabit Ethernet
- AC input voltage100 - 240 V
- Operating temperature (T-T)0 - 50 °C
- Width440 mm
Overview
- Static route
- Yes
- Upstream ports
- Gigabit Ethernet
- AC input voltage
- 100 - 240 V
- Operating temperature (T-T)
- 0 - 50 °C
- Width
- 440 mm
- Brand
- TP-Link
- Category
- Optical Line Terminals (OLTs)
- Model
- DS-P7001-04
- Part number
- DS-P7001-04
- EAN / UPC
- 840030703164, 4897098683156, 4897098683163
- Also known as
- TP-Link DeltaStream 4-port Pizza-box GPON Optical Line Terminal
Specifications
24 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| Static route | Yes |
| DHCP server | Yes |
| DHCP relay | Yes |
| IGMP snooping | Yes |
| Multicast Listener Discovery (MLD) snooping | Yes |
| Quality of Service (QoS) support | Yes |
| GPON split ratio (max) | 1:128 |
| Maximum operating distance (GPON) | 20000 m |
| Access Control List (ACL) | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Upstream ports | Gigabit Ethernet |
| Ethernet LAN (RJ-45) ports | 2 |
| GPON ports quantity | 4 |
| SFP/SFP+ slots quantity | 1 |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| DC voltage range | 38.4 - 72 V |
| Power consumption (max) | 58 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 180 mm |
| Height | 44 mm |
