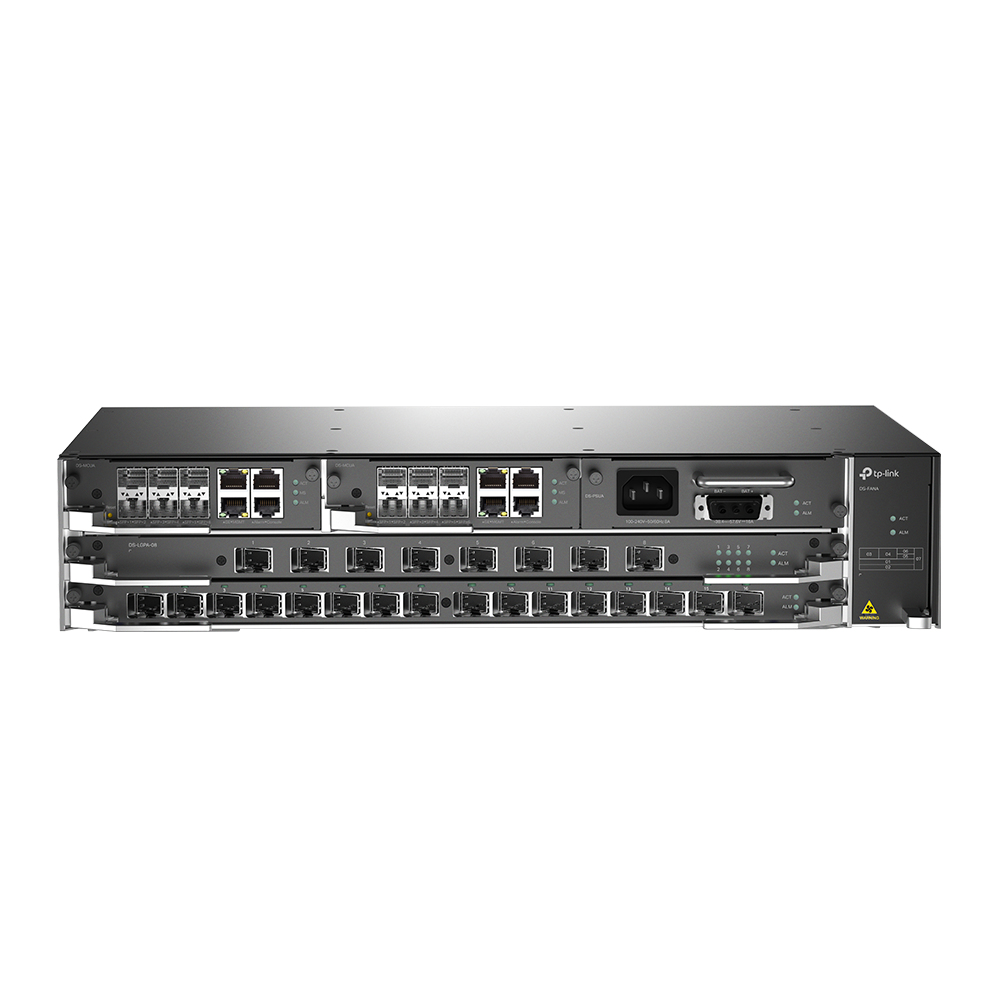

DeltaStream Chassis Optical Line Terminal-X2
Model DS-P8000-X2EAN 840030709364
23 specifications
- Switching capacity200 Gbit/s
- Networking standardsIEEE 802.1p
- AC input voltage100 - 240 V
- Operating temperature (T-T)0 - 50 °C
- Width446 mm
Overview
- Switching capacity
- 200 Gbit/s
- Networking standards
- IEEE 802.1p
- AC input voltage
- 100 - 240 V
- Operating temperature (T-T)
- 0 - 50 °C
- Width
- 446 mm
- Brand
- TP-Link
- Category
- Optical Line Terminals (OLTs)
- Model
- DS-P8000-X2
- Part number
- DS-P8000-X2
- EAN / UPC
- 840030709364, 1210002607599, 4897098689363
- Also known as
- TP-Link DeltaStream Chassis Optical Line Terminal-X2
Specifications
23 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Switching capacity | 200 Gbit/s |
| Switch layer | L2/L3 |
| Static route | Yes |
| DHCP relay | Yes |
| Multicast support | Yes |
| IGMP snooping | Yes |
| Multicast Listener Discovery (MLD) snooping | Yes |
| Quality of Service (QoS) support | Yes |
| Access Control List (ACL) | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p |
| Ethernet LAN (RJ-45) ports | 8 |
| GPON ports quantity | 32 |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| DC voltage range | -38.4 - -57.6 V |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 446 mm |
| Depth | 271.3 mm |
| Height | 88 mm |
