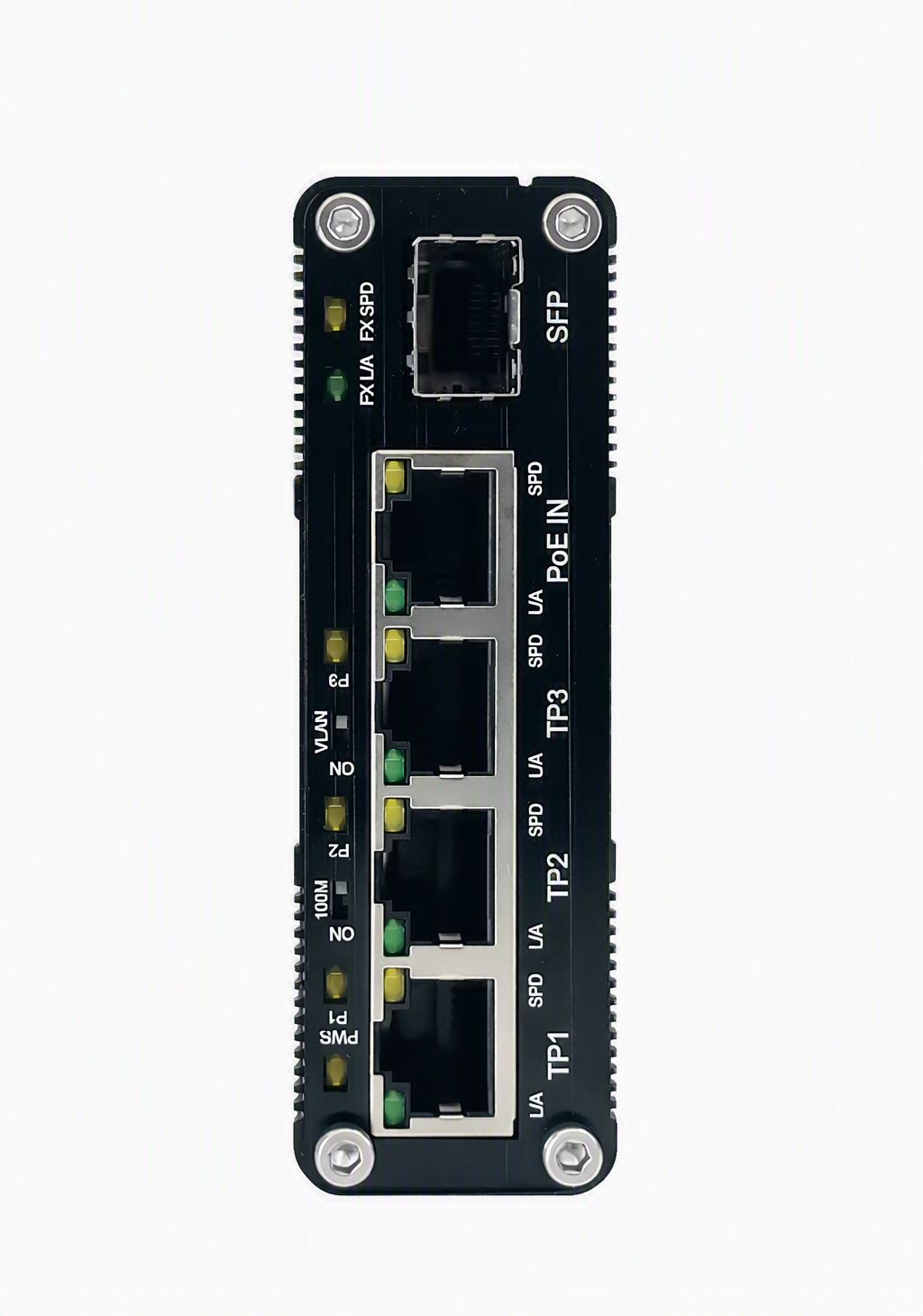

10/100/1000M 4 x Gigabit Ethernet, 1 x PoE In, 3 x 30w POE port, 65W Maximum power budget, 1 x Gigabit SFP slot
Model 10/100/1000M 4 x Gigabit Ethernet, 1 x PoE In, 3 x 30w POE port, 65W Maximum power budget, 1 x Gigabit SFP slotPart no. SIL 73104PEAN 5060693983269
35 specifications
- Speed1000 Mbit/s
- Weight250 g
- ColourBlack
- Mean time between failures (MTBF)500000 h
- Plug and PlayYes
- Ethernet LAN (RJ-45) ports4
Overview
- Speed
- 1000 Mbit/s
- Weight
- 250 g
- Colour
- Black
- Mean time between failures (MTBF)
- 500000 h
- Plug and Play
- Yes
- Ethernet LAN (RJ-45) ports
- 4
- Brand
- SilverNet
- Category
- Network Media Converter
- Model
- 10/100/1000M 4 x Gigabit Ethernet, 1 x PoE In, 3 x 30w POE port, 65W Maximum power budget, 1 x Gigabit SFP slot
- Part number
- SIL 73104P
- EAN / UPC
- 5060693983269
- Also known as
- SilverNet 10/100/1000M 4 x Gigabit Ethernet, 1 x PoE In, 3 x 30w POE port, 65W Maximum power budget, 1 x Gigabit SFP slot network media converter 1000 Mbit/s Bl
Specifications
35 specifications in 9 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Converter input interface | 1000Base-TX |
| Converter output interface | 1000Base-X |
| Networking standards | IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3ab, IEEE 802.3az |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Fiber ethernet cabling technology | 1000BASE-X |
| Data transfer rate | 1000 Mbit/s |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Cable types supported | Cat5e |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 500000 h |
Features
| Specification | Value |
|---|---|
| Plug and Play | Yes |
| Housing material | Aluminium |
| International Protection (IP) code | IP40 |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP |
| Power over Ethernet (PoE) ports quantity | 3 |
Power
| Specification | Value |
|---|---|
| Input voltage | 48 - 57 V |
| Power consumption (typical) | 6 W |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 65 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 90 mm |
| Depth | 70 mm |
| Height | 30 mm |
| Weight | 250 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 90% |
Packaging content
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, RoHS |
