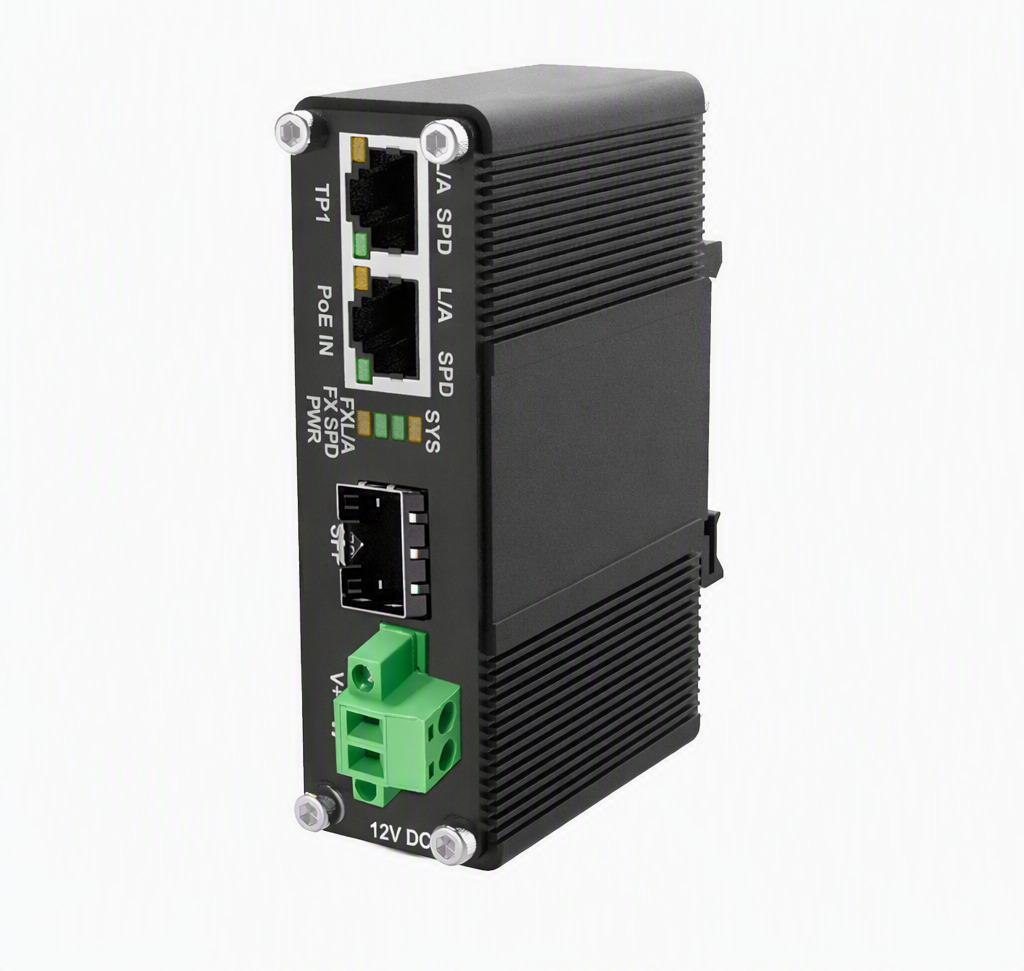

10/100/1000M 2 x Gigabit Ethernet, 1 x PoE In, 1 x 30w POE port, 1 x Gigabit SFP slot, Excluding Power supply
Model 10/100/1000M 2 x Gigabit Ethernet, 1 x PoE In, 1 x 30w POE port, 1 x Gigabit SFP slot, Excluding Power supplyPart no. SIL 73102PEAN 5060693983252
28 specifications
- Speed1000 Mbit/s
- ColourBlack
- Plug and PlayYes
- Ethernet LAN (RJ-45) ports2
- Input voltage48 - 57 V
- Operating temperature (T-T)-30 - 70 °C
Overview
- Speed
- 1000 Mbit/s
- Colour
- Black
- Plug and Play
- Yes
- Ethernet LAN (RJ-45) ports
- 2
- Input voltage
- 48 - 57 V
- Operating temperature (T-T)
- -30 - 70 °C
- Brand
- SilverNet
- Category
- Network Media Converter
- Model
- 10/100/1000M 2 x Gigabit Ethernet, 1 x PoE In, 1 x 30w POE port, 1 x Gigabit SFP slot, Excluding Power supply
- Part number
- SIL 73102P
- EAN / UPC
- 5060693983252
- Also known as
- SilverNet 10/100/1000M 2 x Gigabit Ethernet, 1 x PoE In, 1 x 30w POE port, 1 x Gigabit SFP slot, Excluding Power supply network media converter 1000 Mbit/s Blac
Specifications
28 specifications in 7 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Converter input interface | 1000Base-T |
| Converter output interface | 1000Base-X |
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Fiber ethernet cabling technology | 1000BASE-X |
| Data transfer rate | 1000 Mbit/s |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
Features
| Specification | Value |
|---|---|
| Plug and Play | Yes |
| Housing material | Aluminium |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP |
| Power over Ethernet (PoE) ports quantity | 1 |
Power
| Specification | Value |
|---|---|
| Input voltage | 48 - 57 V |
| Power consumption (typical) | 6 W |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 30 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 90% |
Packaging content
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC / CE / RoHS |
