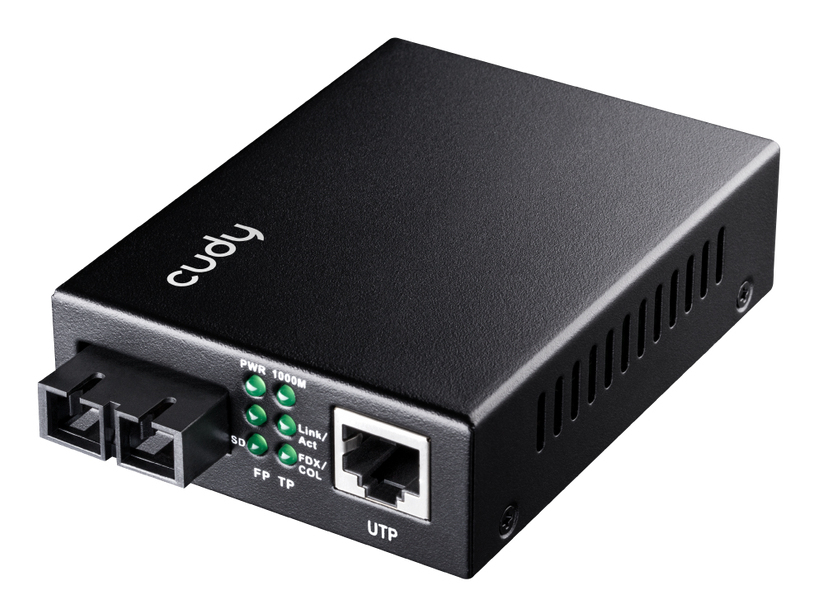

Gigabit Ethernet Media Converter, MC100GSA-40 2.0
Model Gigabit Ethernet Media Converter, MC100GSA-40 2.0Part no. MC100GSA-40 2.0EAN 6971690792428
41 specifications
- Speed1000 Mbit/s
- ConnectivityWired
- ColourBlack
- Maximum transfer distance40000 m
- InternalNo
- Input voltage100 - 240 V
Overview
- Speed
- 1000 Mbit/s
- Connectivity
- Wired
- Colour
- Black
- Maximum transfer distance
- 40000 m
- Internal
- No
- Input voltage
- 100 - 240 V
- Brand
- Cudy
- Category
- Network Media Converter
- Model
- Gigabit Ethernet Media Converter, MC100GSA-40 2.0
- Part number
- MC100GSA-40 2.0
- EAN / UPC
- 6971690792428
- Also known as
- Cudy Gigabit Ethernet Media Converter, MC100GSA-40 2.0 network media converter 1000 Mbit/s 1310 nm Single-mode Black
Specifications
41 specifications in 9 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Converter input interface | 10Base-T, 100Base-T, 1000Base-T |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 16 |
| Flow control support | Yes |
| Duplex system | Full |
| Cable types supported | Cat3, Cat5, Cat5e |
| Link Fault Pass-through (LFP) | Yes |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 40000 m |
| Wavelength | 1310 nm |
| Fiber mode structure | Single-mode |
Features
| Specification | Value |
|---|---|
| Internal | No |
| Plug and Play | Yes |
| Housing material | Metal |

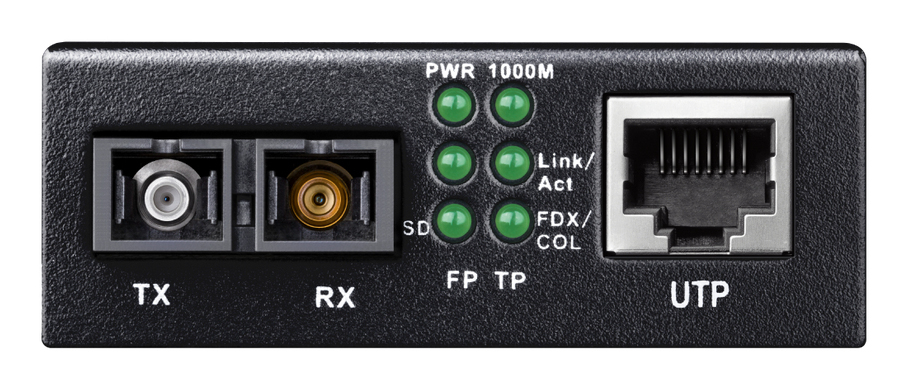

| LED indicators | Yes |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SC/UPC |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Output voltage | 5 V |
| Output current | 0.55 A |
| Power consumption (typical) | 1 W |
| Power consumption (max) | 1.3 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 70 mm |
| Depth | 94 mm |
| Height | 26 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |

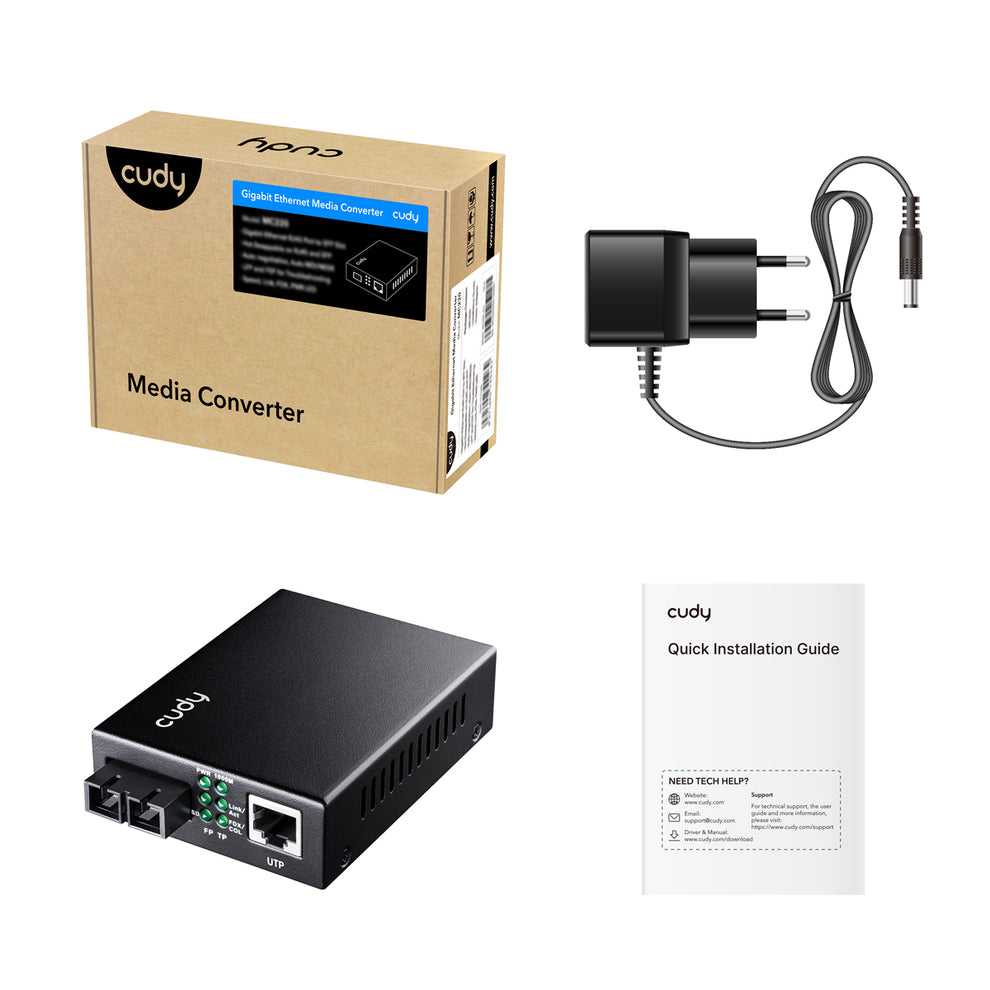

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Quick installation guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 185 mm |
| Package depth | 129 mm |
| Package height | 56 mm |
