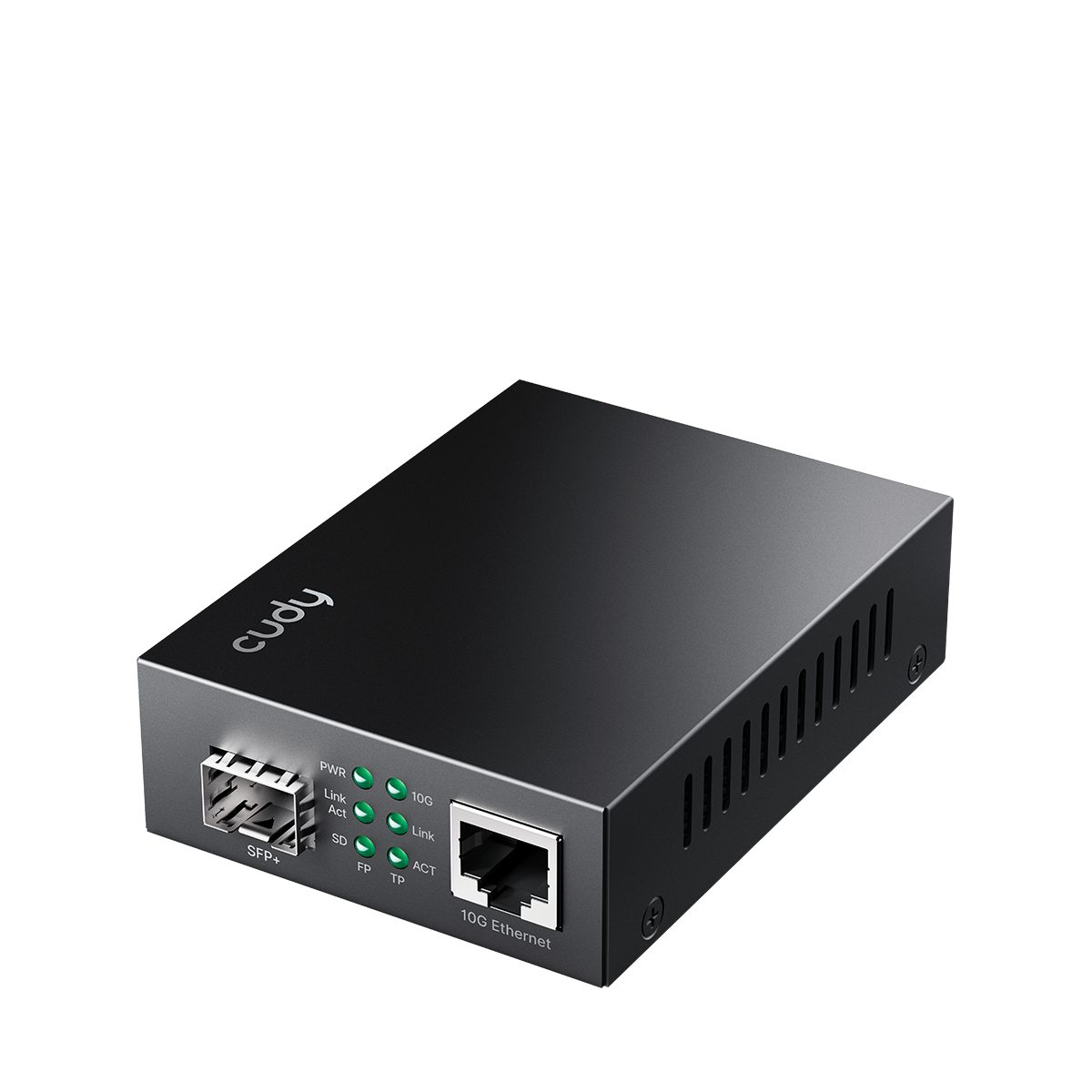

10 Gbps Ethenet Media Converter, MC10G 2.0
Model 10 Gbps Ethenet Media Converter, MC10G 2.0Part no. MC10G 2.0EAN 6971690791933
39 specifications
- Speed10000 Mbit/s
- ConnectivityWired
- ColourBlack
- Maximum transfer distance100 m
- InternalNo
- Input voltage100 - 240 V
Overview
- Speed
- 10000 Mbit/s
- Connectivity
- Wired
- Colour
- Black
- Maximum transfer distance
- 100 m
- Internal
- No
- Input voltage
- 100 - 240 V
- Brand
- Cudy
- Category
- Network Media Converter
- Model
- 10 Gbps Ethenet Media Converter, MC10G 2.0
- Part number
- MC10G 2.0
- EAN / UPC
- 6971690791933
- Also known as
- Cudy 10 Gbps Ethenet Media Converter, MC10G 2.0 network media converter 10000 Mbit/s Black
Specifications
39 specifications in 10 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 10000 Mbit/s |
| Converter input interface | 10Base-T, 100Base-T, 1000Base-T, 10GBase-T |
| Networking standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3an, IEEE 802.3x, IEEE 802.3az |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000,2500,5000,10000 Mbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 16000 |
| Flow control support | Yes |
| Cable types supported | Cat3, Cat5, Cat5e, Cat6, Cat6a |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 100 m |
Features
| Specification | Value |
|---|---|
| Internal | No |
| Hot-swap | Yes |

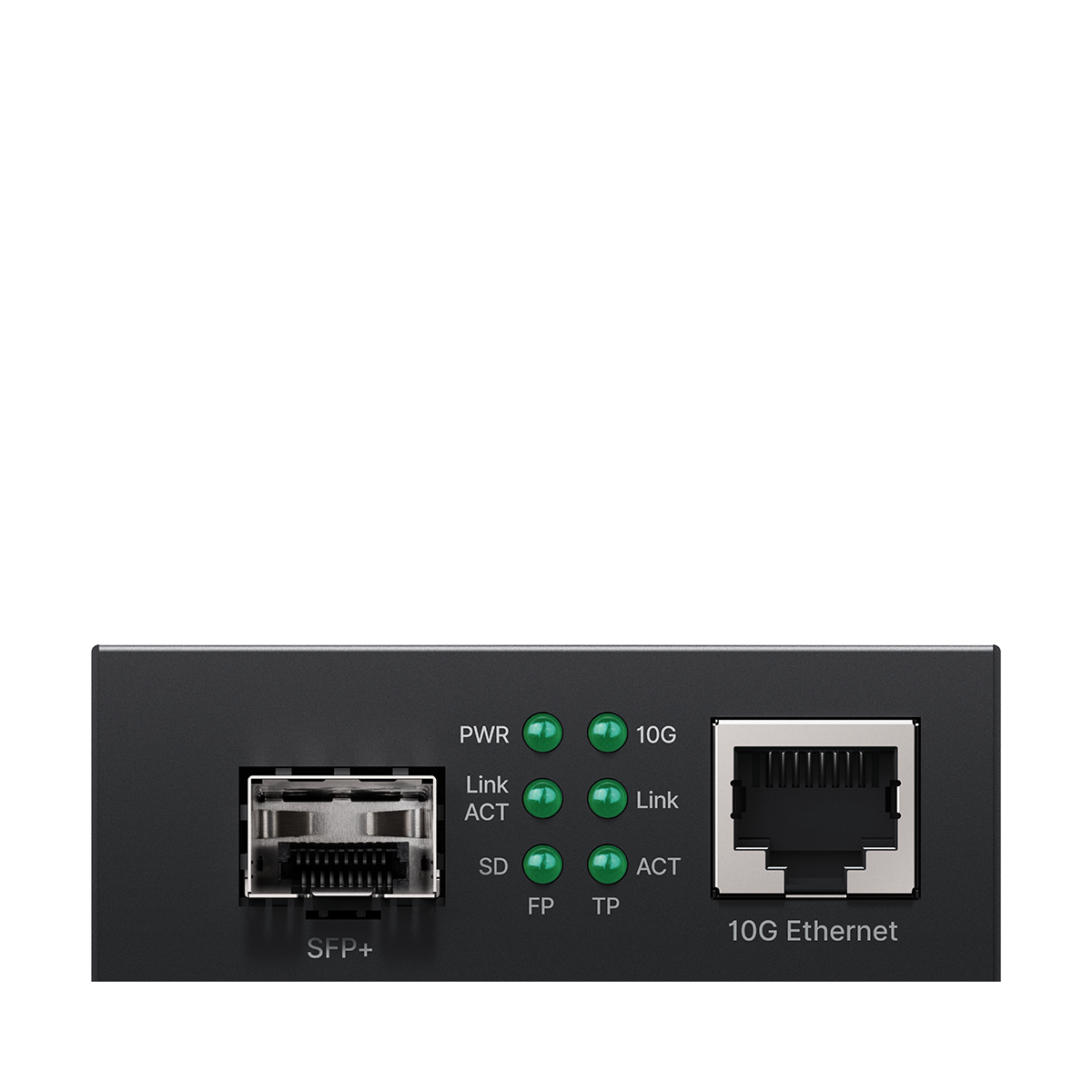

| LED indicators | Power, Link, ACT |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber optic connector | SFP+ |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Output voltage | 12 V |
| Output current | 1 A |
| External power adapter | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 70 mm |
| Depth | 94 mm |
| Height | 26 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| User guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 185 mm |
| Package depth | 129 mm |
| Package height | 56 mm |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 537 mm |
| Master (outer) case length | 303 mm |
| Master (outer) case height | 391 mm |
| Products per master (outer) case | 40 pc(s) |
