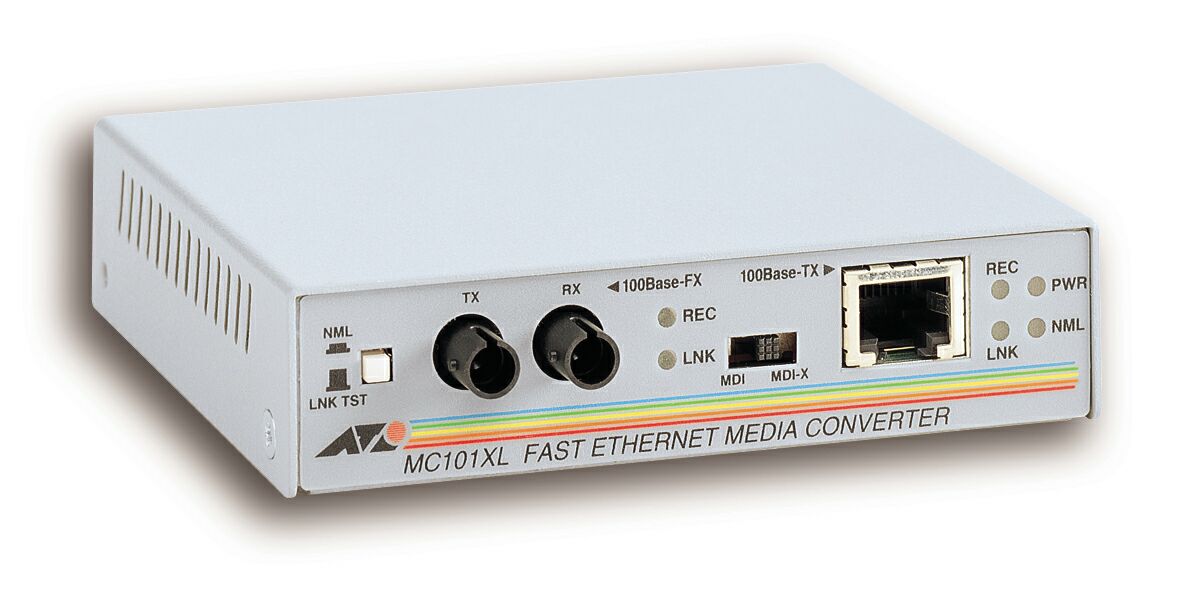

100TX to 100FX (ST) Multi-Mode Media Converter
Model 100TX to 100FX (ST) Multi-Mode Media ConverterPart no. AT-MC101XLEAN 767035123387
15 specifications
- Speed100 Mbit/s
- ConnectivityWired
- TypeStandalone / rackmounted
- Weight294 g
- Power consumption (typical)6 W
- Operating temperature (T-T)0 - 40 °C
Overview
- Speed
- 100 Mbit/s
- Connectivity
- Wired
- Type
- Standalone / rackmounted
- Weight
- 294 g
- Power consumption (typical)
- 6 W
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- Allied Telesis
- Category
- Network Media Converter
- Model
- 100TX to 100FX (ST) Multi-Mode Media Converter
- Part number
- AT-MC101XL
- EAN / UPC
- 767035123387, 5054629184233, 5711045328589, 7670351917376
- Also known as
- Allied Telesis 100TX to 100FX (ST) Multi-Mode Media Converter network media converter 100 Mbit/s
Specifications
15 specifications in 7 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 100 Mbit/s |
| Cabling technology | UTP & Fibre optic |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 6 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 294 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Certificates
| Specification | Value |
|---|---|
| Safety | UL-Cul, CSA/CSA, NRTL, TUV, CE |
Other features
| Specification | Value |
|---|---|
| Data link protocols | IEEE 802.1Q |
| Dimensions (WxDxH) | 105 x 95 x 25 mm |
| Form factor | Standalone / rackmounted |
| Interface | Fast Ethernet |
| Electromagnetic emissions | FCC Class B |
| I/O ports | RJ-45 ST fibre |
