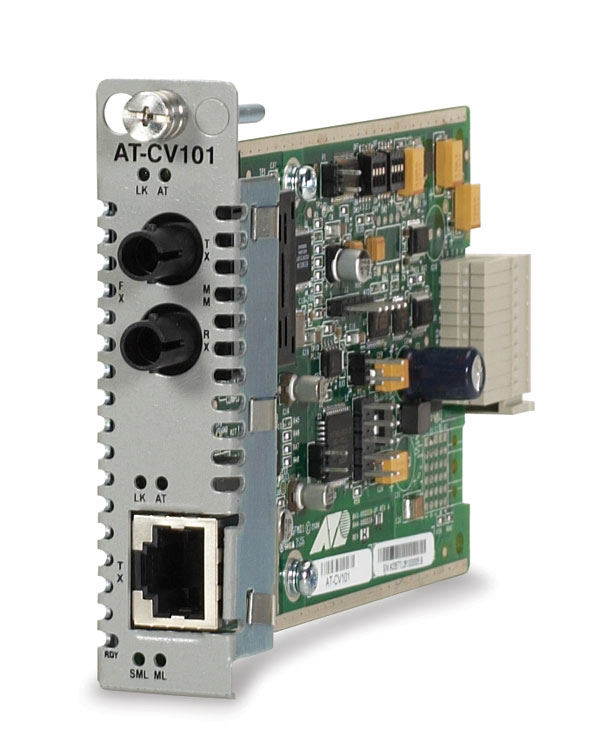

100TX, 100FX (ST) Converteon™ line card
Model 100TX, 100FX (ST) Converteon™ line cardPart no. AT-CV101EAN 767035175522
20 specifications
- Speed100 Mbit/s
- ConnectivityWired
- Weight270 g
- Maximum transfer distance2000 m
- Hot-swapYes
- Power consumption (typical)5.7 W
Overview
- Speed
- 100 Mbit/s
- Connectivity
- Wired
- Weight
- 270 g
- Maximum transfer distance
- 2000 m
- Hot-swap
- Yes
- Power consumption (typical)
- 5.7 W
- Brand
- Allied Telesis
- Category
- Network Media Converter
- Model
- 100TX, 100FX (ST) Converteon™ line card
- Part number
- AT-CV101
- EAN / UPC
- 767035175522, 7670351755220
- Also known as
- Allied Telesis 100TX, 100FX (ST) Converteon™ line card network media converter 100 Mbit/s 1310 nm
Specifications
20 specifications in 9 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 100 Mbit/s |
| Cabling technology | 100TX, 100FX |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 2000 m |
| Wavelength | 1310 nm |
| Mean time between failures (MTBF) | 1020000 h |
Features
| Specification | Value |
|---|---|
| Hot-swap | Yes |
| LED indicators | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 5.7 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 270 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
Certificates
| Specification | Value |
|---|---|
| Safety | UL60950-1 (cULUS), EN60950-1 (TUV), EN60825 |
| Certification | EN55024 |
Other features
| Specification | Value |
|---|---|
| Connector(s) | ST |
| Dimensions (WxDxH) | 22 x 73 x 130 mm |
| Full duplex | Yes |
| Electromagnetic emissions | FCC class A, EN55022 class A, VCCI class A, C-Tick, CE |
