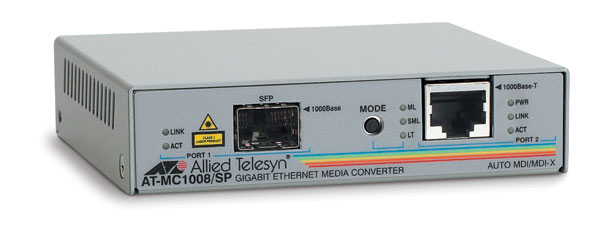

1000T Gigabit Ethernet to fiber SFP standalone media converter
Model 1000T Gigabit Ethernet to fiber SFP standalone media converterPart no. AT-MC1008/SP-YY
15 specifications
- Speed1000 Mbit/s
- ConnectivitySFP
- Weight270 g
- Compliance industry standardsIEEE 802.3, IEEE 802.3u
- Power consumption (typical)6 W
- Operating temperature (T-T)0 - 40 °C
Overview
- Speed
- 1000 Mbit/s
- Connectivity
- SFP
- Weight
- 270 g
- Compliance industry standards
- IEEE 802.3, IEEE 802.3u
- Power consumption (typical)
- 6 W
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- Allied Telesis
- Category
- Network Media Converter
- Model
- 1000T Gigabit Ethernet to fiber SFP standalone media converter
- Part number
- AT-MC1008/SP-YY
- Also known as
- Allied Telesis 1000T Gigabit Ethernet to fiber SFP standalone media converter network media converter 1000 Mbit/s
Specifications
15 specifications in 7 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Cabling technology | 1000Base-TX |
Features
| Specification | Value |
|---|---|
| Compliance industry standards | IEEE 802.3, IEEE 802.3u |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 6 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 270 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating altitude | 0 - 3048 m |
Certificates
| Specification | Value |
|---|---|
| Safety | EN 60950 (TUV), UL 60950 (cULus), CE, EN 60825 |
Other features
| Specification | Value |
|---|---|
| Data link protocols | Gigabit Ethernet |
| Dimensions (WxDxH) | 105 x 95 x 25 mm |
| Interface | SFP |
| Power requirements | 100-120/220-240V AC, 50/60Hz |
| Electromagnetic emissions | FCC A, EN 55022 A, VCCI A, C-TICK |
| I/O ports | 1x RJ-45 |
