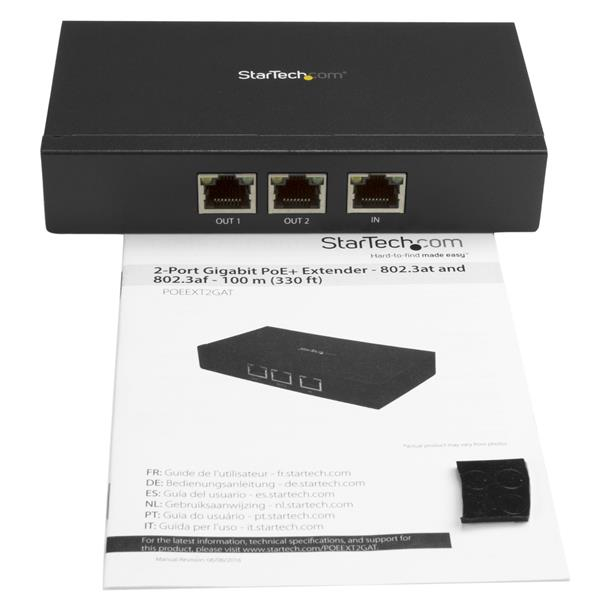

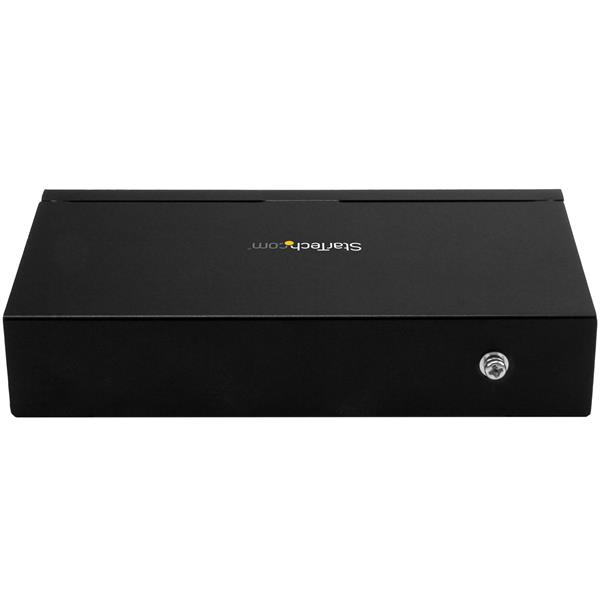

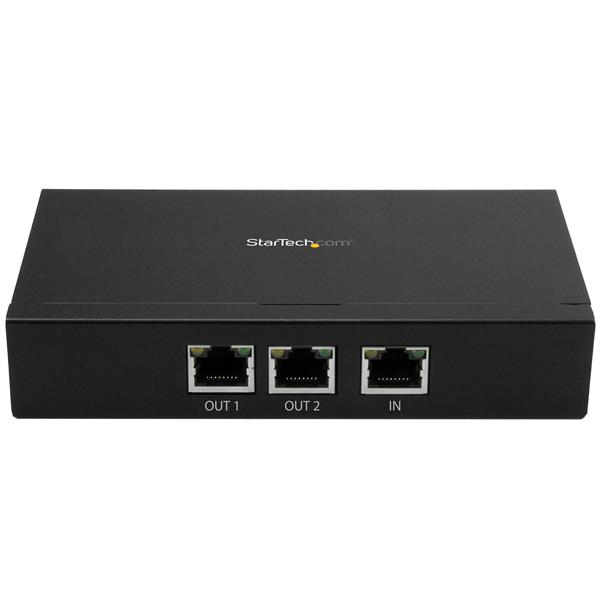

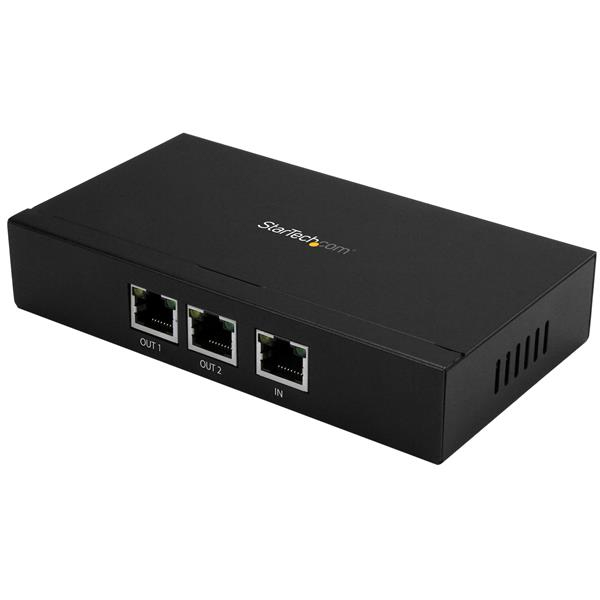

2-Port Gigabit PoE+ Extender - 802.3at and 802.3af - 100 m (330 ft)
Model POEEXT2GATEAN 065030865456
35 specifications
- TypeNetwork transmitter
- Weight239 g
- ColourBlack
- Cabling technology10/100/1000Base-T(X)
- RJ-45 ports quantity (transmitter)2
- Power consumption (max)3 W
Overview
- Type
- Network transmitter
- Weight
- 239 g
- Colour
- Black
- Cabling technology
- 10/100/1000Base-T(X)
- RJ-45 ports quantity (transmitter)
- 2
- Power consumption (max)
- 3 W
- Brand
- StarTech.com
- Category
- Network Extender
- Model
- POEEXT2GAT
- Part number
- POEEXT2GAT
- EAN / UPC
- 065030865456, 5057103235629
- Also known as
- StarTech.com 2-Port Gigabit PoE+ Extender - 802.3at and 802.3af - 100 m (330 ft)
Specifications
35 specifications in 11 groups
Performance
| Specification | Value |
|---|---|
| Type | Network transmitter |
| Maximum transfer distance | 100 m |
| Data transfer rate | 2000 Mbit/s |
| Auto MDIX IEEE | Yes |
| Auto-negotiation | Yes |
| Duplex system | Full, Half |
| Flow control support | Yes |
| Jumbo frames support | No |
| Plug and Play | Yes |
| Mean time between failures (MTBF) | 50000 h |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
Ports & interfaces
| Specification | Value |
|---|---|
| RJ-45 ports quantity (transmitter) | 2 |
| RJ-45 ports quantity (receiver) | 1 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Steel |
| LED indicators | Activity, Link, PoE |
| Certification | CE, FCC |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 3 W |
| Output voltage | 56 V |
| Power over Ethernet (PoE) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 77 mm |
| Depth | 140 mm |
| Height | 27 mm |
| Weight | 239 g |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 123 mm |
| Package depth | 169 mm |
| Package height | 99 mm |
| Package weight | 367 g |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
