AX3000 Network repeater White 10, 100, 1000 Mbit/s
Model AX3000Part no. EAX17-100NASEAN 606449170337
46 specifications
- SpeedWi-Fi 6 (802.11ax)
- TypeNetwork repeater
- Weight222 g
- ColourWhite
- Antennas quantity3
- Ethernet LAN interface typeGigabit Ethernet
Overview
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- Network repeater
- Weight
- 222 g
- Colour
- White
- Antennas quantity
- 3
- Ethernet LAN interface type
- Gigabit Ethernet
- Brand
- NETGEAR
- Category
- Network Extender
- Model
- AX3000
- Part number
- EAX17-100NAS
- EAN / UPC
- 606449170337
- Also known as
- NETGEAR AX3000 Network repeater White 10, 100, 1000 Mbit/s
Specifications
46 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Type | Network repeater |
| Data transfer rate | 3000 Mbit/s |
| Cable types supported | Cat5e, Cat6 |
| BeamForming | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Auto MDIX IEEE | Yes |
| Auto-negotiation | Yes |
| Duplex system | Full |
| Mobile app support | Yes |
| WPS push button | Yes |
| Web-based setup wizard | Yes |
| Plug and Play | Yes |
Antenna
| Specification | Value |
|---|---|
| Antennas quantity | 3 |
| Antenna type | Internal |
Network
| Specification | Value |
|---|---|
| Ethernet LAN interface type | Gigabit Ethernet |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.3, IEEE 802.3ab |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi data rate (max) | 3000 Mbit/s |
| WLAN data transfer rate (first band) | 600 Mbit/s |
| WLAN data transfer rate (second band) | 2400 Mbit/s |
| WLAN data transfer rates supported | 600,2402 Mbit/s |
| MU-MIMO technology | Yes |
| Bandwidth | 5 GHz |
| Modulation | OFDM |
| Security algorithms | WEP, WPA, WPA2, WPA3 |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|

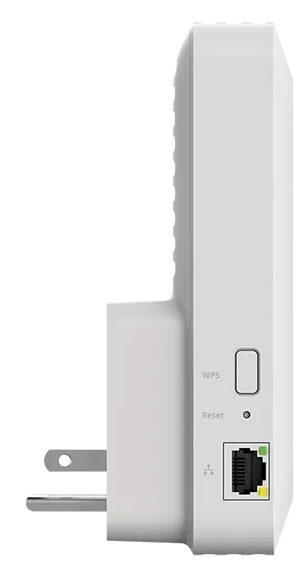

| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Housing material | Plastic |
| Mounting type | Wall |

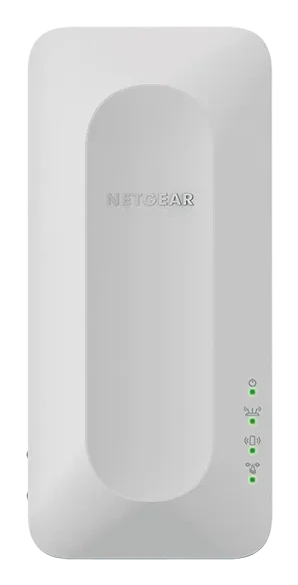

| LED indicators | Yes |
| Quantity per pack | 1 pc(s) |
| Reset button | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 68.4 mm |
| Depth | 52.3 mm |
| Height | 149 mm |
| Weight | 222 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | LAN (RJ-45) |
| Manual | Yes |
| Quick start guide | Yes |
Similar products
All network extenders
NETGEAR
MK62-100PES network extender Network transmitter & receiver Black 10, 100, 1000 Mbit/s
Model MK62-100PES
- Memory
- 256 MB
- Type
- Network transmitter & receiver
- Weight
- 285 g
NETGEAR

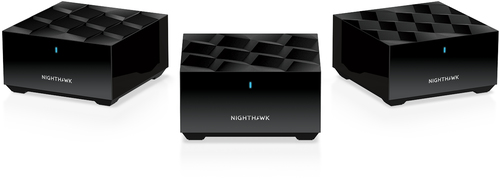

MK62 Network transmitter & receiver Black 10, 100, 1000 Mbit/s
