DAP-1530 network extender Network repeater Grey, White 10, 100 Mbit/s
Model DAP-1530EAN 790069434082
28 specifications
- Memory64 MB
- TypeNetwork repeater
- Weight116 g
- ColourGrey, White
- Antennas quantity2
- Cabling technology10/100Base-T(X)
Overview
- Memory
- 64 MB
- Type
- Network repeater
- Weight
- 116 g
- Colour
- Grey, White
- Antennas quantity
- 2
- Cabling technology
- 10/100Base-T(X)
- Brand
- D-Link
- Category
- Network Extender
- Model
- DAP-1530
- Part number
- DAP-1530
- EAN / UPC
- 790069434082, 790069457777
- Also known as
- D-Link DAP-1530 network extender Network repeater Grey, White 10, 100 Mbit/s
Specifications
28 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| Type | Network repeater |
| Data transfer rate | 750 Mbit/s |
| Ethernet LAN data rates | 10,100 Mbit/s |
| WPS push button | Yes |
Antenna
| Specification | Value |
|---|---|
| Antennas quantity | 2 |
| Antenna type | External |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100Base-T(X) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11v, IEEE 802.3ab |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi data rate (max) | 433 Mbit/s |
Ports & interfaces
| Specification | Value |
|---|---|

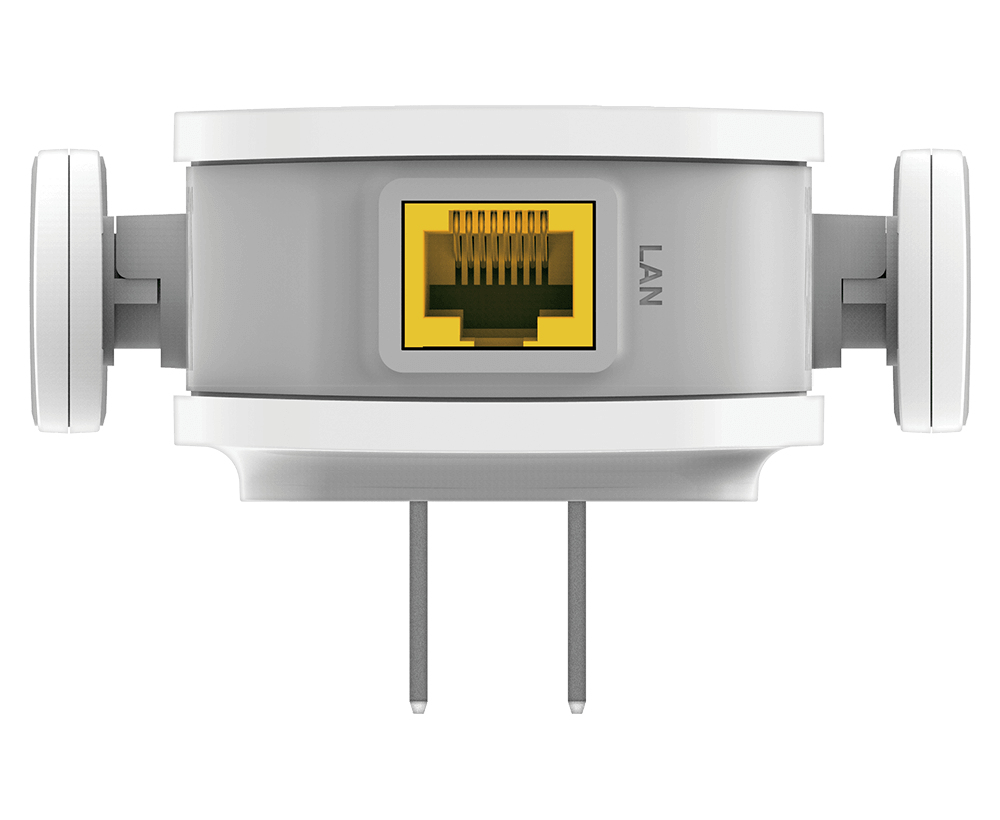

| Ethernet LAN (RJ-45) ports | 1 |
Design
| Specification | Value |
|---|---|
| Product colour | Grey, White |
| LED indicators | Yes |
| Certification | FCC, CE, IC, UL |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 50.7 mm |
| Depth | 48.7 mm |
| Height | 97.9 mm |
| Weight | 116 g |
Features
| Specification | Value |
|---|---|
| Internal memory | 64 MB |
| Flash memory | 8 MB |
