Product comparison · 2 network extenders

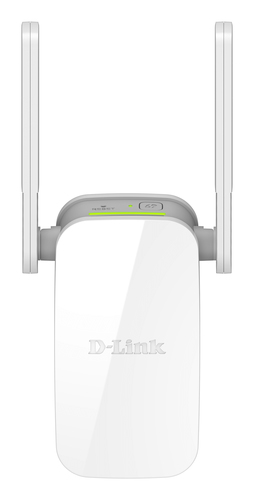

D-Link DAP-1530 network extender Network repeater Grey, White 10, 100 Mbit/s vs D-Link DAP-1610 network extender Network transmitter & receiver White 10, 100 Mbit/s

25specifications compared
14differ
11identical
6known for one product only

Key differences

Data transfer rate
- DAP-1530 network extender Network repeater Grey, White 10, 100 Mbit/s:750 Mbit/s
- DAP-1610 network extender Network transmitter & receiver White 10, 100 Mbit/s:1167 Mbit/s
Product colour
- DAP-1530 network extender Network repeater Grey, White 10, 100 Mbit/s:Grey, White
- DAP-1610 network extender Network transmitter & receiver White 10, 100 Mbit/s:White
LED indicators
- DAP-1530 network extender Network repeater Grey, White 10, 100 Mbit/s:Yes
- DAP-1610 network extender Network transmitter & receiver White 10, 100 Mbit/s:Signal strength, Status, WPS
Certification
- DAP-1530 network extender Network repeater Grey, White 10, 100 Mbit/s:FCC, CE, IC, UL
- DAP-1610 network extender Network transmitter & receiver White 10, 100 Mbit/s:FCC, IC, CE2. UL
AC input voltage
- DAP-1530 network extender Network repeater Grey, White 10, 100 Mbit/s:100 - 240 V
- DAP-1610 network extender Network transmitter & receiver White 10, 100 Mbit/s:110-240 V
Operating temperature (T-T)
- DAP-1530 network extender Network repeater Grey, White 10, 100 Mbit/s:0 - 40 °C
- DAP-1610 network extender Network transmitter & receiver White 10, 100 Mbit/s:0 - 35 °C
Storage relative humidity (H-H)
- DAP-1530 network extender Network repeater Grey, White 10, 100 Mbit/s:5 - 90%
- DAP-1610 network extender Network transmitter & receiver White 10, 100 Mbit/s:5 - 95%
Width
- DAP-1530 network extender Network repeater Grey, White 10, 100 Mbit/s:50.7 mm
- DAP-1610 network extender Network transmitter & receiver White 10, 100 Mbit/s:97.9 mm

Side by side

Differences highlightedShow differences only

Comparison of DAP-1530, DAP-1610
31 specifications	A D-Link DAP-1530 network extender Network repeater Grey, White 10, 100 Mbit/s Model DAP-1530 View product	B D-Link DAP-1610 network extender Network transmitter & receiver White 10, 100 Mbit/s Model DAP-1610 View product
Performance2 differ
TypeDiffers	Network repeater	Network transmitter & receiver
Data transfer rateDiffers	750 Mbit/s	1167 Mbit/s
Ethernet LAN data rates	10,100 Mbit/s	10,100 Mbit/s
WPS push button	Yes	Yes
Antennaidentical
Antennas quantity	2	2
Antenna type	External	External
Network2 differ
Cabling technology	10/100Base-T(X)	10/100Base-T(X)
Networking standardsDiffers	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11v, IEEE 802.3ab	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab
Wi-Fi	Yes	Yes
Wi-Fi standardsDiffers	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi data rate (max)Known for one	433 Mbit/s	Unknown — not stated by the source
Security algorithmsKnown for one	Unknown — not stated by the source	WPA, WPA2
Web-based managementKnown for one	Unknown — not stated by the source	Yes
Ports & interfacesidentical
Ethernet LAN (RJ-45) ports	1	1
Design3 differ
Product colourDiffers	Grey, White	White
LED indicatorsDiffers	Yes	Signal strength, Status, WPS
CertificationDiffers	FCC, CE, IC, UL	FCC, IC, CE2. UL
Reset buttonKnown for one	Unknown — not stated by the source	Yes
Power1 differ
AC input voltageDiffers	100 - 240 V	110-240 V
AC input frequency	50 - 60 Hz	50 - 60 Hz
Operational conditions2 differ
Operating temperature (T-T)Differs	0 - 40 °C	0 - 35 °C
Storage temperature (T-T)	-20 - 70 °C	-20 - 70 °C
Operating relative humidity (H-H)	10 - 90%	10 - 90%
Storage relative humidity (H-H)Differs	5 - 90%	5 - 95%
Weight & dimensions4 differ
WidthDiffers	50.7 mm	97.9 mm
DepthDiffers	48.7 mm	50.7 mm
HeightDiffers	97.9 mm	48.7 mm
WeightDiffers	116 g	120 g
Featuresidentical
Internal memoryKnown for one	64 MB	Unknown — not stated by the source
Flash memoryKnown for one	8 MB	Unknown — not stated by the source

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
