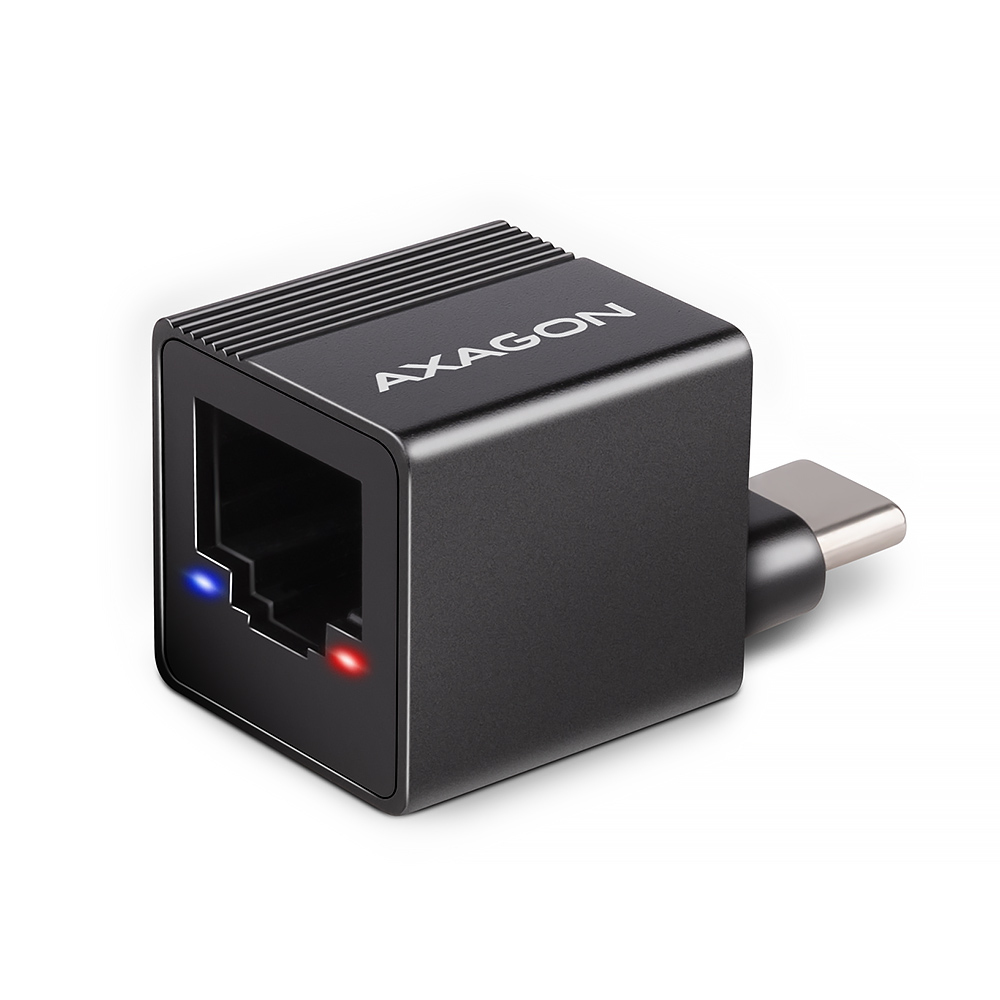

ADE-MINIC USB-C 3.2 Gen 1 Gigabit Ethernet MINI adapter - schwarz - Adapter - Digital/Daten
Model ADE-MINIC USB-C 3.2 Gen 1 Gigabit Ethernet MINI adapter - schwarz - Adapter - Digital/DatenPart no. ADE-MINICEAN 8595247907820
39 specifications
- Speed1000 Mbit/s
- ConnectivityWired
- Weight9 g
- ColourBlack
- InternalNo
- USB poweredYes
Overview
- Speed
- 1000 Mbit/s
- Connectivity
- Wired
- Weight
- 9 g
- Colour
- Black
- Internal
- No
- USB powered
- Yes
- Brand
- Axagon
- Category
- Network Card
- Model
- ADE-MINIC USB-C 3.2 Gen 1 Gigabit Ethernet MINI adapter - schwarz - Adapter - Digital/Daten
- Part number
- ADE-MINIC
- EAN / UPC
- 8595247907820
- Also known as
- Axagon ADE-MINIC USB-C 3.2 Gen 1 Gigabit Ethernet MINI adapter - schwarz - Adapter - Digital/Daten 1000 Mbit/s
Specifications
39 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wake-on-LAN ready | Yes |
| Full duplex | Yes |
| Jumbo frames support | Yes |
| VLAN support | Yes |
| LAN controller | Realtek RTL8153 |
Design
| Specification | Value |
|---|---|
| Internal | No |
| Component for | PC/Laptop |
| Product colour | Black |
| Chipset | Realtek RTL8153 |
| Plug and Play | Yes |
| LED indicators | Yes |
| Country of origin | China |
| Certification | CE |
Power
| Specification | Value |
|---|---|
| USB powered | Yes |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Server operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 34 mm |
| Depth | 19 mm |
| Height | 19 mm |
| Weight | 9 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 121 mm |
| Package depth | 71 mm |
| Package height | 23 mm |
| Package weight | 26 g |
Packaging content
| Specification | Value |
|---|---|

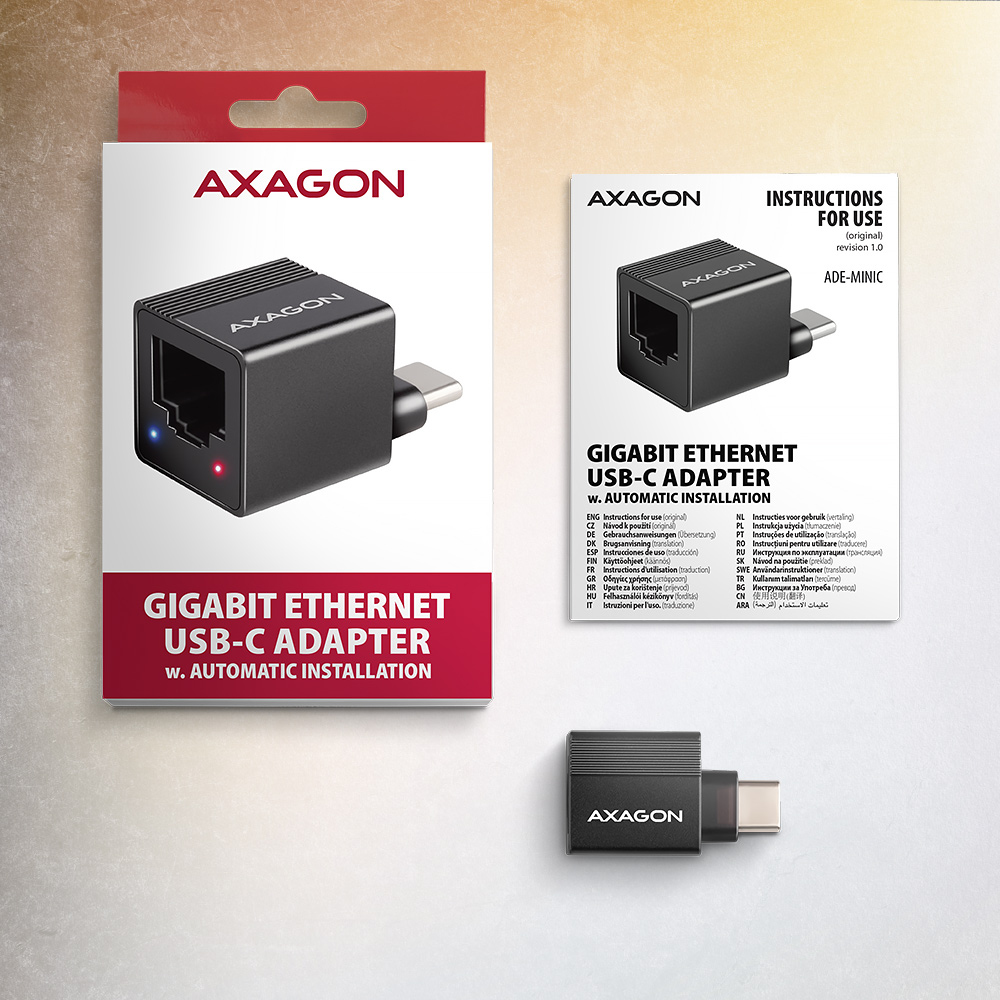

| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Warranty period | 3 year(s) |
