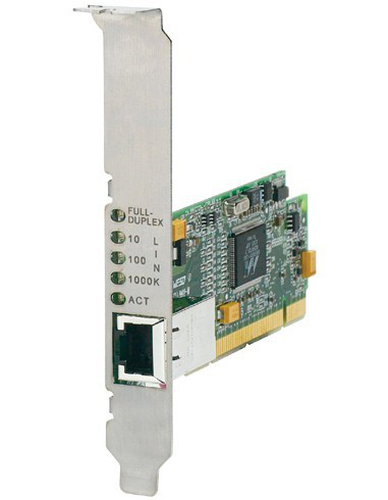

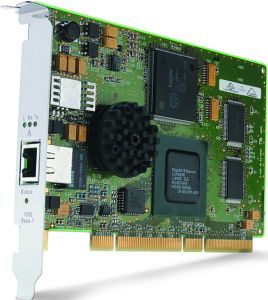

Allied Telesis 1000Mbps Gigabit Ethernet PCI Server Adapter Card
Model 1000Mbps Gigabit Ethernet PCI Server Adapter CardPart no. AT-2970T
16 specifications
- Speed1000 Mbit/s
- ConnectivityWired
- Weight320 g
- InternalYes
- Operating temperature (T-T)10 - 50 °C
- Width186 mm
Overview
- Speed
- 1000 Mbit/s
- Connectivity
- Wired
- Weight
- 320 g
- Internal
- Yes
- Operating temperature (T-T)
- 10 - 50 °C
- Width
- 186 mm
- Brand
- Allied Telesis
- Category
- Network Card
- Model
- 1000Mbps Gigabit Ethernet PCI Server Adapter Card
- Part number
- AT-2970T
- Also known as
- Allied Telesis 1000Mbps Gigabit Ethernet PCI Server Adapter Card Internal 1000 Mbit/s
Specifications
16 specifications in 7 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCI |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Full duplex | Yes |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Plug and Play | Yes |
| Safety | UL, CSA, CE, CB |
System requirements
| Specification | Value |
|---|---|
| Compatible operating systems | Novell NetWare 5.x, 6 Windows XP SUN Solaris 2.5.1, 2.6, 7, 8 SUN Solaris 7, 8, 9 (SPARC 64-bit) Linux 2.0.x, 2.2, 2.4 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 50 °C |
| Operating relative humidity (H-H) | 30 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 186 mm |
| Height | 126 mm |
| Weight | 320 g |
Other features
| Specification | Value |
|---|---|
| Compliance industry standards | PCI 2.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3z |
| Flow control support | Yes |
| I/O ports | 1x Gigabit Ethernet (RJ-45) |
Compare Allied Telesis 1000Mbps Gigabit Ethernet PCI Server Adapter Card

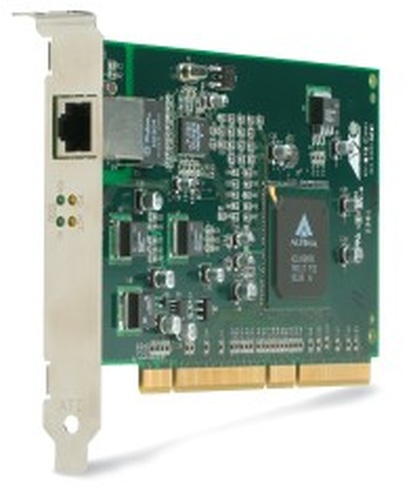

Compare any products- Allied Telesis 1000Mbps Gigabit Ethernet PCI Server Adapter Card vsAllied Telesis 32-bit Gigabit Ethernet Adapter CardCompare specs

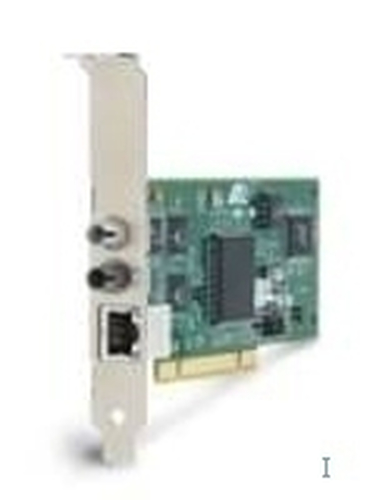

- Allied Telesis 1000Mbps Gigabit Ethernet PCI Server Adapter Card vsAllied Telesis PCI 64-bit ACPI Adapter Card, 20-packCompare specs

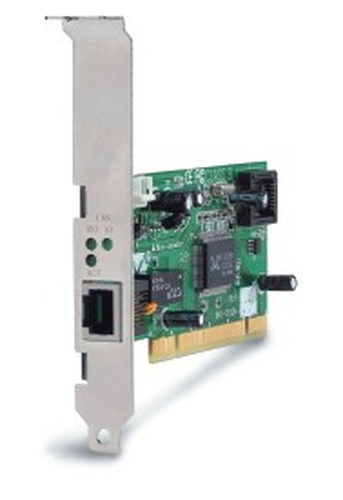

- Allied Telesis 1000Mbps Gigabit Ethernet PCI Server Adapter Card vsAllied Telesis PCI Network Interface CardCompare specs
- Allied Telesis 1000Mbps Gigabit Ethernet PCI Server Adapter Card vsAllied Telesis Low Profile PCI Fast Ethernet Adapter CardCompare specs

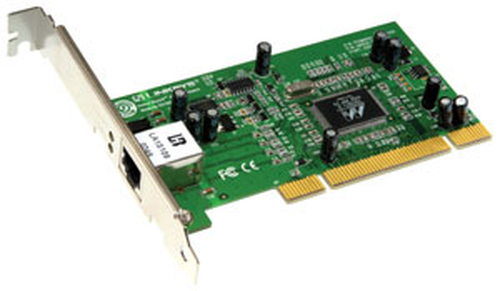

- Allied Telesis 1000Mbps Gigabit Ethernet PCI Server Adapter Card vsLinksys Instant Gigabit Network AdapterCompare specs

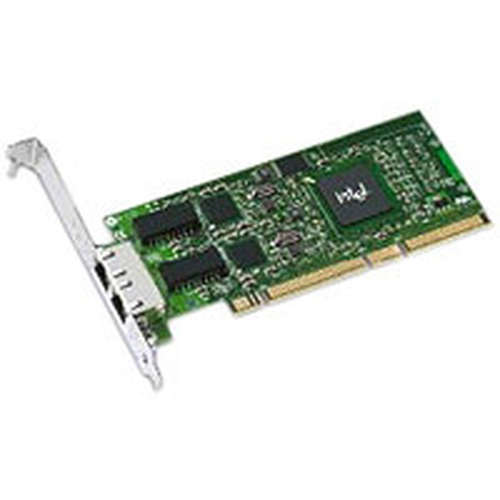

- Allied Telesis 1000Mbps Gigabit Ethernet PCI Server Adapter Card vsFujitsu Ethernet Controller 2x100Mbit PCI64 PRO/100S CuCompare specs

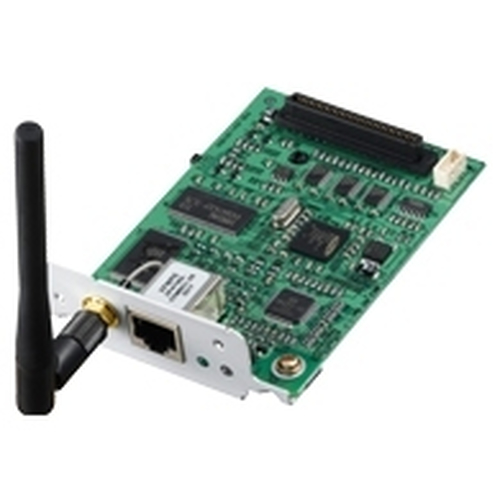

- Allied Telesis 1000Mbps Gigabit Ethernet PCI Server Adapter Card vsSamsung ML-00LB Printer Network CardCompare specs

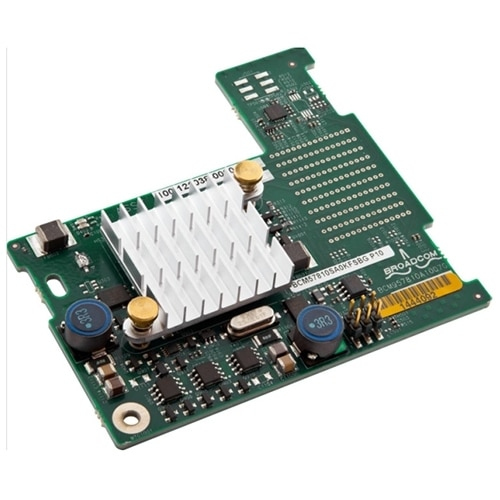

- Allied Telesis 1000Mbps Gigabit Ethernet PCI Server Adapter Card vsDell 543-BBCP - RefurbishedCompare specs
