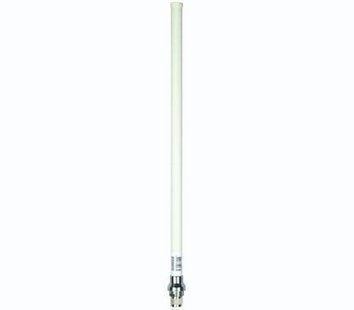

EXT 108
Model EXT 108
13 specifications
- Weight337 g
- ColourGrey, White
- Antenna gain level (max)8 dBi
- Antenna connector typeN-type
- Operating temperature (T-T)-40 - 80 °C
- Height520 mm
Overview
- Weight
- 337 g
- Colour
- Grey, White
- Antenna gain level (max)
- 8 dBi
- Antenna connector type
- N-type
- Operating temperature (T-T)
- -40 - 80 °C
- Height
- 520 mm
- Brand
- Zyxel
- Category
- Network Antenna
- Model
- EXT 108
- Part number
- EXT 108
- Also known as
- Zyxel EXT 108 network antenna N-type 8 dBi
Specifications
13 specifications in 4 groups
Performance
| Specification | Value |
|---|---|
| Antenna gain level (max) | 8 dBi |
| Frequency band | 2.4 - 2.5 GHz |
| Impedance | 50 Ω |
Features
| Specification | Value |
|---|---|
| Antenna connector type | N-type |
| Connector gender | Female |
| Polarization | Vertical polarization |
| Voltage Standing Wave Ratio (VSWR) | 2 |
| Product colour | Grey, White |
| Power handling | 50 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 80 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 520 mm |
| Diameter | 1.9 cm |
| Weight | 337 g |
