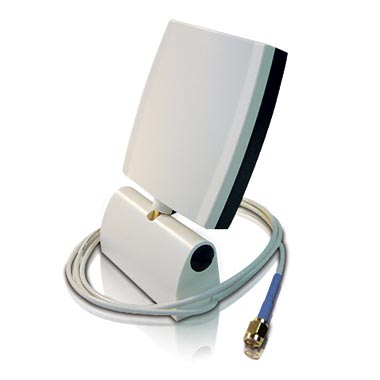

EXT-106 Indoor 6dBi Directional Patch Antenna
Model EXT-106 Indoor 6dBi Directional Patch AntennaPart no. EXT106EAN 760559110345
12 specifications
- Weight110 g
- Antenna gain level (max)6 dBi
- PolarizationVertical polarization
- Width118 mm
Overview
- Weight
- 110 g
- Antenna gain level (max)
- 6 dBi
- Polarization
- Vertical polarization
- Width
- 118 mm
- Brand
- Zyxel
- Category
- Network Antenna
- Model
- EXT-106 Indoor 6dBi Directional Patch Antenna
- Part numbers
- EXT106, ZY-EXT106, 2660E
- EAN / UPC
- 760559110345, 7605591103456
- Also known as
- Zyxel EXT-106 Indoor 6dBi Directional Patch Antenna network antenna
Specifications
12 specifications in 3 groups
Performance
| Specification | Value |
|---|---|
| Antenna gain level (max) | 6 dBi |
| Frequency band | 2.4 - 2.5 GHz |
| Impedance | 50 Ω |
| Horizontal beam width | 80° |
| Vertical beam width | 80° |
Features
| Specification | Value |
|---|---|
| Polarization | Vertical polarization |
| Voltage Standing Wave Ratio (VSWR) | 1.5:1 |
| Cable length | 1.5 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 118 mm |
| Depth | 86 mm |
| Height | 76 mm |
| Weight | 110 g |
