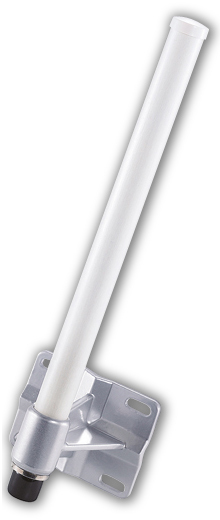

ANT3108 network antenna 8 dBi
Model ANT3108Part no. 91005233001BEAN 760559116323
13 specifications
- Weight206 g
- Antenna gain level (max)8 dBi
- PolarizationVertical polarization
- Operating temperature (T-T)-40 - 80 °C
Overview
- Weight
- 206 g
- Antenna gain level (max)
- 8 dBi
- Polarization
- Vertical polarization
- Operating temperature (T-T)
- -40 - 80 °C
- Brand
- Zyxel
- Category
- Network Antenna
- Model
- ANT3108
- Part numbers
- 91005233001B, 2507, ANT3108
- EAN / UPC
- 760559116323, 7605591163238
- Also known as
- Zyxel ANT3108 network antenna 8 dBi
Specifications
13 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| Antenna gain level (max) | 8 dBi |
| Impedance | 50 Ω |
| Horizontal beam width | 360° |
| Vertical beam width | 20° |
Features
| Specification | Value |
|---|---|
| Polarization | Vertical polarization |
| Voltage Standing Wave Ratio (VSWR) | 2.0:1 |
| Power handling | 2 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 20 - 95% |
| Storage relative humidity (H-H) | 20 - 95% |
| Storage temperature (T-T) | -40 - 80 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 206 g |
Other features
| Specification | Value |
|---|---|
| Frequency range | 5150 - 5875MHz |
