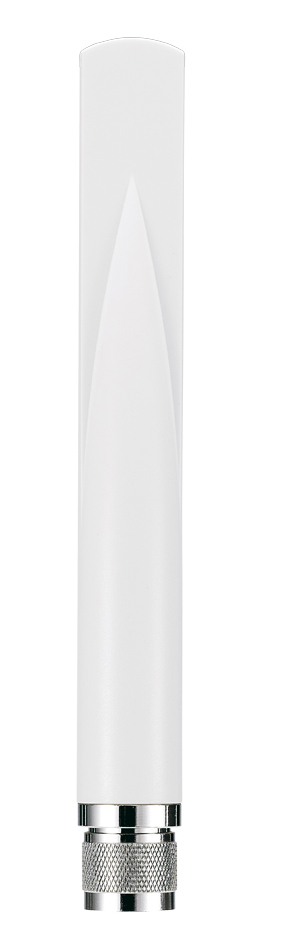

ANT2105-ZZ0201F network antenna Omni-directional antenna N-type 7 dBi
Model ANT2105-ZZ0201FEAN 4718937609413
22 specifications
- Weight70 g
- ColourWhite
- Antenna gain level (max)7 dBi
- Antenna typeOmni-directional antenna
- Operating temperature (T-T)-10 - 70 °C
- Height183 mm
Overview
- Weight
- 70 g
- Colour
- White
- Antenna gain level (max)
- 7 dBi
- Antenna type
- Omni-directional antenna
- Operating temperature (T-T)
- -10 - 70 °C
- Height
- 183 mm
- Brand
- Zyxel
- Category
- Network Antenna
- Model
- ANT2105-ZZ0201F
- Part number
- ANT2105-ZZ0201F
- EAN / UPC
- 4718937609413
- Also known as
- Zyxel ANT2105-ZZ0201F network antenna Omni-directional antenna N-type 7 dBi
Specifications
22 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| Antenna gain level (max) | 7 dBi |
| Frequency band | 2.4/5 GHz |
| Antenna gain (2.4 GHz) | 4.5 dBi |
| Antenna gain (5 GHz) | 7 dBi |
| Impedance | 50 Ω |
| Horizontal beam width | 360° |
| Vertical beam width | 30° |
| Horizontal beam width (2.4 GHz) | 360° |
| Vertical beam width (2.4 GHz) | 30° |
| Horizontal beam width (5 GHz) | 360° |
| Vertical beam width (5 GHz) | 15° |
Features
| Specification | Value |
|---|---|
| Antenna type | Omni-directional antenna |
| Antenna connector type | N-type |
| Polarization | Vertical polarization |
| Product colour | White |
| Purpose | Outdoor |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 183 mm |
| Diameter | 2.2 cm |
| Weight | 70 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85177100 |
