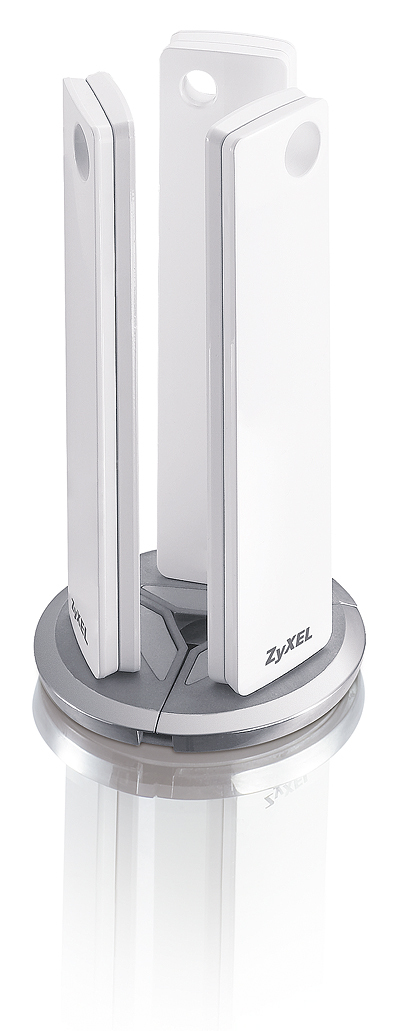

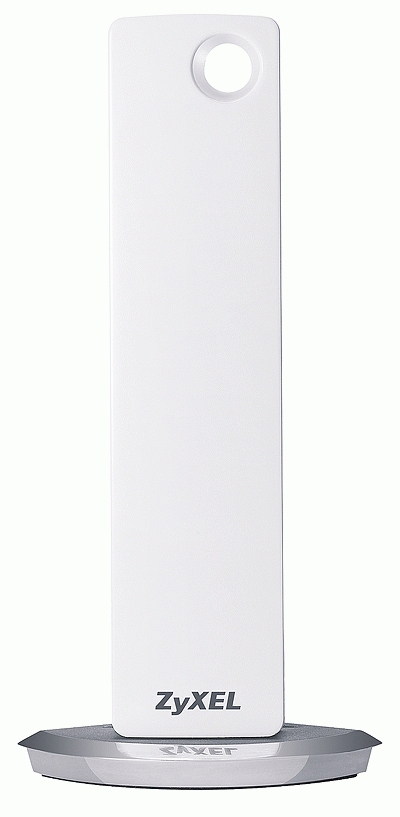

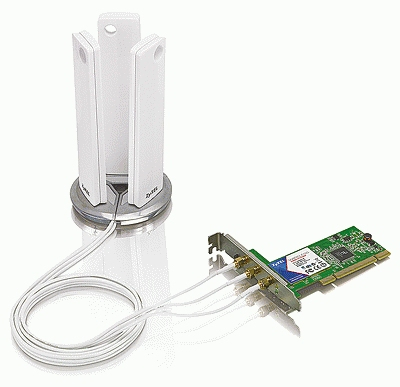

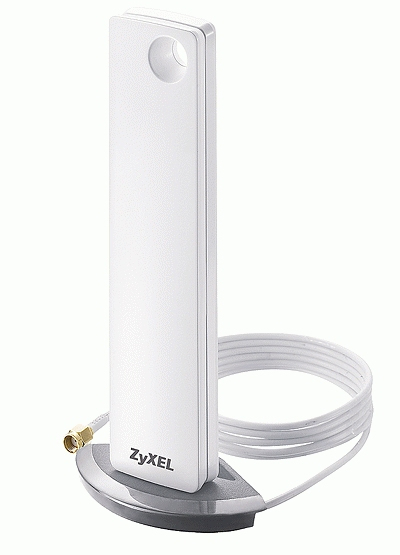

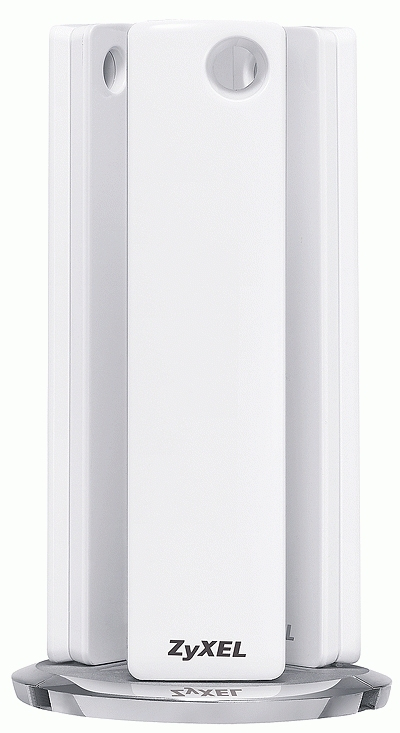

Zyxel ANT1106 network antenna 6 dBi
Model ANT1106Part no. 91005225001B
14 specifications
- Weight78 g
- Antenna gain level (max)6 dBi
- Voltage Standing Wave Ratio (VSWR)2.0:1
- Operating temperature (T-T)0 - 50 °C
- Width166 mm
Overview
- Weight
- 78 g
- Antenna gain level (max)
- 6 dBi
- Voltage Standing Wave Ratio (VSWR)
- 2.0:1
- Operating temperature (T-T)
- 0 - 50 °C
- Width
- 166 mm
- Brand
- Zyxel
- Category
- Network Antenna
- Model
- ANT1106
- Part number
- 91005225001B
- Also known as
- Zyxel ANT1106 network antenna 6 dBi
Specifications
14 specifications in 4 groups
Performance
| Specification | Value |
|---|---|
| Antenna gain level (max) | 6 dBi |
| Frequency band | 2.4 - 2.5 GHz |
| Horizontal beam width | 360° |
| Vertical beam width | 25° |
Features
| Specification | Value |
|---|---|
| Voltage Standing Wave Ratio (VSWR) | 2.0:1 |
| Cable length | 1.6 m |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 20 - 95% |
| Storage relative humidity (H-H) | 20 - 95% |
| Storage temperature (T-T) | -20 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 166 mm |
| Depth | 40 mm |
| Height | 15 mm |
| Weight | 78 g |
