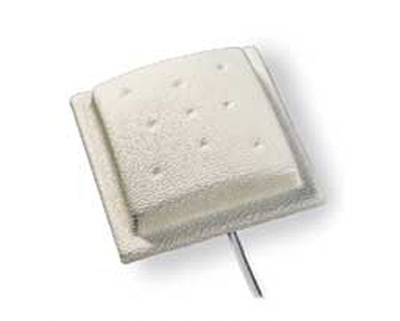

Motorola ML-5299-PTA1-01R network antenna Omni-directional antenna RP-SMA 2 dBi
Model ML-5299-PTA1-01R
18 specifications
- Weight68 g
- ColourWhite
- Antenna gain level (max)2 dBi
- Antenna typeOmni-directional antenna
- Width56 mm
Overview
- Weight
- 68 g
- Colour
- White
- Antenna gain level (max)
- 2 dBi
- Antenna type
- Omni-directional antenna
- Width
- 56 mm
- Brand
- Zebra
- Category
- Network Antenna
- Model
- ML-5299-PTA1-01R
- Part number
- ML-5299-PTA1-01R
- Also known as
- Motorola ML-5299-PTA1-01R network antenna Omni-directional antenna RP-SMA 2 dBi
Specifications
18 specifications in 4 groups
Performance
| Specification | Value |
|---|---|
| Antenna gain level (max) | 2 dBi |
| Frequency band | 5 GHz |
| Networking standards | IEEE 802.11a |
| Horizontal beam width (5 GHz) | 45° |
| Vertical beam width (5 GHz) | 45° |
Features
| Specification | Value |
|---|---|
| Antenna type | Omni-directional antenna |
| Antenna connector type | RP-SMA |
| Connector gender | Female |
| Product colour | White |
| Cable length | 0.9 m |
| Mounting | Ceiling |
| Purpose | Indoor |
| Compatible products | AP-4131 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 56 mm |
| Depth | 56 mm |
| Height | 50 mm |
| Weight | 68 g |
Other features
| Specification | Value |
|---|---|
| Frequency range | 5150 - 5875 Mhz |
