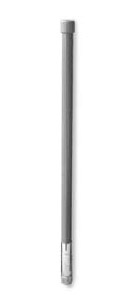

Motorola ML-5299-FHPA10-01R network antenna Omni-directional antenna N-type 10 dBi
Model ML-5299-FHPA10-01R
15 specifications
- Weight37 g
- ColourBlack
- Antenna gain level (max)10 dBi
- Antenna typeOmni-directional antenna
Overview
- Weight
- 37 g
- Colour
- Black
- Antenna gain level (max)
- 10 dBi
- Antenna type
- Omni-directional antenna
- Brand
- Zebra
- Category
- Network Antenna
- Model
- ML-5299-FHPA10-01R
- Part number
- ML-5299-FHPA10-01R
- Also known as
- Motorola ML-5299-FHPA10-01R network antenna Omni-directional antenna N-type 10 dBi
Specifications
15 specifications in 3 groups
Performance
| Specification | Value |
|---|---|
| Antenna gain level (max) | 10 dBi |
| Frequency band | 5 GHz |
| Networking standards | IEEE 802.11a |
| Horizontal beam width (5 GHz) | 360° |
| Vertical beam width (5 GHz) | 13° |
Features
| Specification | Value |
|---|---|
| Antenna type | Omni-directional antenna |
| Antenna connector type | N-type |
| Connector gender | Male |
| Polarization | Vertical polarization |
| Voltage Standing Wave Ratio (VSWR) | 2:1 |
| Product colour | Black |
| Power handling | 5 W |
| Purpose | Indoor |
| Compatible products | AP-5181. |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 37 g |
