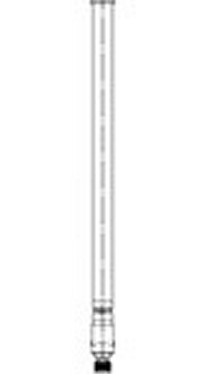

Motorola ML-2499-HPA8-01 network antenna Omni-directional antenna N-type 8 dBi
Model ML-2499-HPA8-01
10 specifications
- Weight204 g
- Antenna gain level (max)8 dBi
- Antenna typeOmni-directional antenna
Overview
- Weight
- 204 g
- Antenna gain level (max)
- 8 dBi
- Antenna type
- Omni-directional antenna
- Brand
- Zebra
- Category
- Network Antenna
- Model
- ML-2499-HPA8-01
- Part number
- ML-2499-HPA8-01
- Also known as
- Motorola ML-2499-HPA8-01 network antenna Omni-directional antenna N-type 8 dBi
Specifications
10 specifications in 3 groups
Performance
| Specification | Value |
|---|---|
| Antenna gain level (max) | 8 dBi |
| Frequency band | 2.4 - 2.5 GHz |
| Horizontal beam width (2.4 GHz) | 360° |
| Vertical beam width (2.4 GHz) | 14° |
Features
| Specification | Value |
|---|---|
| Antenna type | Omni-directional antenna |
| Antenna connector type | N-type |
| Connector gender | Male |
| Polarization | Vertical polarization |
| Purpose | Outdoor |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 204 g |
